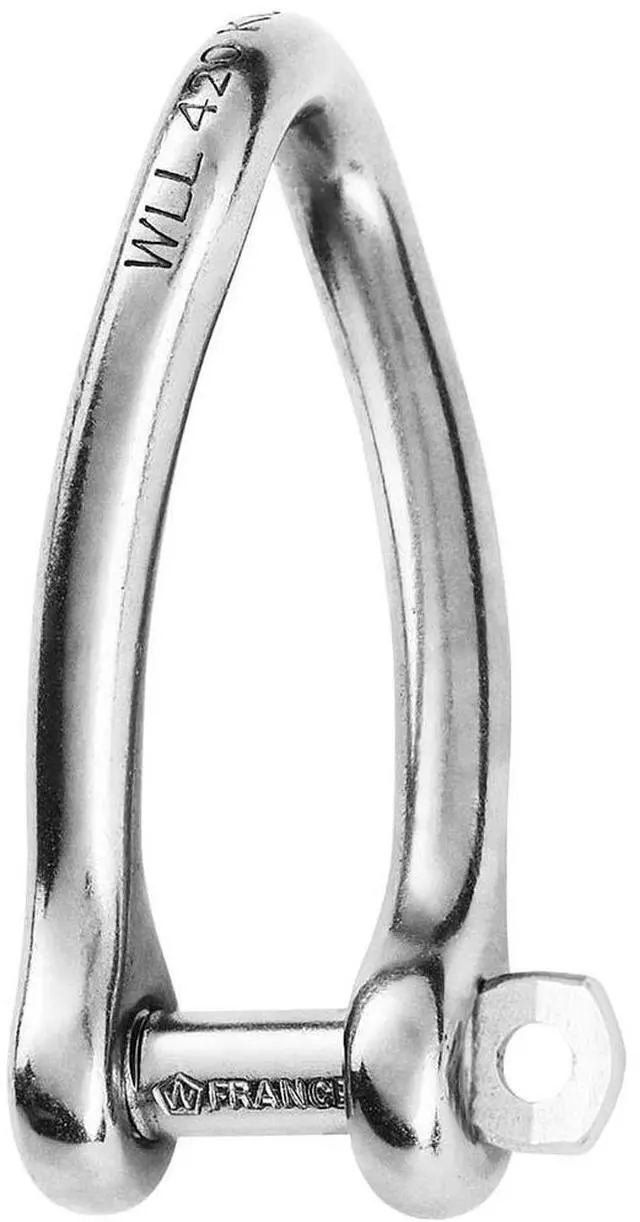

Wichard Captive Pin Twisted Shackle - Diameter 6mm - 1/4"
- Captive Pin Twisted Shackle - Diameter 6mm - 1/4"Features:Captive pin twisted shackle forged in grade 316L stainless steelThe pin is connected to the body at all times even when openedThe pin is locked into one of the indentationsNo risks of loosening due to vibrationsOutstanding working and breaking loadsSingle-handed operation for more safetyApplications:Perfect for application where a 90° angle twist setup is requiredOften used to attach an unarticulated part (block on a rail) or on purchasesSpecifications:Materials 316 stainless steel gradeWorking load (lb) 1320Breaking load (lb) 4620Weight (lb) 0.086Dimensions (see 2nd image):A (inch) 1-47/64"B (inch) 15/32"C (inch) 9/32"D (inch) 35/64"D diameter (inch) 15/64"E (inch) 15/64"F (inch) 2-23/64"G (inch) 1-7/32"
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Captive Pin Twisted Shackle -
Diameter 6mm - 1/4"Features: Captive pin twisted shackle forged in grade 316L stainless steelThe pin is connected to the body at all times even when openedThe pin is locked into one of the indentationsNo risks of loosening due to vibrationsOutstanding working and breaking loadsSingle-handed operation for more safetyApplications: Perfect for application where a 90° angle twist setup is requiredOften used to attach an unarticulated part (block on a rail) or on purchasesSpecifications: Materials 316 stainless steel gradeWorking load (lb) 1320Breaking load (lb) 4620Weight (lb) 0.086D imensions (see 2nd image): A (inch) 1-47/64"B (inch) 15/32"C (inch) 9/32"D (inch) 35/64"D diameter (inch) 15/64"E (inch) 15/64"F (inch) 2-23/64"G (inch) 1-7/32"
Diameter 6mm - 1/4"Features: Captive pin twisted shackle forged in grade 316L stainless steelThe pin is connected to the body at all times even when openedThe pin is locked into one of the indentationsNo risks of loosening due to vibrationsOutstanding working and breaking loadsSingle-handed operation for more safetyApplications: Perfect for application where a 90° angle twist setup is requiredOften used to attach an unarticulated part (block on a rail) or on purchasesSpecifications: Materials 316 stainless steel gradeWorking load (lb) 1320Breaking load (lb) 4620Weight (lb) 0.086D imensions (see 2nd image): A (inch) 1-47/64"B (inch) 15/32"C (inch) 9/32"D (inch) 35/64"D diameter (inch) 15/64"E (inch) 15/64"F (inch) 2-23/64"G (inch) 1-7/32"
