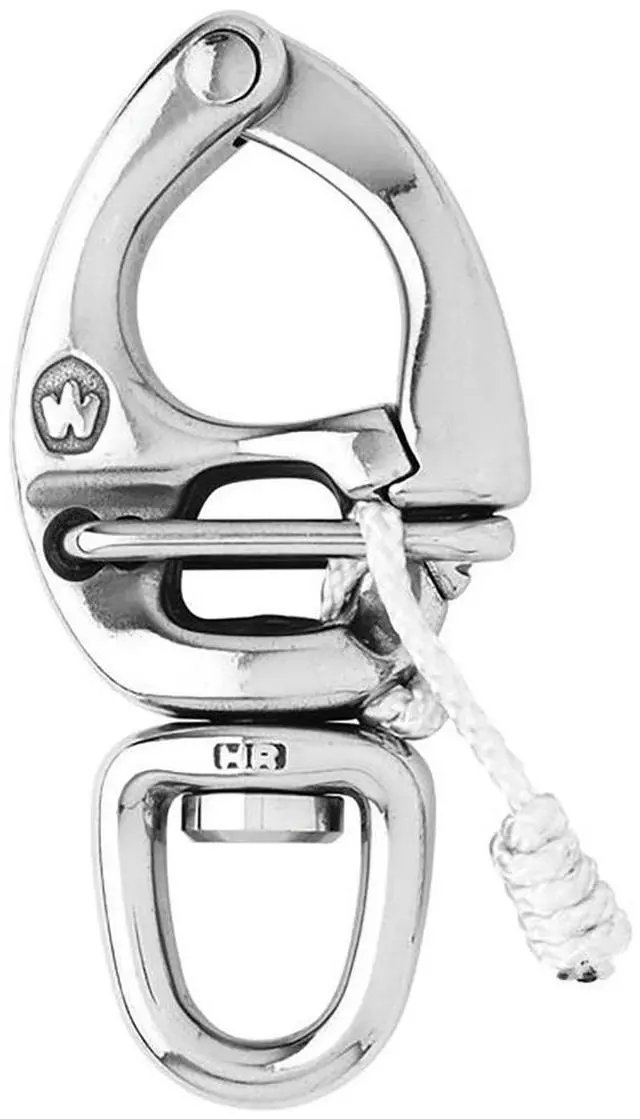

Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"
- HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"Features:HR forged (17.4 PH) quick-release snap shackle with swivel eyeThe opening is made by pulling the lanyardPerfect to attach one sheet or halyardOutstanding working and breaking loadsFree rotation of the snap shackle thanks to the swivelApplications:For spinnaker operationsPerfect for spinnaker sheets and halyardsSpecifications:Materials: HR 17.4 PH stainless steel gradeWorking load: (lb) 7050 / (kg) 3200 Breaking load: (lb) 13880 / (kg) 6300 Weight: (lb) 0.818 / (g) 371 Dimensions:A: (inch) 1 3/16" / (mm) 30 B: (inch) 25/32" / (mm) 20 Length: (inch) 5 1/8" / (mm) 130 Caption:Working Load (WL): For nautical applicationsWorking Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5High Resistance (HR)*Sold as an Individual
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HR Quick Release Snap Shackle With Swivel Eye - 130mm
Length - 5-1/8"Features: HR forged ( 17.4 PH) quick-release snap shackle with swivel eyeThe opening is made by pulling the lanyardPerfect to attach one sheet or halyardOutstanding working and breaking loadsFree rotation of the snap shackle thanks to the swivelApplications: For spinnaker operationsPerfect for spinnaker sheets and halyardsSpecifications:
Materials: HR 17.4
PH stainless steel gradeWorking load: (lb) 7050 / (kg) 3200
Breaking load: (lb) 13880 / (kg) 6300
Weight: (lb) 0.818 / (g) 371
Dimensions:
A: (inch) 1 3/16" / (mm) 30
B: (inch) 25/32" / (mm) 20
Length: (inch) 5 1/8" / (mm) 130
Caption: Working
Load (WL): For nautical applicationsWorking
Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5High Resistance (HR) *Sold as an Individual
Length - 5-1/8"Features: HR forged ( 17.4 PH) quick-release snap shackle with swivel eyeThe opening is made by pulling the lanyardPerfect to attach one sheet or halyardOutstanding working and breaking loadsFree rotation of the snap shackle thanks to the swivelApplications: For spinnaker operationsPerfect for spinnaker sheets and halyardsSpecifications:
Materials: HR 17.4
PH stainless steel gradeWorking load: (lb) 7050 / (kg) 3200
Breaking load: (lb) 13880 / (kg) 6300
Weight: (lb) 0.818 / (g) 371
Dimensions:
A: (inch) 1 3/16" / (mm) 30
B: (inch) 25/32" / (mm) 20
Length: (inch) 5 1/8" / (mm) 130
Caption: Working
Load (WL): For nautical applicationsWorking
Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5High Resistance (HR) *Sold as an Individual
