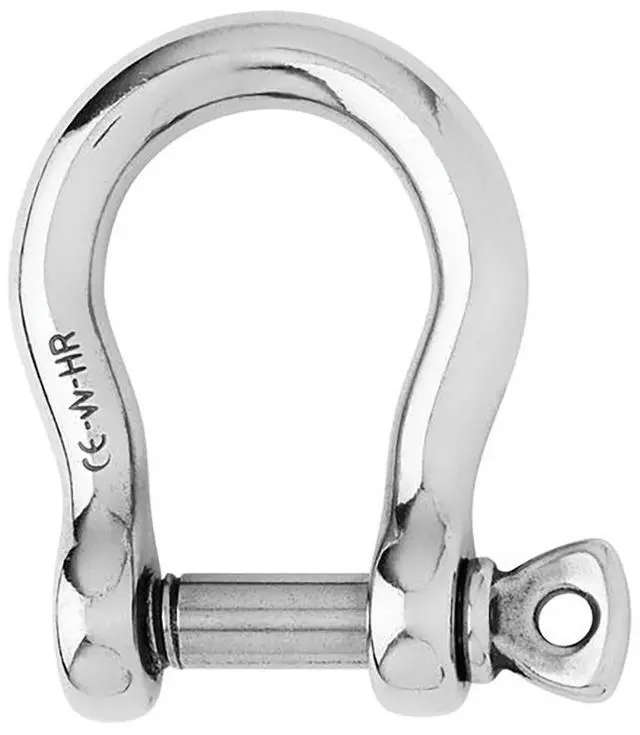

Wichard HR Bow Shackle - 8mm Pin Diameter

HR Bow Shackle - 8mm
Pin Diameter Features: Forged bow shackle in HR stainless steel grade (17, 4 PH)Outstanding working and breaking loadA HR shackle can be up to 60% more resistant than a shackle in 316L stainless steelWLL: only for industrial applications (lifting i.
e…
)CE markingApplications: Applications requesting high loadsTo be used when ample room is requiredPossibility to attach several lines or cablesDo not use for mooring applicationsSpecifications:
Materials: HR 17.4
PH stainless steel gradeWorking load: (lb) 3880 / (kg) 1760
WLL: (lb) 1800 / (kg) 820
Breaking load: (lb) 9030 / (kg) 4100
Weight: (lb) 0.15 / (g) 68
Dimensions:
A: (inch) 1 29/64" / (mm) 37
B: (inch) 5/8" / (mm) 16
C: (inch) 5/16" / (mm) 8
D: (inch) 5/8" / (mm) 16
D diameter: (inch) 25/64" / (mm) 10
E: (inch) 9/32" / (mm) 7
M: (inch) 1 21/32" / (mm) 42
Caption: Working
Load (WL): For nautical applicationsWorking
Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5High Resistance (HR) *Sold as an Individual
