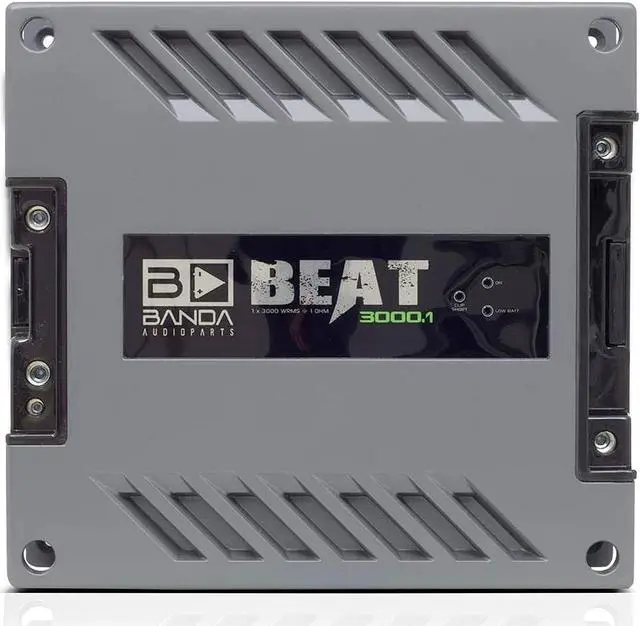

High Power Vehicle Audio Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm
- Class D vehicle audio amplifier Total Power 14.4 @ 1 Ohm: 3900 WRMS Total Power 14.4 @ 2 Ohms: 2900 WRMS Total Power 12.6 @ 1 Ohm: 3000 WRMS Total Power 12.6 @ 2 Ohms: 2300 WRMS Efficiency @ 2 Ohms: 78% Efficiency @ 1 Ohm: 71% Input Voltage: 9 to 15V Input Impedance: 100K Ohms THD+Noise: less than 1% Input Sensitivity: 110mV to 4V SNR: 80dB Frequency Response: 20 to 20KHz (-3dBs) HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley LPF (Crossover): 80 to 20kHz @ 12dB/octave Linkwitz-Riley Recommended Fuse: 150 A Current at Rest: 1.5 A Average Current Draw (Sinusoidal): 360 A Average Current Draw (Music): 180 A Power Wire Gauge (min. Recommended): 21mm / 4 AWG Speaker Wire Gauge (min. Recommended): 2 x 4mm / 2 x 11 AWG Weight (Lb): 7.6 Height (in): 2.2 Width (in): 8.4 Depth (in): 9.7
+
+
Overview
Reviews
Class D vehicle audio amplifier. Total Power 14.4 @ 1
Ohm: 3900 WRMS. Total Power 14.4 @ 2
Ohms: 2900 WRMS. Total Power 12.6 @ 1
Ohm: 3000 WRMS. Total Power 12.6 @ 2
Ohms: 2300 WRMS.
Efficiency @ 2 Ohms: 78%.
Efficiency @ 1 Ohm: 71%.
Input Voltage: 9 to 15V.
Input Impedance: 100K Ohms.
THD+Noise: less than 1%.
Input Sensitivity: 110mV to 4V.
SNR: 80dB.
Frequency Response: 20 to 20KHz (-3dBs).
HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley.
LPF (Crossover): 80 to 20kHz @ 12dB/octave Linkwitz-Riley.
Recommended Fuse: 150 A.
Current at Rest: 1.5 A.
Average Current Draw (Sinusoidal): 360 A.
Average Current Draw (Music): 180 A. Power Wire Gauge (min.
Recommended): 21mm / 4 AWG. Speaker Wire Gauge (min.
Recommended): 2 x 4mm / 2 x 11 AWG.
Weight (Lb): 7.6
Height (in): 2.2
Width (in): 8.4
Depth (in): 9.7
Ohm: 3900 WRMS. Total Power 14.4 @ 2
Ohms: 2900 WRMS. Total Power 12.6 @ 1
Ohm: 3000 WRMS. Total Power 12.6 @ 2
Ohms: 2300 WRMS.
Efficiency @ 2 Ohms: 78%.
Efficiency @ 1 Ohm: 71%.
Input Voltage: 9 to 15V.
Input Impedance: 100K Ohms.
THD+Noise: less than 1%.
Input Sensitivity: 110mV to 4V.
SNR: 80dB.
Frequency Response: 20 to 20KHz (-3dBs).
HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley.
LPF (Crossover): 80 to 20kHz @ 12dB/octave Linkwitz-Riley.
Recommended Fuse: 150 A.
Current at Rest: 1.5 A.
Average Current Draw (Sinusoidal): 360 A.
Average Current Draw (Music): 180 A. Power Wire Gauge (min.
Recommended): 21mm / 4 AWG. Speaker Wire Gauge (min.
Recommended): 2 x 4mm / 2 x 11 AWG.
Weight (Lb): 7.6
Height (in): 2.2
Width (in): 8.4
Depth (in): 9.7
