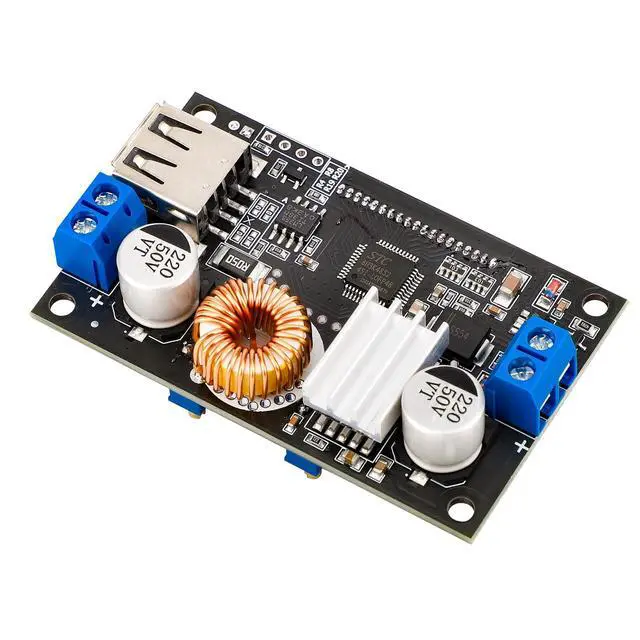

DC Buck Converter Adjustable Voltage Regulator 12V 6V-32V to 1.5-32V 5A, LCD Screen Step Down Converter with USB Port and Protective Case
- PARAMETER: Input voltage range DC 6V-32V; Output voltage DC 1.5V-32V; Maximum output current 5A, recommended use within 4.5A; Maximum output power 75W, recommended use within 50W. GENERAL USE: Operates as a standard step-down module with over-current protection; functions as a constant current LED driver module; suitable for DIY solar power controller projects, etc. DISPLAY: Large, clear digital LCD screen shows voltage and current values at the same time. FEATURES: Constant current/voltage mode; voltage calibration and current calibration; USB port; protective housing; short-circuit protection; over-temperature protection; input reverse connection protection. NOTE: 1. Output voltage is preset to approximately 20V. If your input voltage is lower, please adjust the potentiometer anticlockwise for 10 or more rotations until the voltage changes. 2. The housing is shipped unassembled to prevent damage during shipping and requires manual installation
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
PARAMETER: Input voltage range DC 6V-32V; Output voltage DC 1.5V -32V; Maximum output current 5A, recommended use within 4.5A; Maximum output power 75W, recommended use within 50W.
GENERAL USE: Operates as a standard step-down module with over-current protection; functions as a constant current LED driver module; suitable for DIY solar power controller projects, etc.
DISPLAY: Large, clear digital LCD screen shows voltage and current values at the same time.
FEATURES: Constant current/voltage mode; voltage calibration and current calibration; USB port; protective housing; short-circuit protection; over-temperature protection; input reverse connection protection.
NOTE: 1. Output voltage is preset to approximately 20V. If your input voltage is lower, please adjust the potentiometer anticlockwise for 10 or more rotations until the voltage changes. 2. The housing is shipped unassembled to prevent damage during shipping and requires manual installation
GENERAL USE: Operates as a standard step-down module with over-current protection; functions as a constant current LED driver module; suitable for DIY solar power controller projects, etc.
DISPLAY: Large, clear digital LCD screen shows voltage and current values at the same time.
FEATURES: Constant current/voltage mode; voltage calibration and current calibration; USB port; protective housing; short-circuit protection; over-temperature protection; input reverse connection protection.
NOTE: 1. Output voltage is preset to approximately 20V. If your input voltage is lower, please adjust the potentiometer anticlockwise for 10 or more rotations until the voltage changes. 2. The housing is shipped unassembled to prevent damage during shipping and requires manual installation
