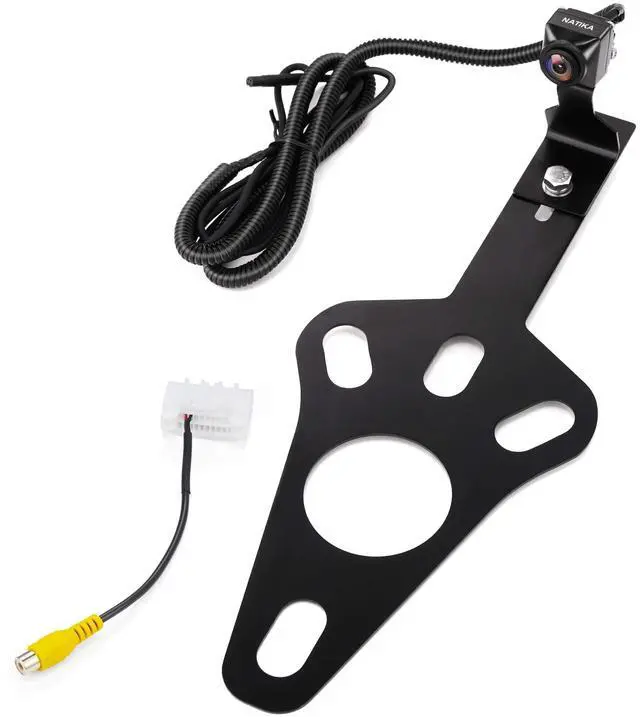

Backup Camera for 2007-2018 Jeep Wrangler JK: Starlight Night Vision 720P AHD and TVI Waterproof HD Spare Tire Mount Backup Reverse Rear View Camera for Jeep Wrangler JK 2007-2018

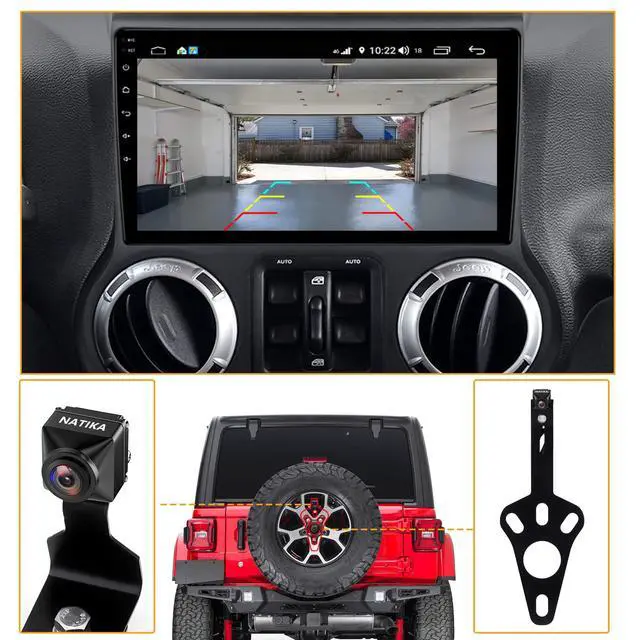

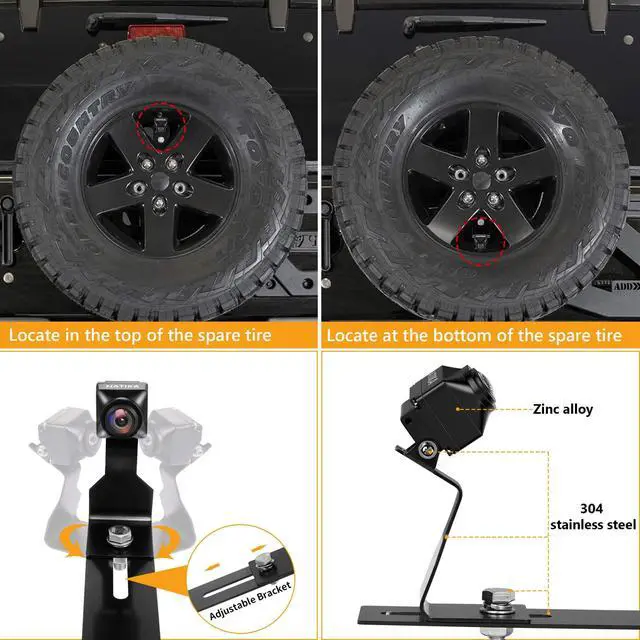

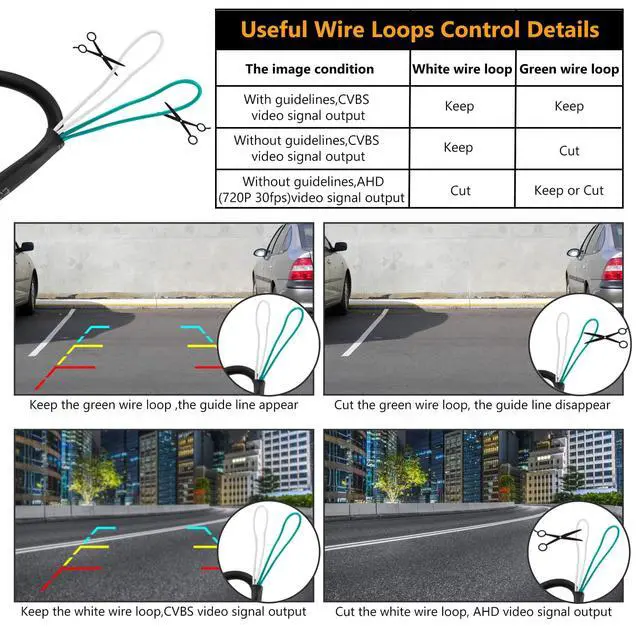

Backup camera for the 2007-2018 Jeep Wrangler JK (NOT JL). This unit contains an adapter for connecting the backup camera to a factory display radio, but requires dealer or self-reprogramming. It is not compatible with suction-type dash cams and mirror dash cams. The reverse camera features a 6-piece F 1.8 large aperture optical system and a 135-degree wide-angle lens, providing a clear, undistorted view for safer reversing and parking. It supports three video signal outputs: CVBS (default), AHD, and TVI (ideal for Android stereos). To select AHD format (720P, 30fps), cut the purple wire loop. To select TVI format (720P, 30fps), cut the blue wire loop. It offers starlight-level night vision ( 0.005L ux) for superior low-light performance in dark conditions. The housing is constructed from zinc alloy with 2 heavy-duty brackets, and all screws are authentic 304 stainless steel to resist corrosion and deformation. Four multifunctional switching wire loops are integrated: cut the white loop for front view, cut the green loop to remove guidelines, and cut the purple or blue loops to select AHD or TVI video signal output. Cutting the purple wire loop selects AHD format for specific ATOTO stereos (F7 Series, S8 series, and A6 KarLink version). It is not compatible with the ATOTO A6Y Series Android stereo or SA102 Starter. Cutting the blue wire loop enables TRUE 720P HD display on compatible

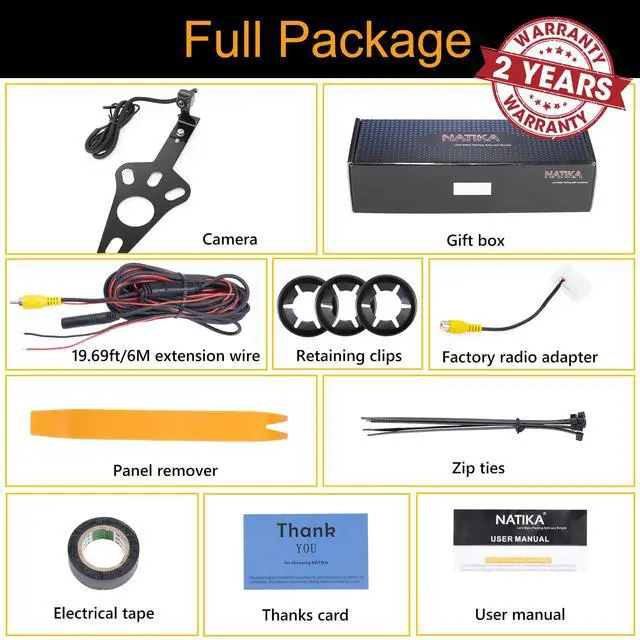

Kenwood receivers: DNR1007XR, DNR1008RVS, DMX1057XR, DMX1037S, DNX997XR, DDX9907XR, and DMX958XR. This backup camera for the 2007-2018 Jeep Wrangler JK is not compatible with suction-type dash cams, mirror dash cams, or inexpensive CarPlay devices due to different connectors or internal pin definitions. If connecting to a GPS navigator, a separate RCA to 2.5 mm adapter is needed for installation. The camera utilizes a 4-step waterproofing process (PCB-Coating, Sealing adhesive, Filled potting, and a specially-designed structure) for excellent waterproof performance (IP69K rated). A wire harness is included for complete installation if your 2007-2018 Jeep Wrangler JK has a factory radio
