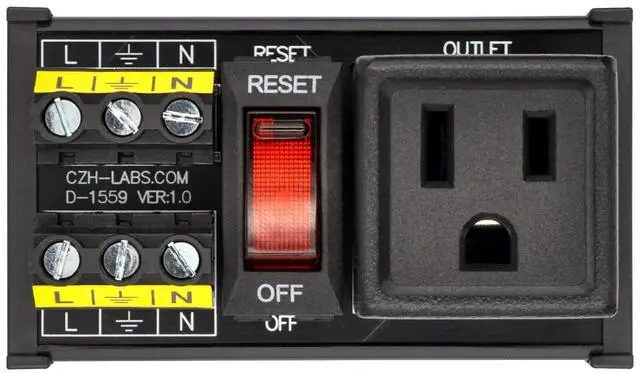

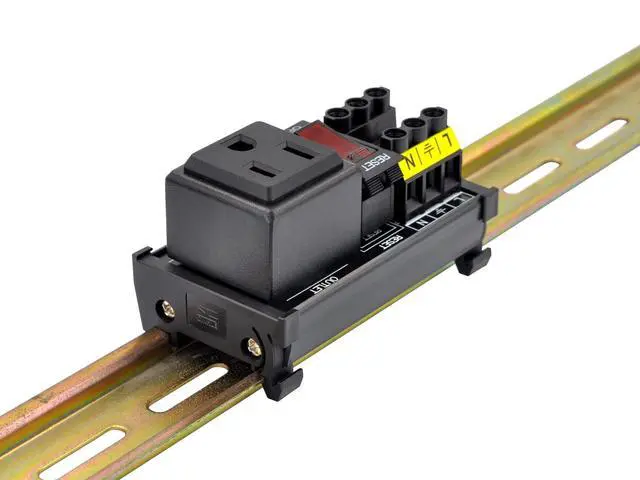

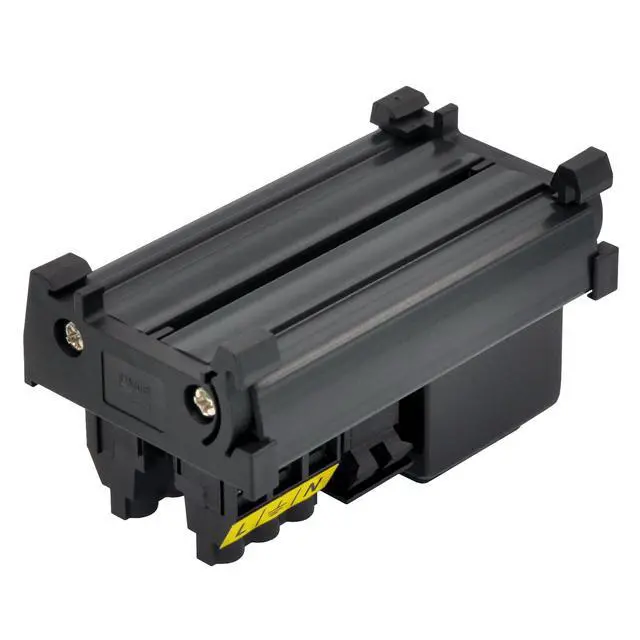

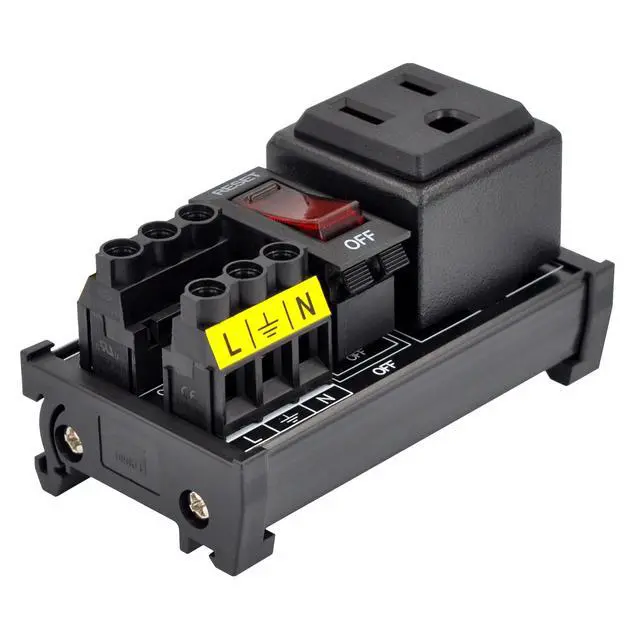

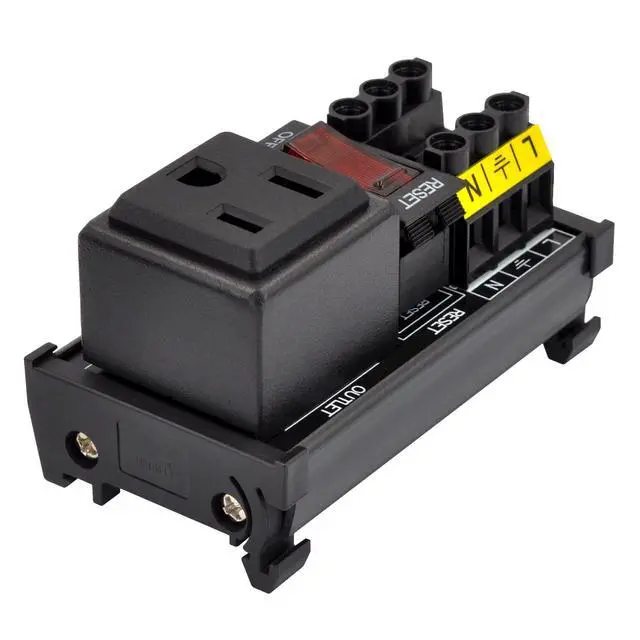

DIN Rail Mount AC 120V NEMA 5-15R Receptacle Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector (1 Outlet)
- Outlet: 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle designed to provide stable performance. Operating voltage: AC 120V. Receptacle rated current: 15 Amps. Resettable rocker switch thermal circuit breaker overload protector rated at 15 Amps, featuring a built-in red indicator light and manual control for output ON / OFF. Input terminals with 7.62mm/0.3" pitch, rated for a maximum of 30 Amps per position, accepting wire sizes from 26 to 10 AWG, with an 8mm stripping length and Metric M3 slotted screws. Supports power supply expansion for connecting to additional modules. DIN rail mount carrier compatible with 35mm width rails. Constructed from high-quality fireproof nylon material. UL and CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL, CE, and CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Outlet: 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle designed to provide stable performance.
Operating voltage: AC 120V.
Receptacle rated current: 15 Amps. Resettable rocker switch thermal circuit breaker overload protector rated at 15 Amps, featuring a built-in red indicator light and manual control for output ON / OFF. Input terminals with 7.62 mm/ 0.3" pitch, rated for a maximum of 30 Amps per position, accepting wire sizes from 26 to 10 AWG, with an 8mm stripping length and Metric M3 slotted screws. Supports power supply expansion for connecting to additional modules. DIN rail mount carrier compatible with 35mm width rails. Constructed from high-quality fireproof nylon material. UL and CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL, CE, and CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker
Operating voltage: AC 120V.
Receptacle rated current: 15 Amps. Resettable rocker switch thermal circuit breaker overload protector rated at 15 Amps, featuring a built-in red indicator light and manual control for output ON / OFF. Input terminals with 7.62 mm/ 0.3" pitch, rated for a maximum of 30 Amps per position, accepting wire sizes from 26 to 10 AWG, with an 8mm stripping length and Metric M3 slotted screws. Supports power supply expansion for connecting to additional modules. DIN rail mount carrier compatible with 35mm width rails. Constructed from high-quality fireproof nylon material. UL and CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL, CE, and CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker
