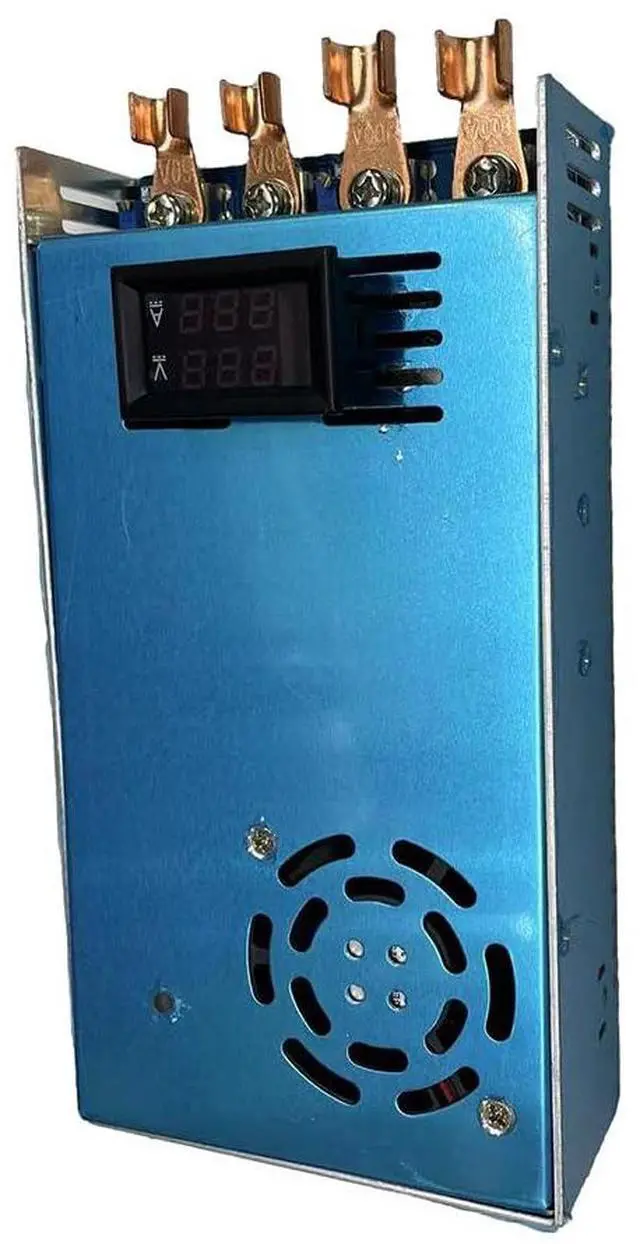

12V-60V to 15V-80V 100A 2000W DC Boost Power Supply Output Constant Voltage and Constant Current Adjustable Charging Module

Input voltage: DC12V-60V. Do not use an input voltage below 12V. Full load output exceeds 60V. When the difference between input and output voltage is significant, the output power should be suitably reduced. The larger the voltage difference, the lower the power supply efficiency and the greater the heat generation. Maximum input current must not exceed 100A, and power must not exceed 2000W.
Output voltage: DC15V-80V. Maximum output current must not exceed 50A, and power must not exceed 1850W.

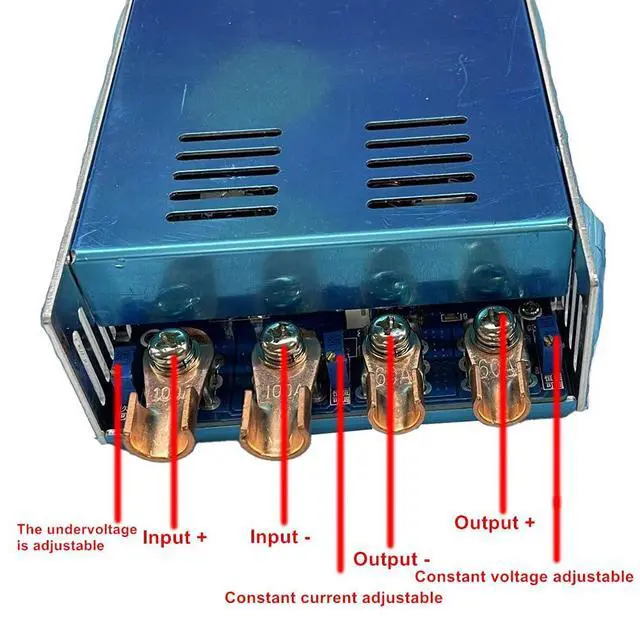

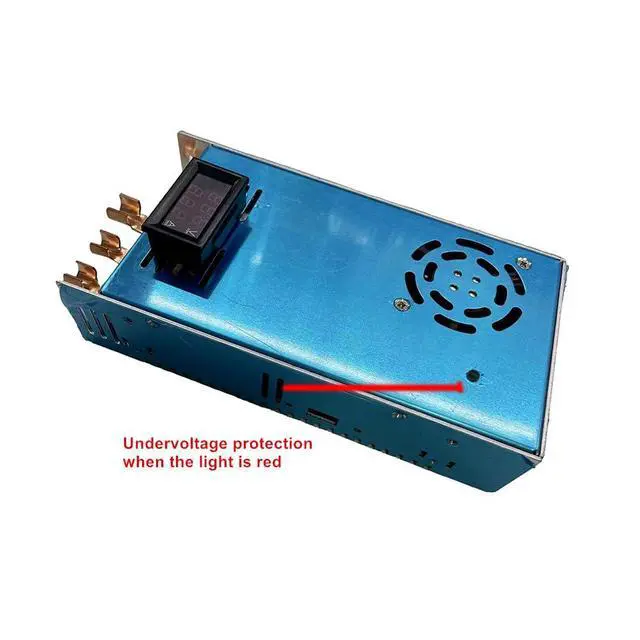

Undervoltage adjustable range: DC 10.5V -50V (turn clockwise to decrease, counterclockwise to increase). First set the undervoltage to the minimum, then adjust the input voltage to the desired undervoltage protection value, and then slowly turn the adjustable value counterclockwise to increase it. When the undervoltage indicator lights up, turn it back one or two turns, and then reconnect the power supply. The power supply includes intelligent temperature-controlled fans. When the power supply temperature reaches 55-60 degrees Celsius, the fan activates automatically. When the power supply temperature drops to 50 degrees Celsius, the fan turns off automatically. When constant current limiting is needed for the module output, the input and output ground wires must be connected separately and cannot share the same wire. When using switching power supplies or other secondary power supplies, ensure that the power supply rating is greater than twice the module's power. The output blue indicator illuminates only when the power supply is boosting. When the power supply has overcurrent or undervoltage protection, the output still has a voltage close to the input value, and the protection only means the power supply does not boost the voltage
