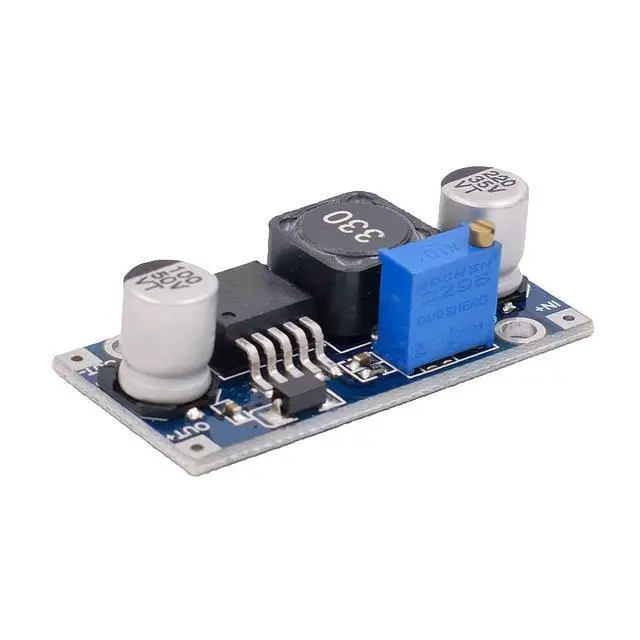

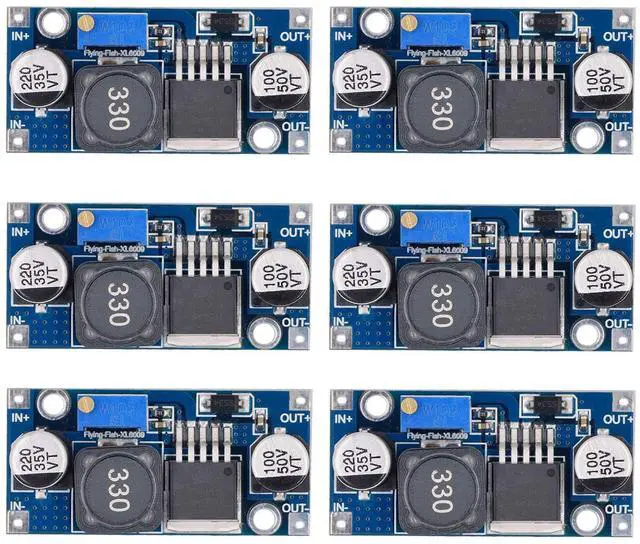

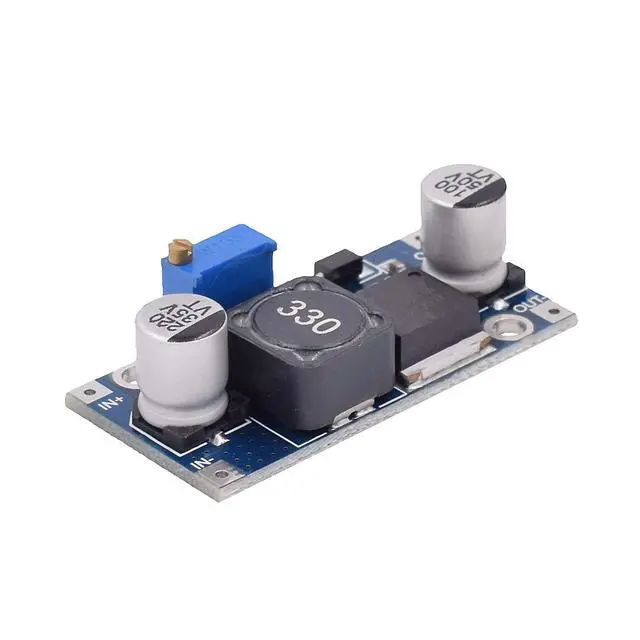

XL6009 DC to DC Boost Converter 3.0-30V to 5-35V Step-up Transformer Power Module, Pack of 6
- The XL6009 module is a non-isolated step-up voltage converter featuring adjustable output voltage and new generation (XL6009E1 core chip) high-frequency (400KHZ) switching technique, with performance much better than LM2577. Built for various practical applications that need a boost voltage, such as DIY an output adjustable mobile power, temporarily setting up power supply outdoors, or charging your electronic devices. Input Voltage: DC 3V to 30V (optimum working voltage range is 5V to 30V). Output Voltage: DC 5V to 35V (continuously adjustable), maximum output current is 4A. Ultra-compact power module with simple operation. Using a mini screwdriver to step up/down output voltage by turning the slotted screw on the blue trimpot, and monitor voltage with a multimeter to achieve the expected voltage; clockwise reduces voltage and counterclockwise increases voltage. (1 circle means +/- 1V)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The XL6009 module is a non-isolated step-up voltage converter featuring adjustable output voltage and new generation (XL6009E1 core chip) high-frequency (400KHZ) switching technique, with performance much better than LM2577. Built for various practical applications that need a boost voltage, such as DIY an output adjustable mobile power, temporarily setting up power supply outdoors, or charging your electronic devices.

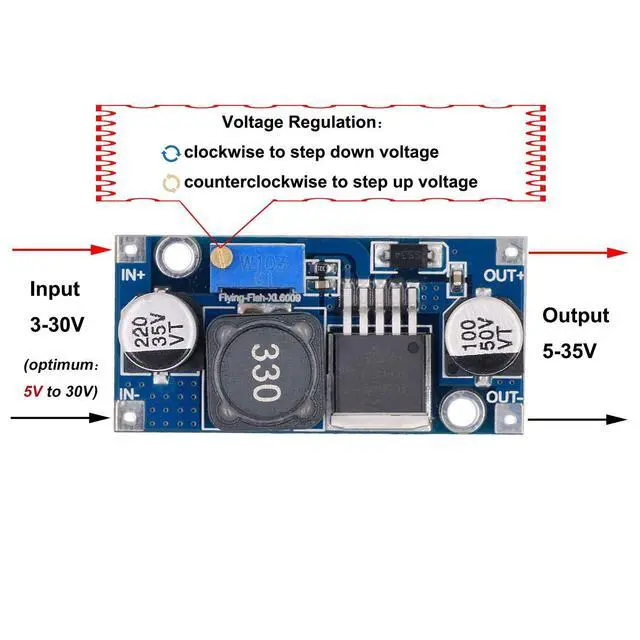

Input Voltage: DC 3V to 30V (optimum working voltage range is 5V to 30V).
Output Voltage: DC 5V to 35V (continuously adjustable), maximum output current is 4A. Ultra-compact power module with simple operation. Using a mini screwdriver to step up/down output voltage by turning the slotted screw on the blue trimpot, and monitor voltage with a multimeter to achieve the expected voltage; clockwise reduces voltage and counterclockwise increases voltage. (1 circle means +/- 1V)
Input Voltage: DC 3V to 30V (optimum working voltage range is 5V to 30V).
Output Voltage: DC 5V to 35V (continuously adjustable), maximum output current is 4A. Ultra-compact power module with simple operation. Using a mini screwdriver to step up/down output voltage by turning the slotted screw on the blue trimpot, and monitor voltage with a multimeter to achieve the expected voltage; clockwise reduces voltage and counterclockwise increases voltage. (1 circle means +/- 1V)
