Wired Banana Jack and Power Pole 10 Outlet DC Power Distribution Strip Box
- F-1048W DC power distribution outlet strip is a heavy-duty power distribution strip. It includes 6x (+ and -) position power pole and 4x (+ and -) position banana jack output. Operating voltage: Maximum AC/DC 60V. Maximum input/output current for each position: 30 Amp. Maximum total input/output current: 50 Amp. No-load current: 0mA. Red(+) and Black(-) colors DC input cable, length 1.5m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals. Output: 6 positions power pole socket, compatible with 15A, 30A or 45A power pole connectors. 4 positions high current brass (nickel-plated) standard banana jacks, support standard banana plugs, 1/4 (6.4mm) ring / spade terminals. (Note: the item does not include power pole plug, banana plug, 1/4 ring / spade terminals). High quality aluminum enclosure, material thickness 1.5mm / 0.06". Support screw mount, wall mount, and can also be placed on the desktop. When used with the CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
F-1048W DC power distribution outlet strip is a heavy-duty power distribution strip. It includes 6x (+ and -) position power pole and 4x (+ and -) position banana jack output.
Operating voltage: Maximum AC/DC 60V. Maximum input/output current for each position: 30 Amp.
Maximum total input/output current: 50 Amp.
No-load current: 0mA. Red(+) and Black(-) colors DC input cable, length 1.5 m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 ( 8.4 mm) ring terminals.

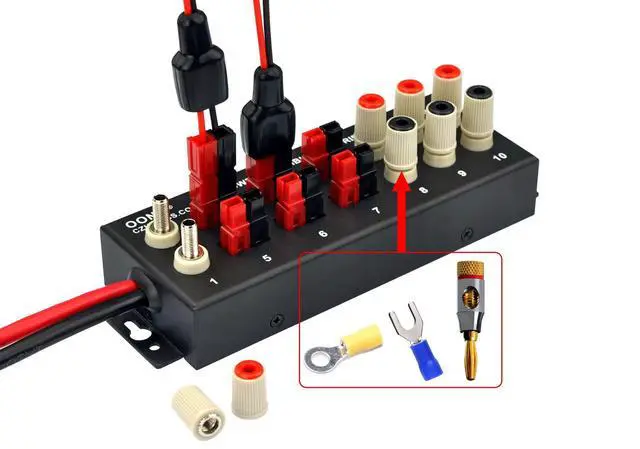

Output: 6 positions power pole socket, compatible with 15A, 30A or 45A power pole connectors. 4 positions high current brass (nickel-plated) standard banana jacks, support standard banana plugs, 1/4 ( 6.4 mm) ring / spade terminals.
(Note: the item does not include power pole plug, banana plug, 1/4 ring / spade terminals). High quality aluminum enclosure, material thickness 1.5 mm / 0.06". Support screw mount, wall mount, and can also be placed on the desktop. When used with the CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail
Operating voltage: Maximum AC/DC 60V. Maximum input/output current for each position: 30 Amp.
Maximum total input/output current: 50 Amp.
No-load current: 0mA. Red(+) and Black(-) colors DC input cable, length 1.5 m / 5ft. Conductor section diameter 10mm square (approximately equivalent to 7AWG). 5/16 ( 8.4 mm) ring terminals.
Output: 6 positions power pole socket, compatible with 15A, 30A or 45A power pole connectors. 4 positions high current brass (nickel-plated) standard banana jacks, support standard banana plugs, 1/4 ( 6.4 mm) ring / spade terminals.
(Note: the item does not include power pole plug, banana plug, 1/4 ring / spade terminals). High quality aluminum enclosure, material thickness 1.5 mm / 0.06". Support screw mount, wall mount, and can also be placed on the desktop. When used with the CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm or 15mm DIN rail
