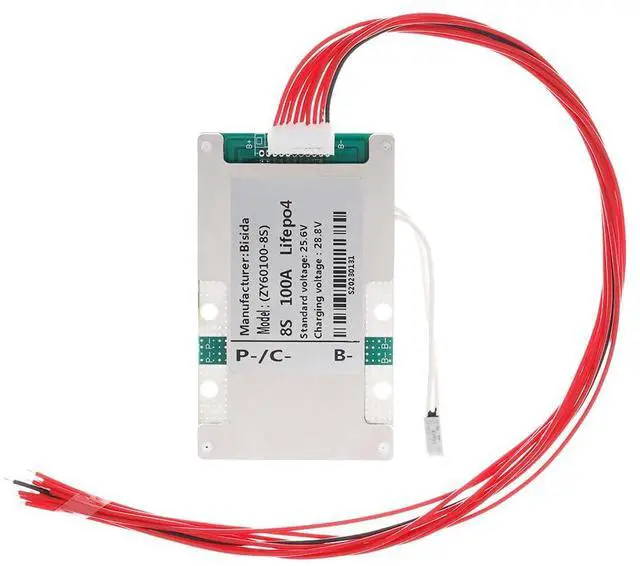

8S BMS 25.6V 100A Lifepo4 Battery Management System PCB Protection Board with Balance Wire and NTC,Ten Functional protections, Common Port, for Lifepo4 Battery Pack (8S 25.6V 100A)

MULTIPLE PROTECTION The BMS includes a wide range of protection functions, such as overcharge protection, overdischarge protection, overcurrent protection, short-circuit protection, temperature protection, downtime protection, and voltage balance (passive balance), among others. OPERATING TEMPERATURE The BMS supports ( 3.2V ) Lifepo4 battery charging and discharging in zones from 2.3V to 3.65V, with low-temperature protection down to -20°C and high-temperature protection up to 70°C. Different voltages and currents have different parameter details. Confirmation is required. NOTICE Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance (the voltage difference between the battery per section is not higher than 0.05V, the difference between the internal resistance is not more than 5M, and the capacity difference is less than 30mAh).

Otherwise, the battery pack will not be able to charge. WIRING METHOD The wiring methods for common ports of the
BMS: B- connects to the battery pack negative, C- connects to the charging negative/output negative. All the positive electrodes are the total positive pole from the battery pack. EXCELLENT SOLUTION The BMS is manufactured using excellent protective integrated circuit IC and excellent Mosfet, making it robust, durable, and dependable
