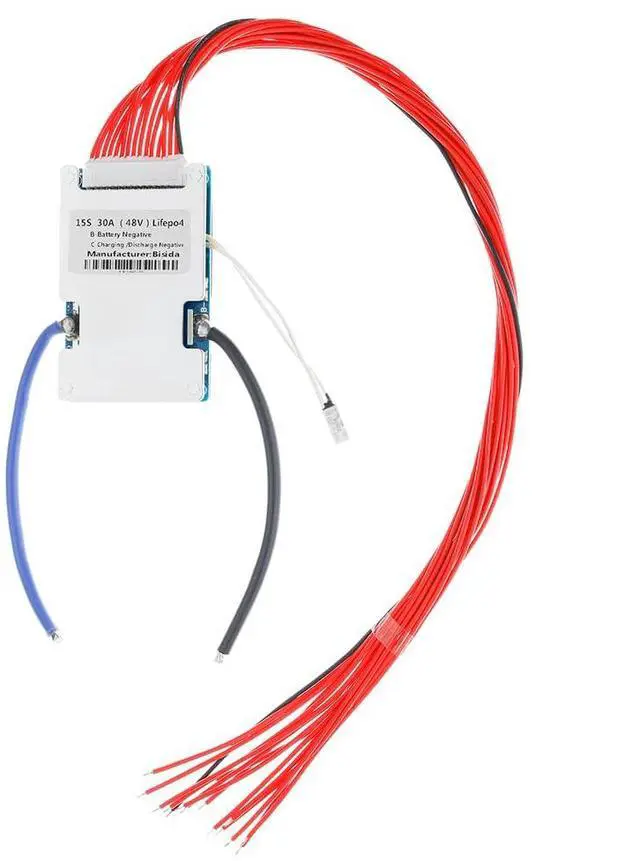

15S BMS 48V 30A Lifepo4 Battery Management System PCB Protection Board with Balance Wire and NTC,Ten Functional protections, Common Port, for 3.2V Lifepo4 Battery Pack (15S 48V 30A)

MULTIPLE PROTECTION The BMS includes a range of protection functions, such as overcharge protection, overdischarge protection, overcurrent protection, short-circuit protection, temperature protection, downtime protection, voltage balancing (passive balancing), and more. OPERATING TEMPERATURE The BMS supports ( 3.2V ) LiFePO4 battery charging and discharging in ranges from 2.3V to 3.65V, with low-temperature protection down to -20°C and high-temperature protection up to 70°C. Different voltages and currents have different parameter details. Confirmation is required. NOTICE Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance (the voltage difference between each battery cell should not exceed 0.05V, the internal resistance difference should not exceed 5M, and the capacity difference should be less than 30mAh).

Otherwise, the battery pack will not be able to charge. WIRING METHOD The wiring methods for common ports of the

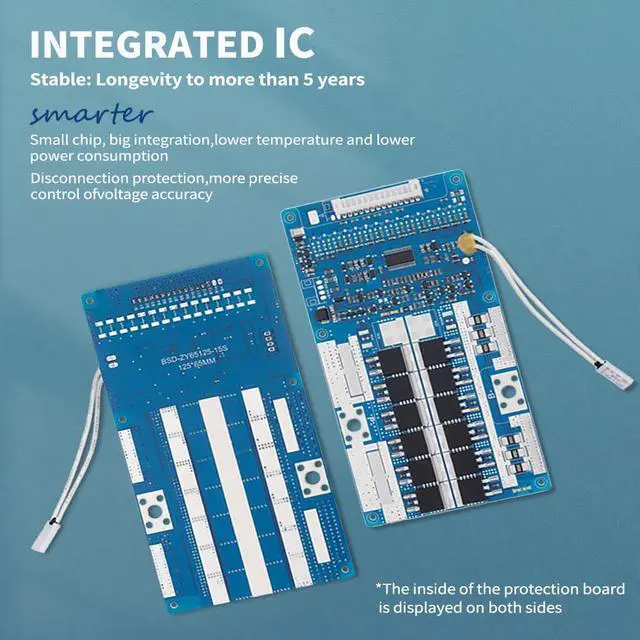

BMS: B- connects to the battery pack negative terminal, C- connects to the charging negative/output negative terminal. All positive electrodes are connected to the total positive terminal from the battery pack. EXCELLENT SOLUTION The BMS is manufactured using high-quality protective integrated circuits (ICs) and excellent MOSFETs, making it robust, durable, and reliable
