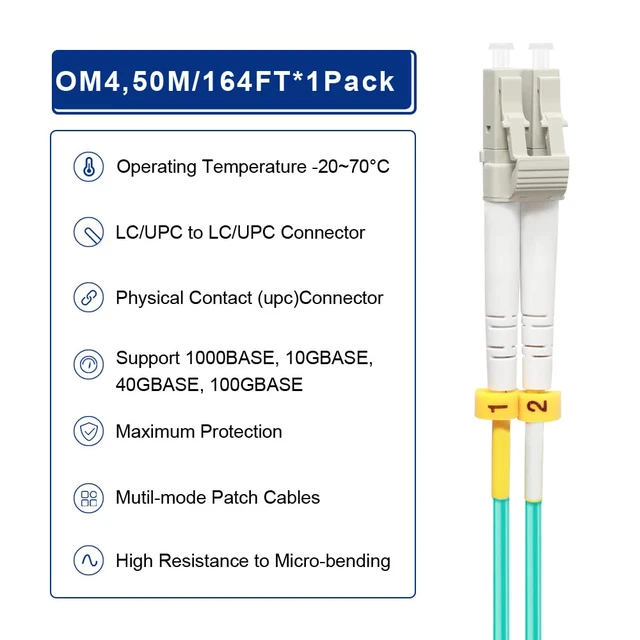

LC to LC Fiber Patch Cable OM4 Multimode 50M/164ft Duplex, 50/125um MMF, MM Multi mode Fiber Jumper, For 10G/40G/100G Transceivers / Data Centers, Fully Pre-Tested, LSZH, Aqua

50M (164ft) OM4 LC-LC Fiber Optic Patch Cable, Multimode 40/100Gb, is engineered for high-density applications in gigabit Ethernet, fiber channel, local area networks, data centers, premise installations, wide area networks, commercial settings, and more. It is well suited for connecting 40G BIDI SR, 10G SR, QSFP+, and SFP+ transceivers, among others, and supports 10G/40G/100G Ethernet connections, making it a preferred fiber specification for 40G/100G deployments.
Maximum transmission distance: 1Gb Ethernet up to 550 meters at 850nm; 10Gb Ethernet up to 300 meters at 850nm; 40Gb Ethernet up to 300 meters at 850nm; 100Gb Ethernet up to 200 meters at 850nm. Bandwidth is rated at 2000 MHz·km @850nm. 7.5 mm minimum bend radius: This high-grade 50/125um fiber and cladding is bend-insensitive, easy to strip, and easy to splice, ensuring low optical loss and stable transmission (insertion loss 0.3 dB, return loss 30dB). It is ideal for SAN network cabinets requiring 20 or more bends, or for high-density installations where cables are packed into a very compact space.
Construction design: The LSZH environmentally friendly jacket, adjustable connector clips for individual fiber access, and embossed A/B position labels on the duplex clip, along with jacket tag rings marked 1 and 2, allow quick identification of Tx and Rx during installation, testing, and troubleshooting. UPC polish and Japan-made zirconia ceramic ferrules offer high return loss, low insertion loss, and low attenuation, providing precise alignment to maintain signal integrity. Each cable is factory-tested to meet quality control and insertion loss requirements
