6PCS 12V-36V DC Voltage Protection Module, Digital Low Voltage Protector with Disconnect Switch and Over-Discharge Protection
Limited time offer, ends 10/19 By EpicTransTrade
- Product Specifications: Product Size: 57×42×19 mm; Input: DC 12-36V; Accuracy: ±0.1V; Power Consumption: <1.5W; Max Current: 20A Product Operation: To reset: power off, hold both buttons while powering on until "888" appears. Defaults: 12V protection voltage, 2V hysteresis (the voltage range between battery disconnect and reconnect). Settings are saved automatically during power loss. Over-Discharge Protection: Set a voltage threshold to automatically cut off the circuit when battery voltage drops too low, preventing over-discharge and extending battery life. (Note: The relay itself does not cut power; manually turn off after disconnect to avoid power drain.) Application: A protective switching module (battery not included) that uses a relay to control the output circuit. Suitable for lead-acid, lithium, and solar cells. Not for battery packs. Note: Due to compact PCB design, use under 8A (under 12V: 10A max) to protect relay contacts
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product

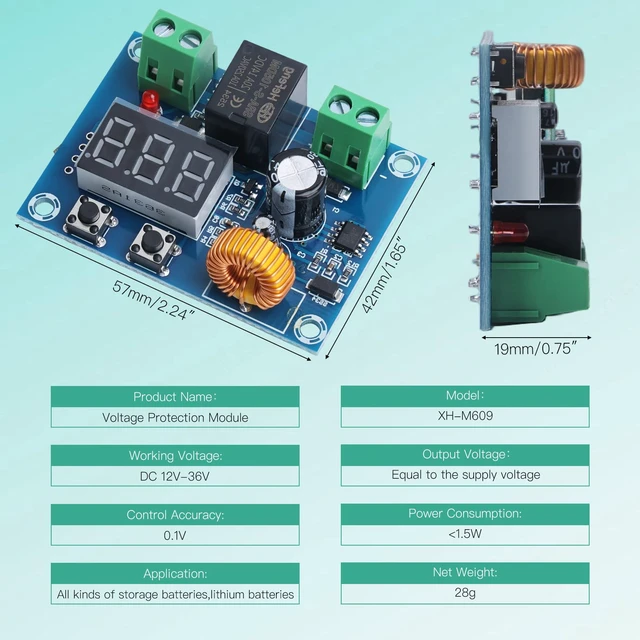

Size: 57×42×19 mm;
Input: DC 12-36V;
Accuracy: ± 0.1V;
Power Consumption: < 1.5W;
Max Current: 20A

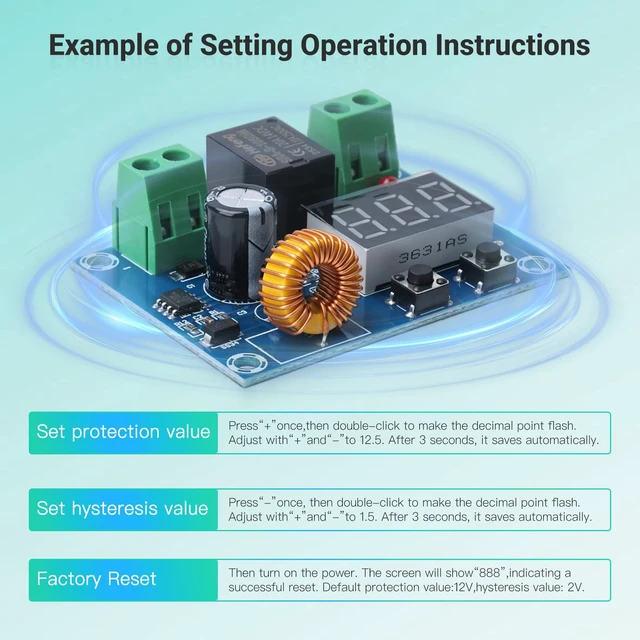

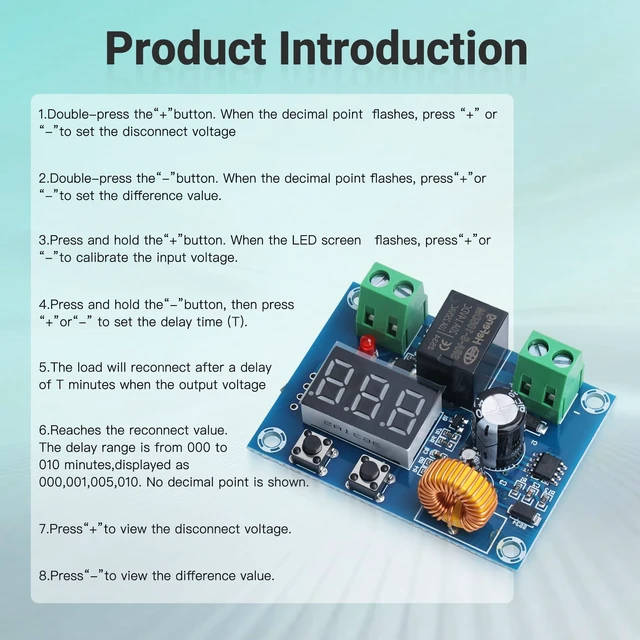

Product Operation: To
reset: power off, hold both buttons while powering on until "888" appears.
Defaults: 12V protection voltage, 2V hysteresis (the voltage range between battery disconnect and reconnect). Settings are saved automatically during power loss.
Over-Discharge Protection: Set a voltage threshold to automatically cut off the circuit when battery voltage drops too low, preventing over-discharge and extending battery life.
(Note: The relay itself does not cut power; manually turn off after disconnect to avoid power drain. )
Application: A protective switching module (battery not included) that uses a relay to control the output circuit. Suitable for lead-acid, lithium, and solar cells. Not for battery packs.
Note: Due to compact PCB design, use
under 8A (under 12V: 10A max) to protect relay contacts
Specifications
: ProductSize: 57×42×19 mm;
Input: DC 12-36V;
Accuracy: ± 0.1V;
Power Consumption: < 1.5W;
Max Current: 20A
Product Operation: To
reset: power off, hold both buttons while powering on until "888" appears.
Defaults: 12V protection voltage, 2V hysteresis (the voltage range between battery disconnect and reconnect). Settings are saved automatically during power loss.
Over-Discharge Protection: Set a voltage threshold to automatically cut off the circuit when battery voltage drops too low, preventing over-discharge and extending battery life.
(Note: The relay itself does not cut power; manually turn off after disconnect to avoid power drain. )
Application: A protective switching module (battery not included) that uses a relay to control the output circuit. Suitable for lead-acid, lithium, and solar cells. Not for battery packs.
Note: Due to compact PCB design, use
under 8A (under 12V: 10A max) to protect relay contacts
