6pcs 12V-36V DC Voltage Protection Module Digital Low Voltage Protector Disconnect Switch Over Discharge Protection Module
Limited time offer, ends 10/19 By EpicTransTrade
- PRODUCT PARAMETERS: Board Size: 57 x 42 x 19 mm (2.24 x 1.65 x 0.75 inches) LxWxH; Input Voltage: DC 12-36V; Accuracy: ±0.1V; Power Consumption: <1.5W; Maximum Current before Breaker Trips: 20A PRODUCT FUNCTION: A programmable low-voltage disconnect switch designed for DC 1236V lead-acid and lithium-ion batteries. This module provides battery protection by disconnecting loads when voltage is too low. Batteries are not included. Compatible with lead-acid, lithium-ion, and solar storage batteries. Not suitable for assembled battery packs. PROLONGS BATTERY LIFE & ENSURES SAFETY: Automatically cuts load at low voltage to stop deep dischargesafeguarding battery health and extending service life. HIGH-PRECISION VOLTAGE CONTROL: Protect your battery with ultra-accurate (0.1 V) monitoring and automatic cut-off between 12-36 Vcompatible with lead-acid and lithium batteries. MEMORY FUNCTION: Even after a power failure, the module automatically restores the last saved settings, eliminating the need for repeated adjustments. NOTE: This voltage protection module uses a compact PCB design with a mini relay and slim circuit lines. For safe operation, the recommended working current should not exceed 8A. The maximum supported current is 10A at voltages below 12V, and should be kept under 8A when above 12V to avoid relay damage
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
PRODUCT PARAMETERS: Board

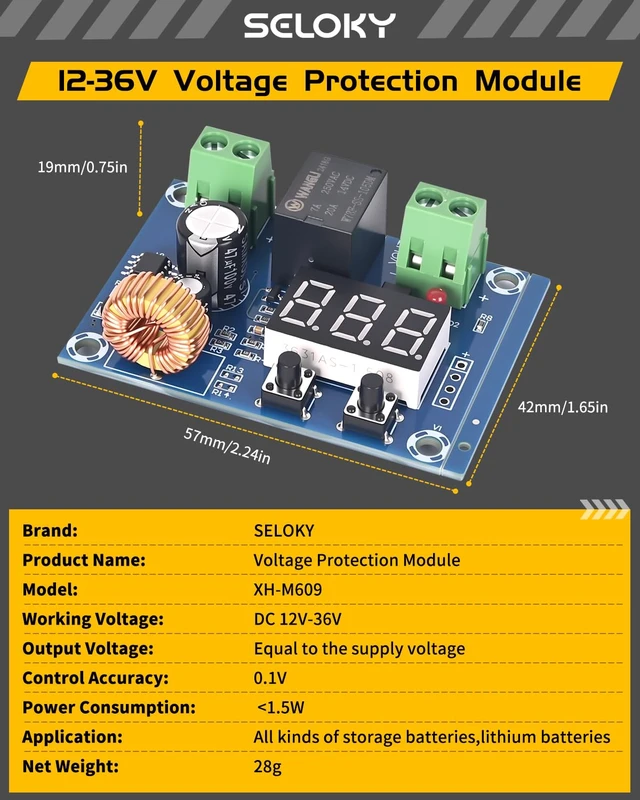

Size: 57 x 42 x 19 mm ( 2.24 x 1.65 x 0.75 inches) LxWxH;
Input Voltage: DC 12-36V;
Accuracy: ± 0.1V;
Power Consumption: < 1.5W; Maximum Current before
Breaker Trips: 20A
PRODUCT FUNCTION: A programmable low-voltage disconnect switch designed for DC 1236V lead-acid and lithium-ion batteries. This module provides battery protection by disconnecting loads when voltage is too low. Batteries are not included. Compatible with lead-acid, lithium-ion, and solar storage batteries. Not suitable for assembled battery packs. PROLONGS BATTERY LIFE & ENSURES SAFETY: Automatically cuts load at low voltage to stop deep dischargesafeguarding battery health and extending service life.
HIGH-PRECISION VOLTAGE CONTROL: Protect your battery with ultra-accurate ( 0.1 V) monitoring and automatic cut-off between 12-36 Vcompatible with lead-acid and lithium batteries.
MEMORY FUNCTION: Even after a power failure, the module automatically restores the last saved settings, eliminating the need for repeated adjustments.
NOTE: This voltage protection module uses a compact PCB design with a mini relay and slim circuit lines. For safe operation, the recommended working current should not exceed 8A. The maximum supported current is 10A at voltages below 12V, and should be kept under 8A when above 12V to avoid relay damage
Size: 57 x 42 x 19 mm ( 2.24 x 1.65 x 0.75 inches) LxWxH;
Input Voltage: DC 12-36V;
Accuracy: ± 0.1V;
Power Consumption: < 1.5W; Maximum Current before
Breaker Trips: 20A
PRODUCT FUNCTION: A programmable low-voltage disconnect switch designed for DC 1236V lead-acid and lithium-ion batteries. This module provides battery protection by disconnecting loads when voltage is too low. Batteries are not included. Compatible with lead-acid, lithium-ion, and solar storage batteries. Not suitable for assembled battery packs. PROLONGS BATTERY LIFE & ENSURES SAFETY: Automatically cuts load at low voltage to stop deep dischargesafeguarding battery health and extending service life.
HIGH-PRECISION VOLTAGE CONTROL: Protect your battery with ultra-accurate ( 0.1 V) monitoring and automatic cut-off between 12-36 Vcompatible with lead-acid and lithium batteries.
MEMORY FUNCTION: Even after a power failure, the module automatically restores the last saved settings, eliminating the need for repeated adjustments.
NOTE: This voltage protection module uses a compact PCB design with a mini relay and slim circuit lines. For safe operation, the recommended working current should not exceed 8A. The maximum supported current is 10A at voltages below 12V, and should be kept under 8A when above 12V to avoid relay damage
