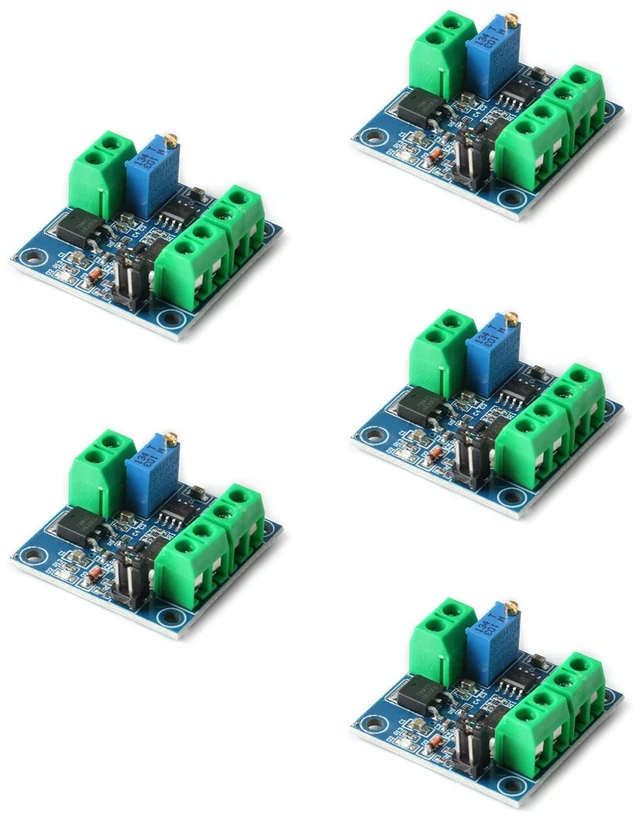

5Pcs PWM to Voltage Module 0%-100 PWM to 0-10V Voltage Signal Converter Voltage Converter Module for PWM Industrial Control
- Conversion range: 0%-100% PWM to 0-10V voltage, allowable error: 5%. Module operating voltage: DC 12V-30V (power requirement: greater than 100MA); PWM signal receiving frequency range: 1KHZ-3KHZ. PWM signal input level range: peak 4.5V to 10V level, jump pin inserted at 5V. This kind of level signal is mainly aimed at the interface of conventional industrial control cards (such as MACH3 board) and 5V CPU. The peak value is 12 to 24V, and the jump pin is inserted at 24V. This kind of level signal is mainly aimed at the conventional PLC interface. Using single-chip embedded technology, easy to operate, can be fine-tuned by potentiometer. By short-circuit risk selection of PWM signal input level range, the module is small, easy to carry and easy to use
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Conversion range: 0%-100% PWM to 0-10V voltage, allowable
error: 5%.
Module operating voltage: DC
12V-30V (power requirement: greater than 100MA);
PWM signal receiving frequency range: 1KHZ-3KHZ.
PWM signal input level range: peak 4.5V to 10V level, jump pin inserted at 5V. This kind of level signal is mainly aimed at the interface of conventional industrial control cards (such as MACH3 board) and 5V CPU. The peak value is 12 to 24V, and the jump pin is inserted at 24V. This kind of level signal is mainly aimed at the conventional PLC interface. Using single-chip embedded technology, easy to operate, can be fine-tuned by potentiometer. By short-circuit risk selection of PWM signal input level range, the module is small, easy to carry and easy to use
error: 5%.
Module operating voltage: DC
12V-30V (power requirement: greater than 100MA);
PWM signal receiving frequency range: 1KHZ-3KHZ.
PWM signal input level range: peak 4.5V to 10V level, jump pin inserted at 5V. This kind of level signal is mainly aimed at the interface of conventional industrial control cards (such as MACH3 board) and 5V CPU. The peak value is 12 to 24V, and the jump pin is inserted at 24V. This kind of level signal is mainly aimed at the conventional PLC interface. Using single-chip embedded technology, easy to operate, can be fine-tuned by potentiometer. By short-circuit risk selection of PWM signal input level range, the module is small, easy to carry and easy to use
