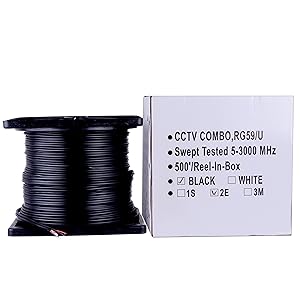

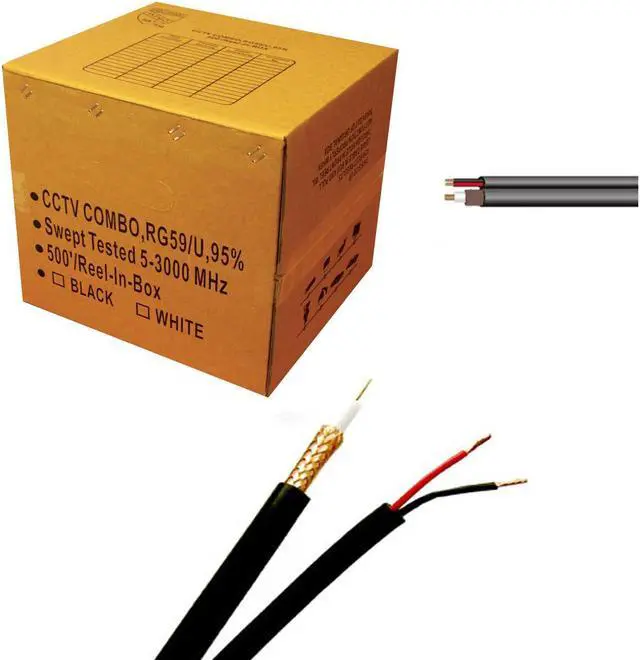

RG59 Siamese Combo cable consists of two cables: 95 % coverage RG59 U video cable and 2 conductors 18 gauge electrical cable all in one PVC jacket cable. This type of cable is great for use with surveillance CCTV equipment. All the wires you need to connect to your cameras are within one cable, therefore eliminating the need for two separate cables for the power and video. It will also save you a considerable amount of time during installation. Tested and run with 500 ft with no issue.
- RG59 U (video) and 18/2 (power) Cable
- Internal spline separates pairs for a cleaner signal
- Available in 500 Ft in Black and White color
- Foot-marked cable for easy installation
Technical Data
- RG59 500 Ft Combo Siamese 20AWG Center Conductor + 18awg/2 CCTV Stranded Black/Red Power Cable. One Cable Solution
- RG59 20 AWG CCAM (Copper Clad Alumium & Magnesium) Center Conductor. 95% Coverage Braid Shield
- 2 Stranded 18 AWG CCTV Black/Red Power
- ETL Listed
- No Tangle. Foot-marked cable is packaged in Spool box.
- Compatible with standard BNC connector
RG59 Siamese - One Cable Solution
- Siamese cable consists of two cables: 95 % coverage RG59 U video cable and 2 conductor 18 gauge electrical cable all in one PVC jacketed cable.
Attached with 18/2 Power Cable
- Attached 2 Stranded 18 AWG 7x0.385mm Black/Red Power Cable
- Available in 500 Ft Black and White color
- Foot-marked cable for easy installation
Professional Surveillance
- This type cable is great for use with CCTV equipment. All the wires you need to connect your camera are with in one cable.
