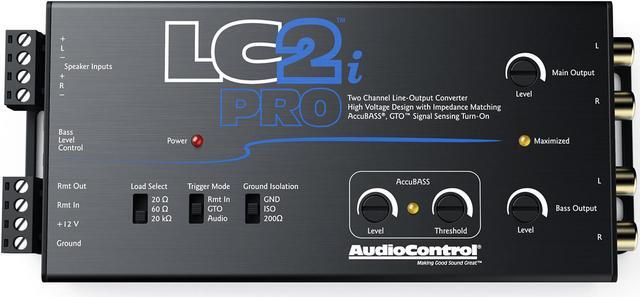

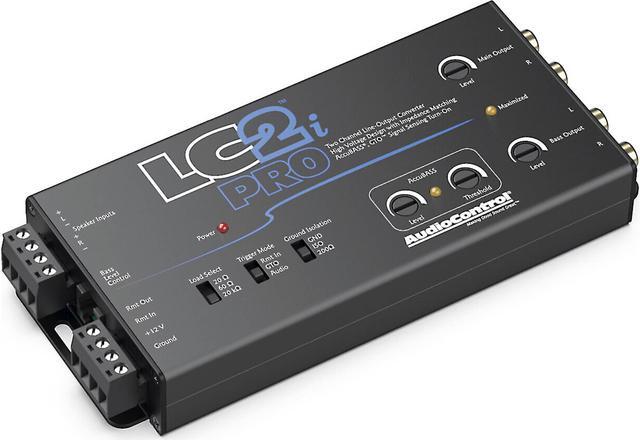

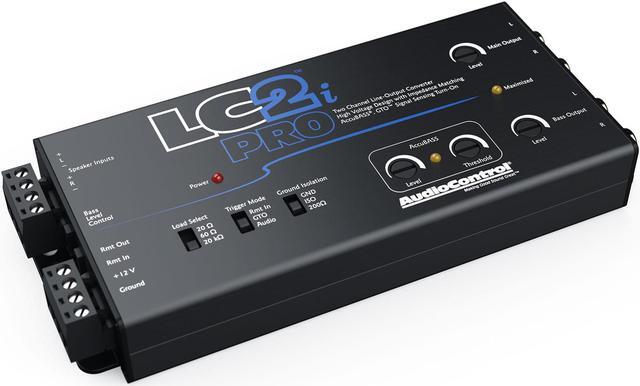

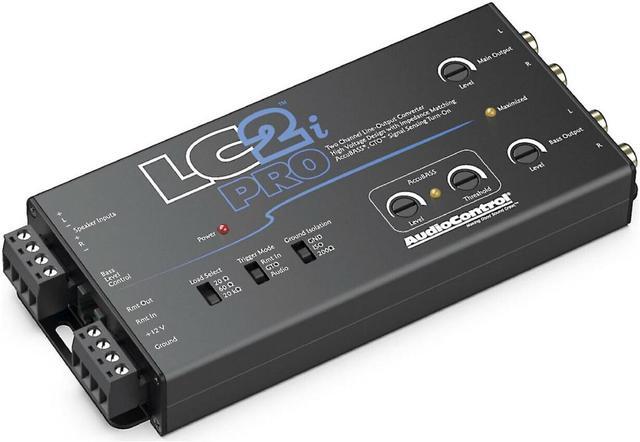

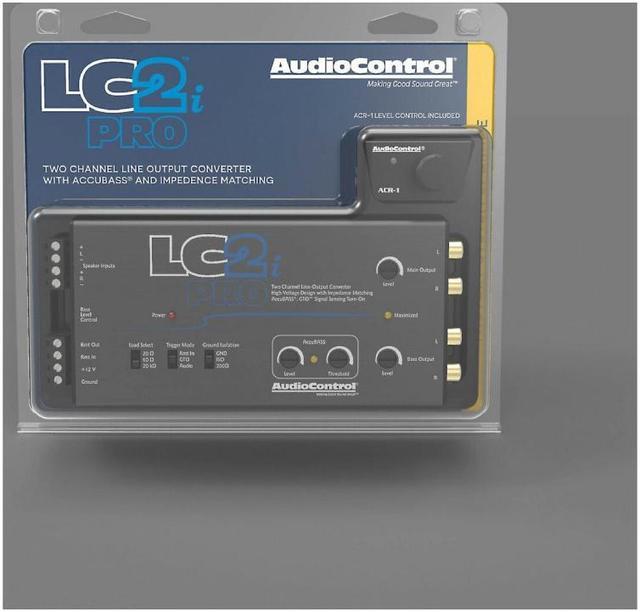

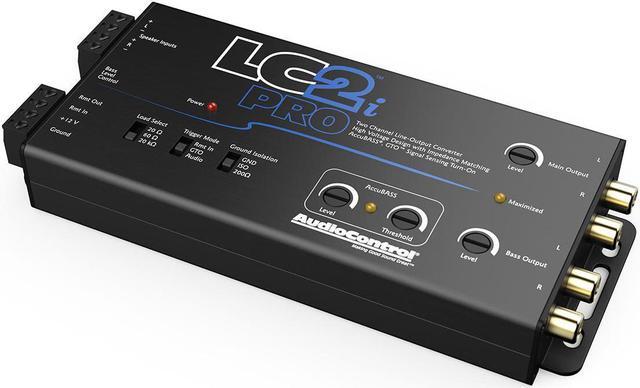

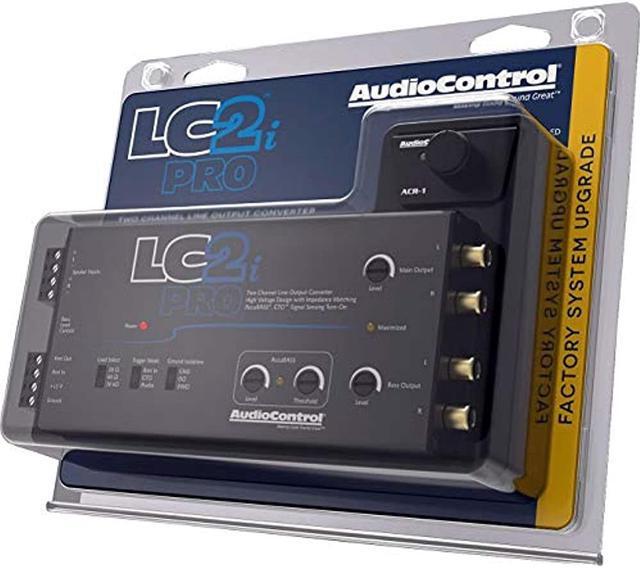

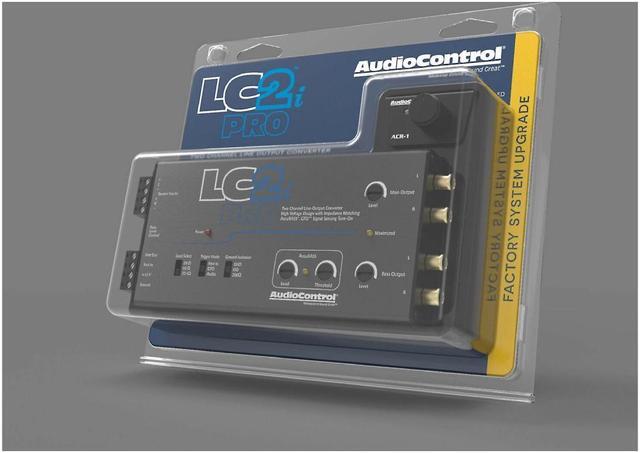

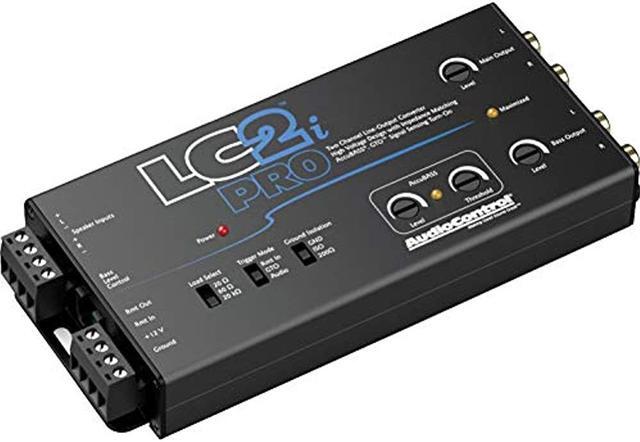

AudioControl LC2i PRO 2-Channel Line Output Converter with Impedance Matching, AccuBASS, GTO, Audio Signal Sense, 12V Turn-On and ACR-1 Dash Remote Subwoofer Control

The AudioControl LC2i PRO joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1i and LC2i Pro will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Upgrade to the LC2i PRO for AudioContol’s AccuBASS and the included ACR-1 level control.

Features: Active Speaker Level Inputs (up to 40V input handling) Built-In Line Driver with up to 9.5 Vrms OutputAccuBASS Bass Rolloff Compensation CircuitLoad Selection Switch for Painless OEM IntegrationMultiple
Trigger Modes: GTO, Audio Sense, 12 V Turn OnSlim Chassis with Integrated Mounting BracketsACR-1 Dash Remote Included5 Year Manufacturer's

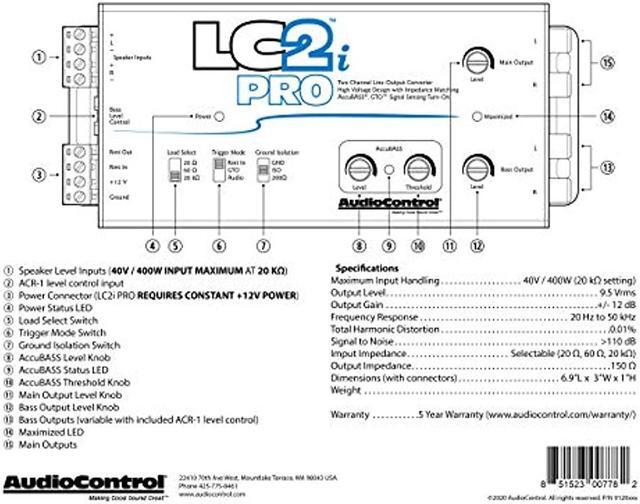

Warranty (*when installed by an authorized AudioControl dealer) Specifications: Maximum Speaker
Level Input: 40V / 400 W (20 kO setting)
Output Level: 9.5V rmsOptional Dash
Level Control Remote: +/- 12dBFrequency
Response: 20 Hz - 50, 000 Hz; ±1dBTotal
Harmonic Distortion (THD): 0.01 %Signal to
Noise Ratio: >110dBInput
Impedance: Selectable (20 O, 60 O, 20 kO)Output
Impedance: 150

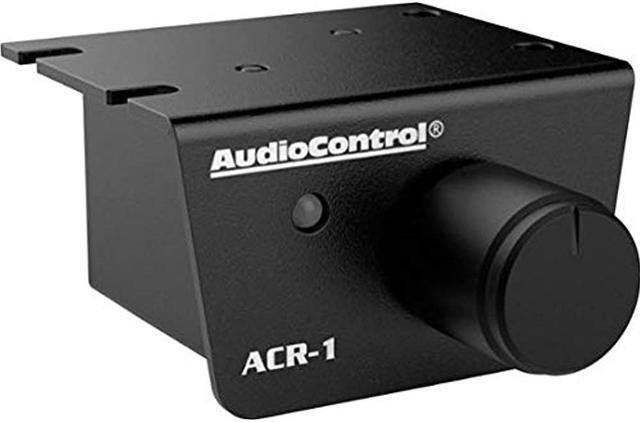

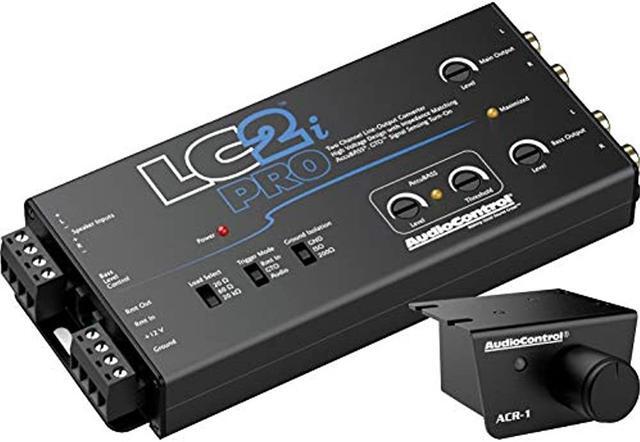

ohmsDimensions (with connectors): 6.9 ”L x 3”W x 1”HThe LC2i PRO features a full range Main Output as well as a low passed (1000 Hz) Bass Output. Use the LC2i PRO to quickly add a subwoofer or a compact front stage plus subwoofer to your factory system. AccuBASS can be used to compensate for factory bass roll-off or as an enriching low frequency boost. Once you’ve experienced AccuBASS, you’ll wonder how you lived without it. Includes! AudioControl Universal Dash Remote (ACR1)
