Home Audio Power Amplifier System 2X75W Mini Dual Channel Sound Stereo Receiver Box w LED For Amplified Speakers CD Player Theater via 35mm RCA For Studio Home Use PCA3
- *****
- **********
- *****2x75 WATT POWER: The Dual Channel Audio Amplifier is perfect for your home theater acoustic sound system. Gives you 2x75 watts peak power which can be used for subwoofer speakers w/ 4-8 ohms impedance, enjoy high quality music and movie*****
- *****MULTIPLE SOURCES: This small personal digital amp box lets you connect external audio sources such as tuner, CD player, tape deck, camcorder, VCR to the 3.5mm RCA (L/R) LINE input and enjoy enhanced amplified acoustic audio reproduction*****
- *****LED INDICATOR: The mini professional integrated stereo receiver features LED indicator light above the power switch to indicate power is turned ON. The unit also features blue LED output level display*****
- *****PUSH TYPE SPEAKER TERMINAL: It lets you easily connect speaker wires directly to the amplifier. The speaker impedance ranges from 4 to 8 Ohms for the general stereo output. The total speaker impedance must be at least 4 Ohm per channel at stereo mode*****
- *****EQ CONTRO
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Style: 150
Watt Home Model: PCA3Stereo Power Amplifier, 2 x 75 WattStereo Power Speaker Amplifier - Compact Audio Control Amp System, RCA Input, 150-Watt MAX RCA Jack Input 2 x 75 Watt MAX PowerPush Type Speaker Outputs Blue LED Output Level Display Power On/Off Switch and LED IndicatorTreble, Bass and Master Volume ControlsCompatible With Audio/Computerize Devices (MP3 Players) Via 3.5 mm

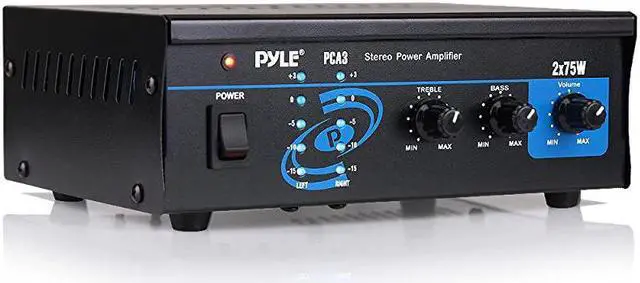

To RCA Converter Dimensions: 7.48 ''W x 2.87 ''H x 5.39 ''DThis mini stereo power amplifier provides up to 75 W of power on each channel at 4 ohms. Connect your inputs using the RCA jacks. Outputs over standard speaker push jacks. It's compatible with any audio or computer device - you can even hook up an iPod using a 3.5 mm to RCA jack converter. Treble, bass, and volume controls on the front let you tweak your sound to exactly how you want it. Runs on 110 or 220 V. From the Manufacturer Front View Click here for a larger image Connection Diagram Click here for a larger image Stereo Power Amplifier Click here for a larger image Back View Click here for a larger image The Ultimate Stereo Power Amplifier This amplifier gives you the power and versatility you need to create a professional sound system. Its wide frequency response makes it suitable for amplifying any type of audio including music or vocals. It can be used in meeting halls, restaurants, schools, stores, and at home --the perfect solution for paging systems anywhere. Get the power you need with 2 x 75 Watt to handle all your audio needs.

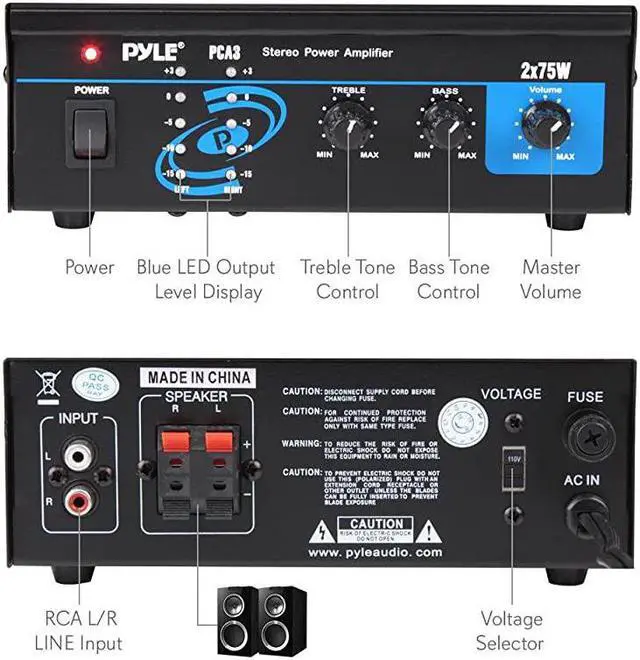

110/220 Voltage Selector This amplifier has selectable input voltage from 110 V/60 Hz (the standard in USA and Canada) to 220 V/50 Hz (for European operation). Please make sure the switch is in the proper position before operating. Compatibility Compatible with CD players, walkmans, and computerized devices, including MP3s, via 3.5 millimeter to RCA converter. RCA L/R Line Input Lets you connect the desired line input source. Take Control Use the control center panel located on the face of the unit to make adjustments to microphone volume, master volume, balance, bass, and treble. Push Type Speaker Terminals Lets you easily connect speaker wires directly to the amplifier. Replaceable Power Fuse The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse and replace it if necessary.
(Replacement fuse to use: 1.5 -amp, 250-volt, fast-acting 5 x 20 millimeter fuse --not included)
Additional Features Harmonic Distortion: 0.3 % 2 x 75 Watt RMS at 4 Ohm Blue LED Output Level
Display Frequency Response: 20 Hz-40 kHz
Power Fuse: 1.5 A, 250V Fast-Acting (5 x 20 millimeter)
Power Requirement: 120 V AC 50 Hz/230 V AC 50
Hz Tone Controls: Bass and
Treble: +/-10dB (100 Hz/10 kHz)

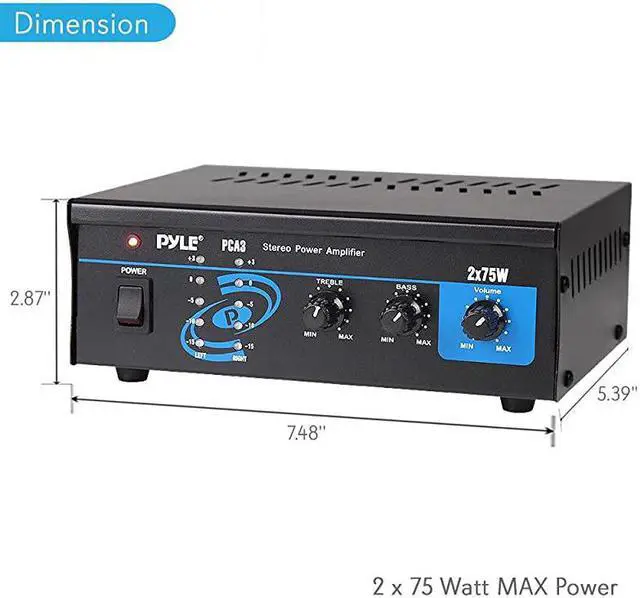

Dimensions: 8.27 x 2.72 x 5.39 inch (190 x 70 x 137 millimeter)
Watt Home Model: PCA3Stereo Power Amplifier, 2 x 75 WattStereo Power Speaker Amplifier - Compact Audio Control Amp System, RCA Input, 150-Watt MAX RCA Jack Input 2 x 75 Watt MAX PowerPush Type Speaker Outputs Blue LED Output Level Display Power On/Off Switch and LED IndicatorTreble, Bass and Master Volume ControlsCompatible With Audio/Computerize Devices (MP3 Players) Via 3.5 mm
To RCA Converter Dimensions: 7.48 ''W x 2.87 ''H x 5.39 ''DThis mini stereo power amplifier provides up to 75 W of power on each channel at 4 ohms. Connect your inputs using the RCA jacks. Outputs over standard speaker push jacks. It's compatible with any audio or computer device - you can even hook up an iPod using a 3.5 mm to RCA jack converter. Treble, bass, and volume controls on the front let you tweak your sound to exactly how you want it. Runs on 110 or 220 V. From the Manufacturer Front View Click here for a larger image Connection Diagram Click here for a larger image Stereo Power Amplifier Click here for a larger image Back View Click here for a larger image The Ultimate Stereo Power Amplifier This amplifier gives you the power and versatility you need to create a professional sound system. Its wide frequency response makes it suitable for amplifying any type of audio including music or vocals. It can be used in meeting halls, restaurants, schools, stores, and at home --the perfect solution for paging systems anywhere. Get the power you need with 2 x 75 Watt to handle all your audio needs.
110/220 Voltage Selector This amplifier has selectable input voltage from 110 V/60 Hz (the standard in USA and Canada) to 220 V/50 Hz (for European operation). Please make sure the switch is in the proper position before operating. Compatibility Compatible with CD players, walkmans, and computerized devices, including MP3s, via 3.5 millimeter to RCA converter. RCA L/R Line Input Lets you connect the desired line input source. Take Control Use the control center panel located on the face of the unit to make adjustments to microphone volume, master volume, balance, bass, and treble. Push Type Speaker Terminals Lets you easily connect speaker wires directly to the amplifier. Replaceable Power Fuse The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse and replace it if necessary.
(Replacement fuse to use: 1.5 -amp, 250-volt, fast-acting 5 x 20 millimeter fuse --not included)
Additional Features Harmonic Distortion: 0.3 % 2 x 75 Watt RMS at 4 Ohm Blue LED Output Level
Display Frequency Response: 20 Hz-40 kHz
Power Fuse: 1.5 A, 250V Fast-Acting (5 x 20 millimeter)
Power Requirement: 120 V AC 50 Hz/230 V AC 50
Hz Tone Controls: Bass and
Treble: +/-10dB (100 Hz/10 kHz)
Dimensions: 8.27 x 2.72 x 5.39 inch (190 x 70 x 137 millimeter)
