TASCAM FR-AV2 Compact 32-bit Float Field Recorder and Timecode Generator with Mixer

Offering 32-bit float, no-clip recording, two premium XLR/TRS mic/line inputs, timecode generation, jam-sync function, and optional Bluetooth wireless monitoring, the TASCAM FR-AV2 is a compact audio recorder packed with professional features for busy DIY videographers working in the field without a crew and who don't want to worry about clipping their audio.

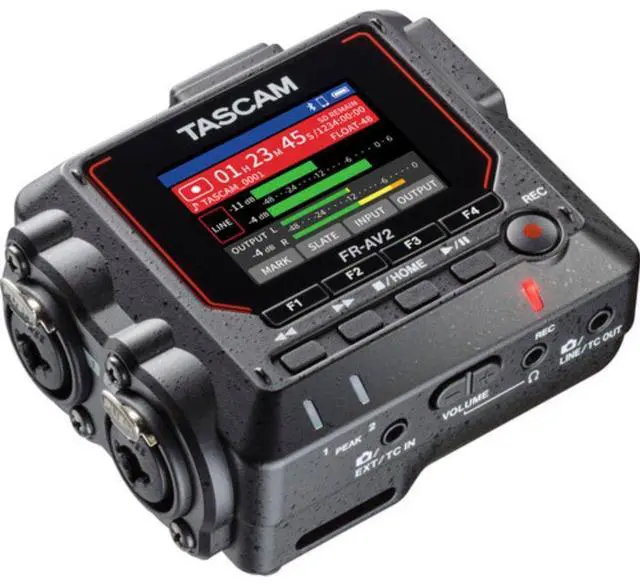

The FR-AV2's lightweight fiberglass enclosure is designed for use with camera rigs. The vibrant 2" color LCD display maximizes visibility and operability when shooting outdoors. Fine-tune your sound before capture with the onboard low-cut filter, compressor, limiter, and noise gate. Up to 512GB of audio is recorded to a microSDXC card, at rates up to 192 kHz. The unit can also function as a 2-in / 2-out USB-C audio interface for Mac/Windows computers and iOS devices, enabling you to track professional-grade audio with timecode to your iPhone/iPad rig using a USB-C cable. The FR-AV2 can be powered via three AA batteries, USB bus power, or with an AC adapter (available separately).



At a Glance

• Dual ADCs with enhanced 32-bit float recording for fast setup and worry-free capture

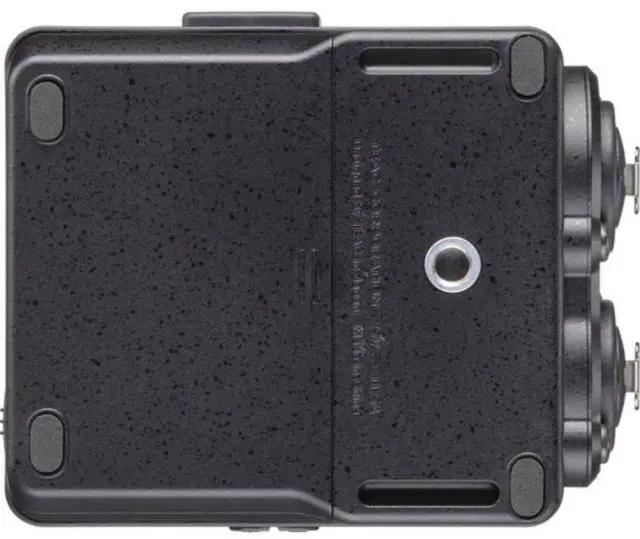

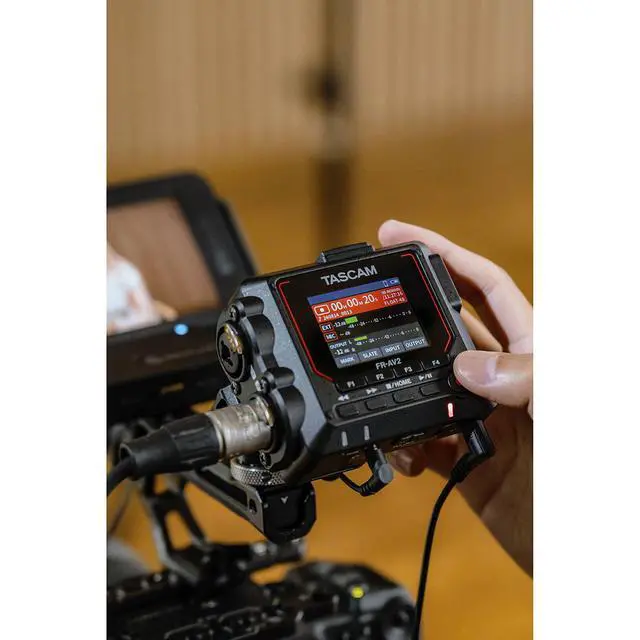

• Compact, lightweight fiberglass enclosure designed for use with camera rigs

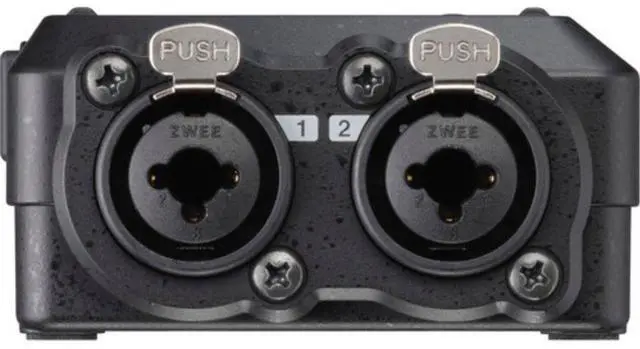

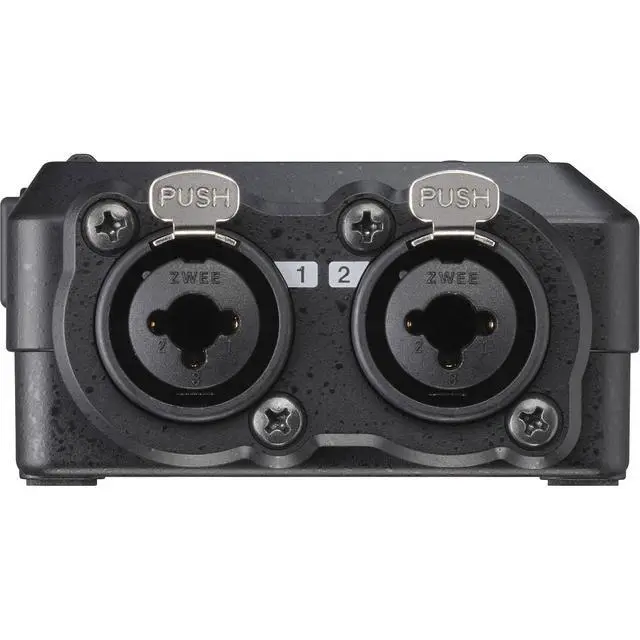

• 2 XLR/TRS combo inputs with Ultra HDDA Preamps, EIN -127 dBu


• 3.5mm stereo input for lavalier, wireless mic, various audio sources

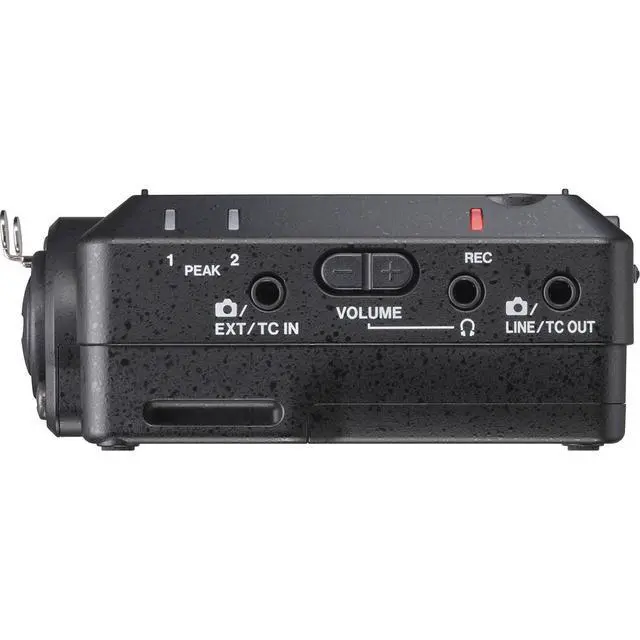

• Timecode I/O, timecode generation, and jam-sync function with high-accuracy TCXO

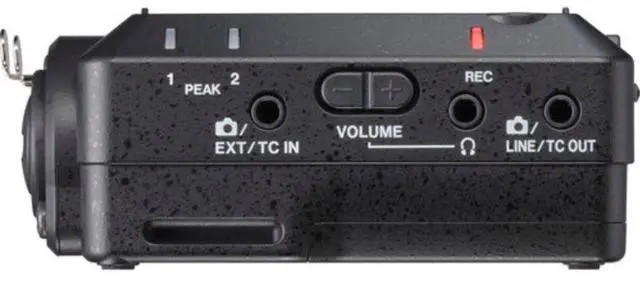

• 3.5mm stereo headphone jack


• 2-in / 2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float


• Rec format: 48/96/192 kHz supported

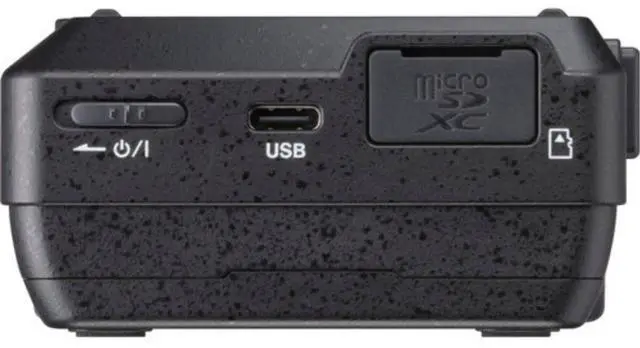

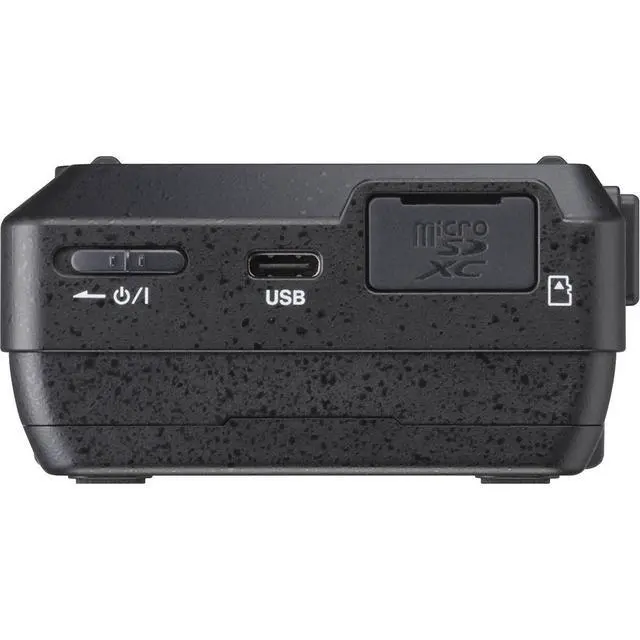

• Supports up to SDXC 512GB recording media

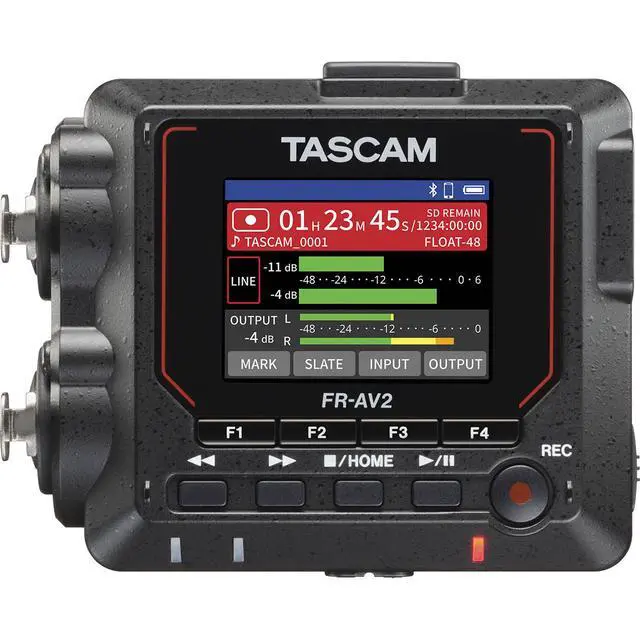

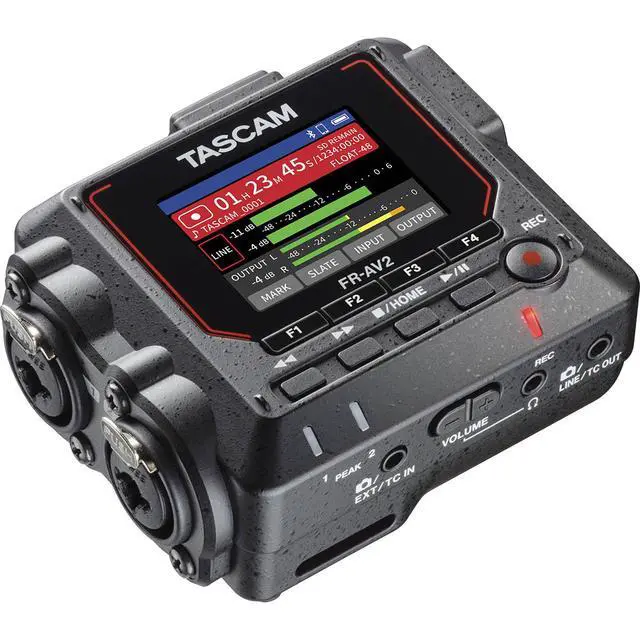

• 2" color LCD screen for easy visibility and operability


• Multiple functions on inputs including low-cut, compressor, limiter, and noise gate


• Adjustable input delay to compensate for distance between microphones [0 to 300 ms].


• Output-delay adjustment available to compensate for camera video and audio output [0 to 300 ms].


• Mark and auto-slate tone functions


• Automatic file closing function to prevent the loss of recorded data if the batteries run out


• Camera/external input with plug-in power (+2.5V / +5.0V) function and camera/line outputs


• Wireless audio monitoring with the optional AK-BT2 Bluetooth adapter (available separately)


• Free TASCAM Recorder Connect app for iOS, iPadOS, and Android allows you to control multiple units with the optional AK-BT2 Bluetooth adapter


• Wireless timecode synchronization with Atomos UltraSync Blue


• 3 AA batteries, USB bus power, or TASCAM PS-P520U AC adapter (available separately)


• Supports capturing metadata (WAV file BEXT and iXML) when recording

What's in the Box

TASCAM FR-AV2 Compact 32-bit Float Field Recorder and Timecode Generator with Mixer


• 1 x TASCAM Recorder
