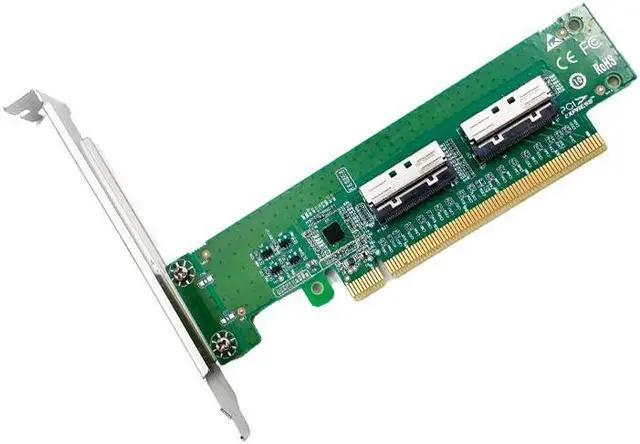

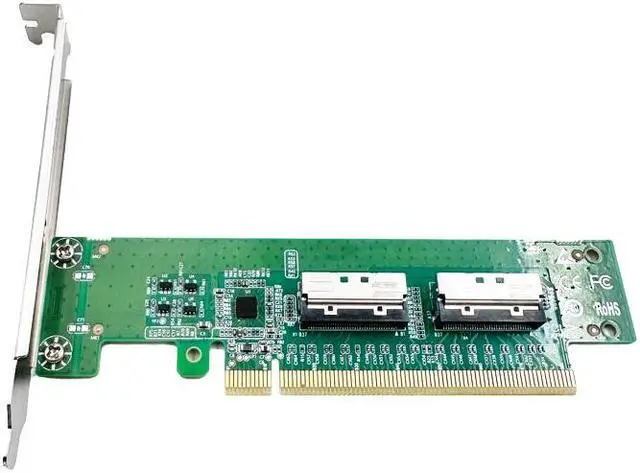

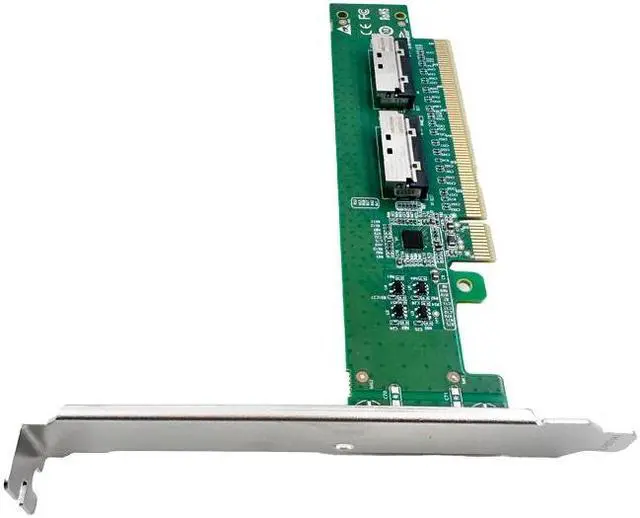

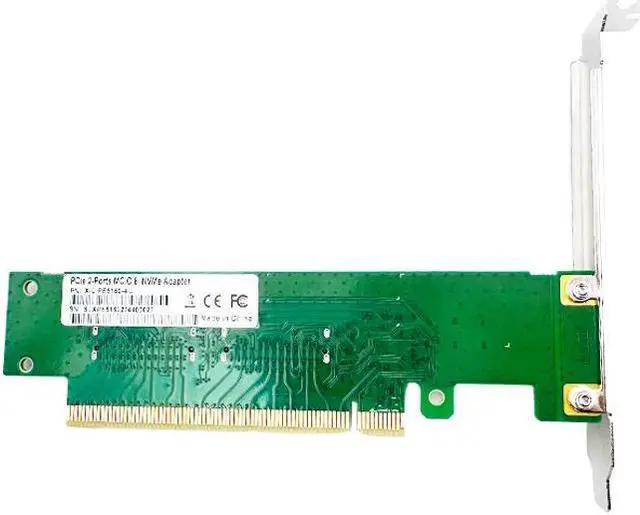

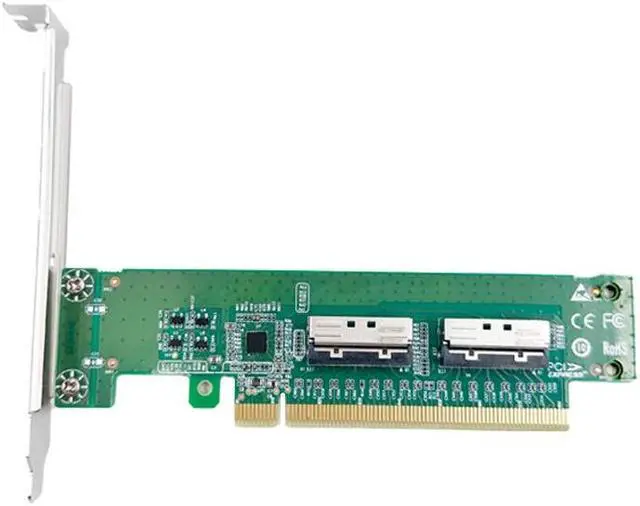

Shinreal XIC PE5160-4IL PCI Express x16 to Two MCIO 8I Adapter

Be the first to review this product...
  • Product Model:XIC PE5160-4IL
  • Product Name:PCI Express x16 to Two MCIO 8i Adapter
  • Interface Type:2*MCIO 8i
  • Support Equipment: Up to 4* PCIe 4.0 U.2 NVMe SSD
  • Host Bus Type: PCIe x 16
  • Ps. Motherboards and BIOS Support Bifurcation required
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
PE5160

Features

Support up to 4 PCIe devices or NVMe SSDs

Compatible with PCIe Gen5, Gen4, Gen3

Directly connected to U.2 NVMe SSD by MCIO to SFF-8639 cable

Support bifurcated in quad x4 data link width configuration(CPU and BIOS both support)

Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)

 Build in MCIO 8i connector 2 sets, pin-out defined by SFF-9402

PCIe lane reversal

PE5160-4IL

Product Description

XIC PE5160-4IL is a high performance, low dielectric loss factor interface conversion card. It connects NVMe SSD or PCIe connectors via MCIO connector . The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.

The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.

parameter
XIC PE5160-4IL is a high performance, low dielectric loss factor interface conversion card designed for PCIe 4.0 or PCIe 5.0 U. 2 SSD. It connects NVMe SSD or PCIe connectors via MCIO connector. The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.

The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.


Features

Directly connected to PCIe 5.0 U. 2 NVMe SSD by MCIO to SFF-8639 cable

Support bifurcated in quad x4 data link width configuration (CPU and BIOS both support)

Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)

Build in MCIO 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity


PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.




Specifications



PCI Express Base Specification, r 5.0, compatible PCIe 1.0 & 2.0 & 3.0 & 4.0

Support up to 4 NVMe SSDs
