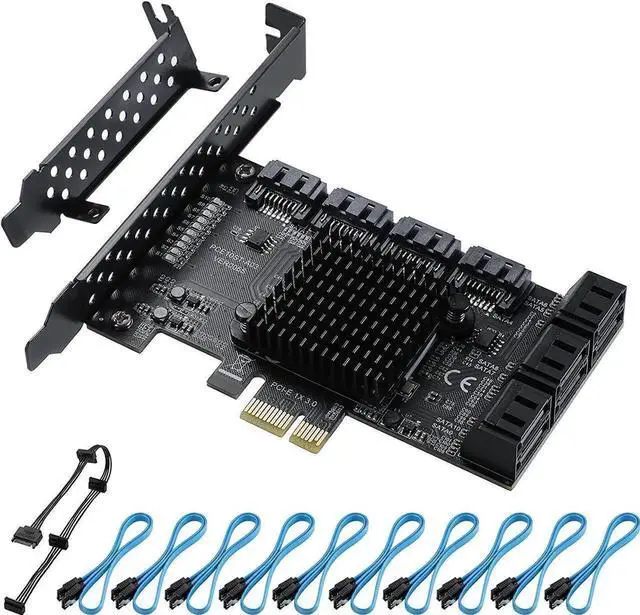

Vszerda PCIE 1X SATA Card 10 Ports,6 Gbps SATA 3.0 Controller PCIe Expansion Card,Non-Raid,Support 10 SATA 3.0 Devices,with Low Profile Bracket and 10 SATA Cables(Chip:ASM1166)

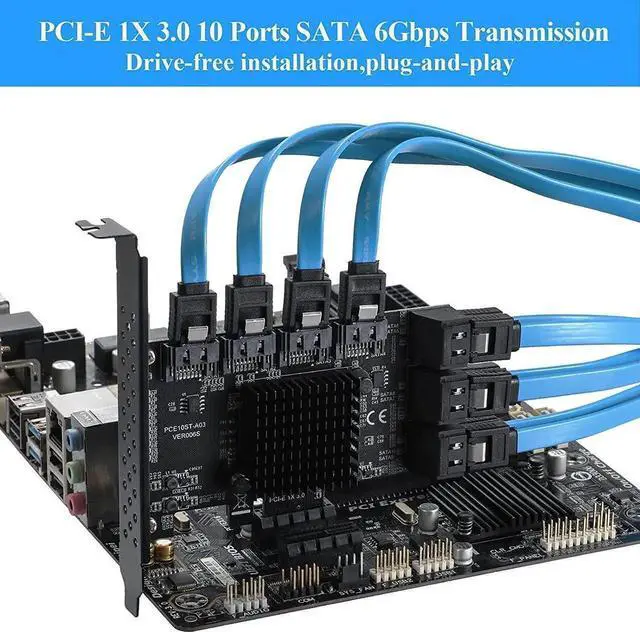

10 Ports PCI-E to

SATA 3.0: This PCIE SATA CARD allows you to add 10 SATA 3.0 6Gbps devices to your computer. No need to drive, plug and play.

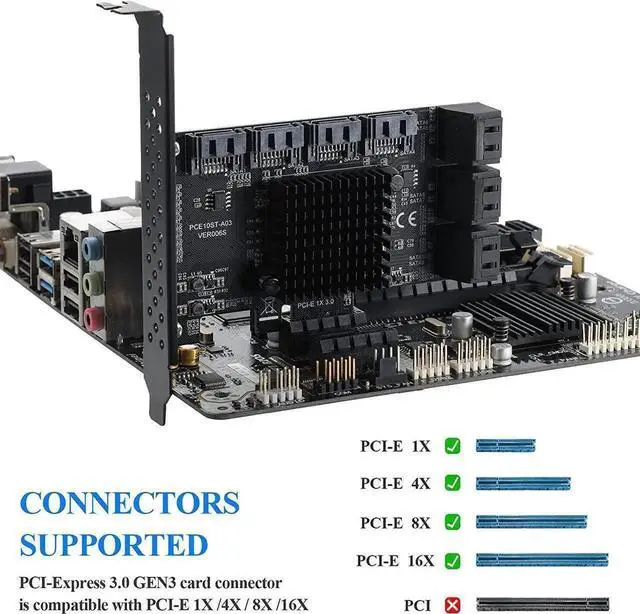

PCI-Express X1 interfaceCompatible with PCI-Express X1 /X4 /X8 /X16 slots. (Recommended under PCI-E 3.0, faster use)

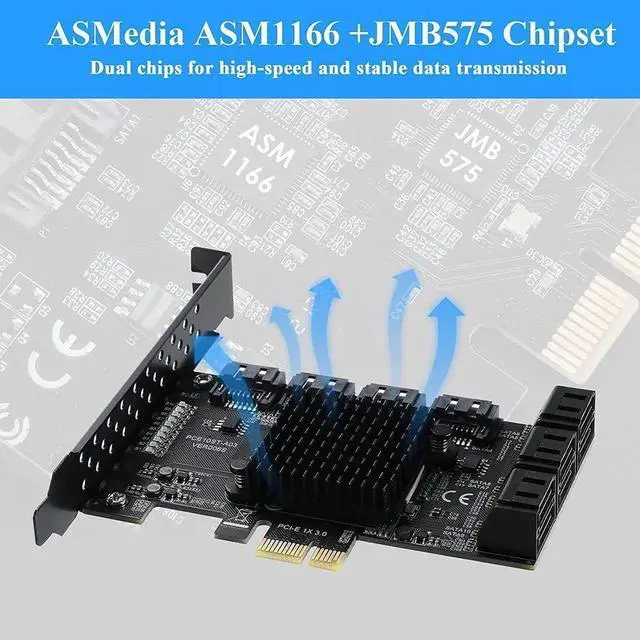

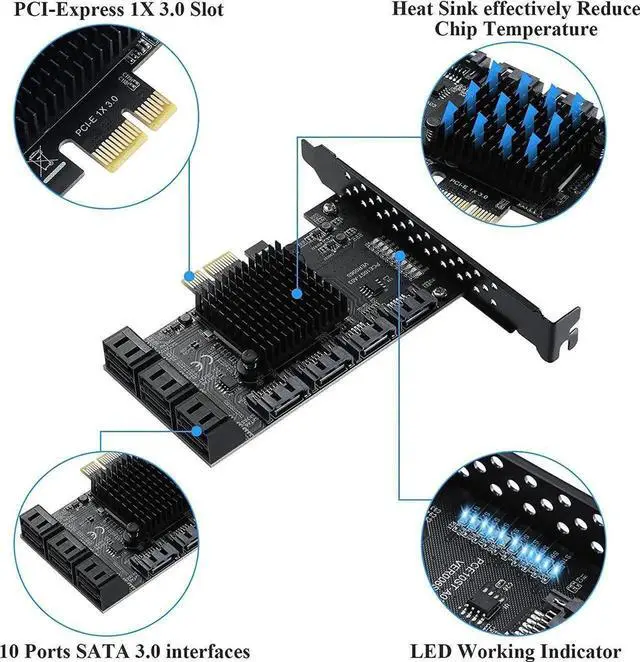

Powerful chip: ASMedia ASM1166 Chip, with heat sink, long-lasting high temperature resistance, high-speed and stable transmission.

System support: Compatible with Windows/8/10/Ubuntu/Linux. Support SATA interface hard disk/optical drive/SSD solid state drive.

Compatible with SATA 3 (6Gbps), SATA 2 (3Gbps), SATA 1 ( 1.5G bps)Comply with PCI-Express 3.0 specification and backward compatible with PCI-Express 2.0.

Product name: 10-port SATA 3.0 expansion card

Product interface: PCI-E1X

Product chip: ASM1166

Support system: Windows 8 / Windows10 / Ubuntu /Linux.

(Synology can only recognize 4 hard drives; WIN7 users are not recommended to buy)

Specification:

Comply with Serial ATA 3.0 specification, backward compatible with SATA 2.0 / SATA 1.0

Comply with PCI-Express v 3.0 specification and backward compatible with PCI-Express v 2.0 / 1.0.

Support 6.0G b/s, 3.0 Gbit/s and 1.5 Gbit/s

Support hot swap.

Compatible with SATA6G, 3G and 1.5G hard drives

Motherboard applicable slot PCI-E 1X and above

Note: RAID is not supported. The RAID in INTEL only applies to raw SATA. It is an expansion card that cannot support third-party chips.

Speed description information:

1. Use SATA 3.0 data cable to achieve the best results.

(We recommend using this SATA 3.0 card in the PCIE 3.0 slot to get the fastest speed. )

2. PCI-E requires a slot above V 2.0. For V 1.0, the speed will not exceed 250M.
