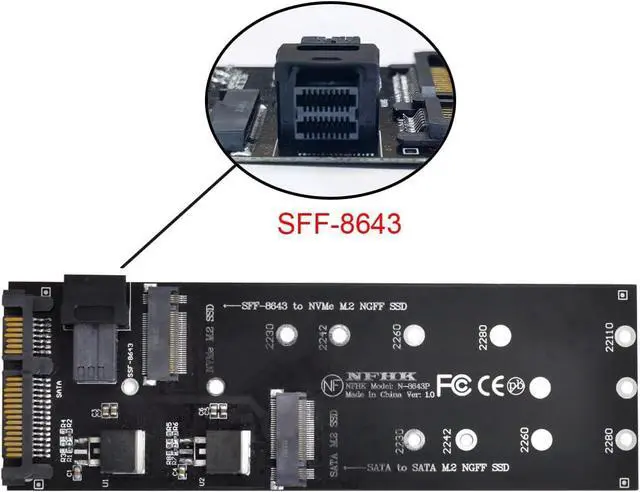

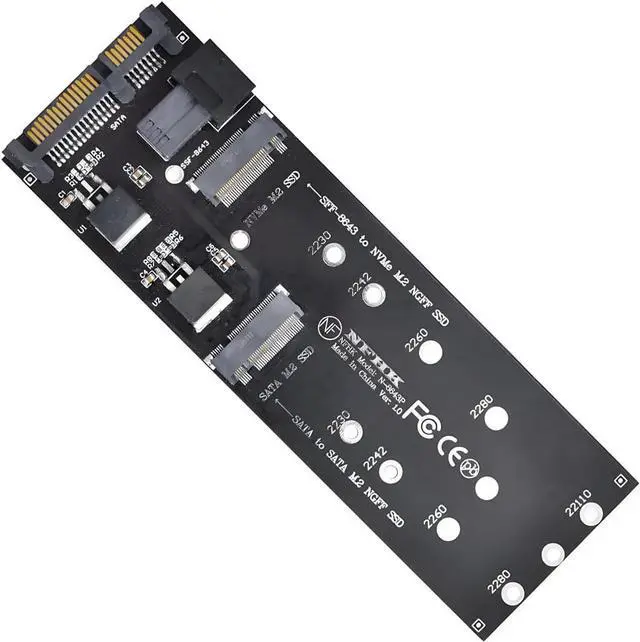

SFF-8643 to U2 Kit NGFF M-Key to HD Mini SAS NVME PCIe SSD SATA Adapter for Motherboard

1) This adapter card simply combines SATA to NGFF and PCIe to NVMe SSDs onto one card, allowing the two SSDs to be used independently.

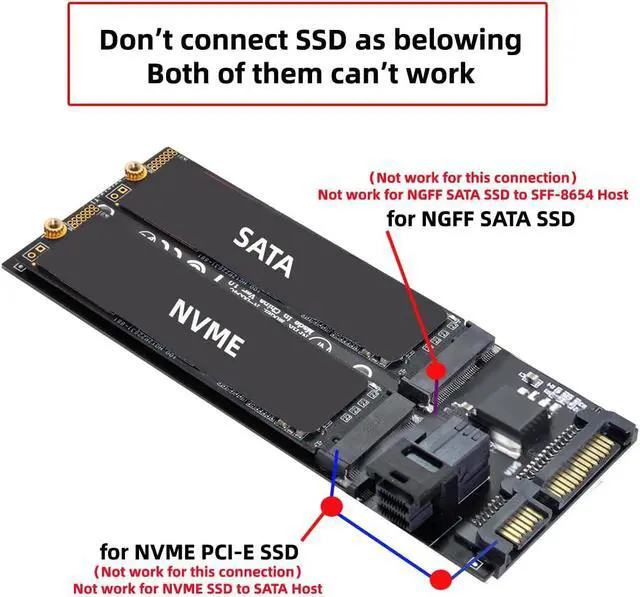

2) The card not work for NVME M-key SSD to SATA host, Also can't work for NGFF B-key SD to PCIE host; It only can work for NVME M-key SSD to PCIE or NGFF B-key SSD to SATA.
3) Supports M.2 modules in format 22110 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA or PCIeHyper Kit Storage controller,Ultra PCI-E Card (PCIe 3.0 x4),The card only work for PCI-E SSD.(Not work for SAS or HD Mini SAS HD)

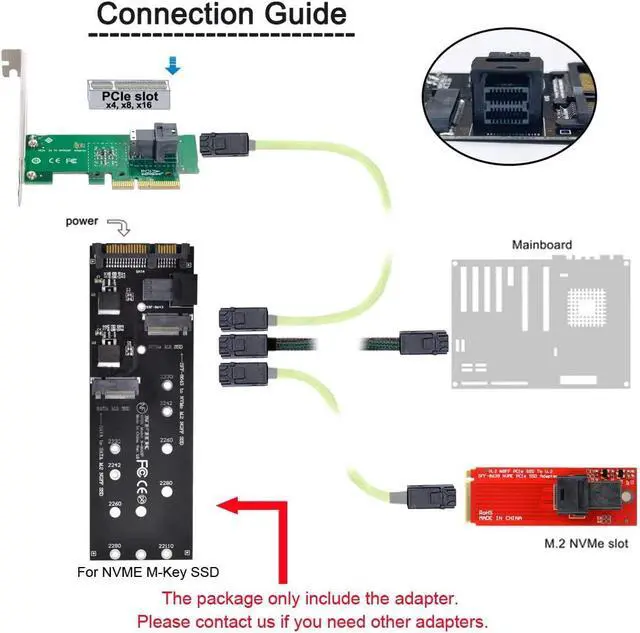

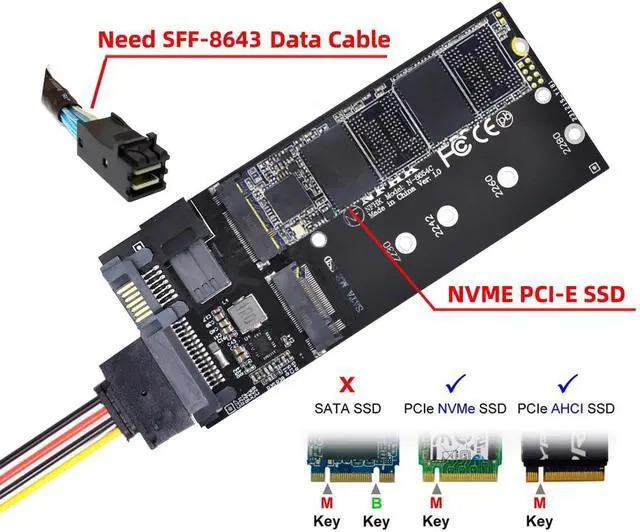

4) This U.2 M.2 converter enables two different usage applications.1. One M.2 PCIe SSD in 22110, 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SFF-8643 HD Mini interface.

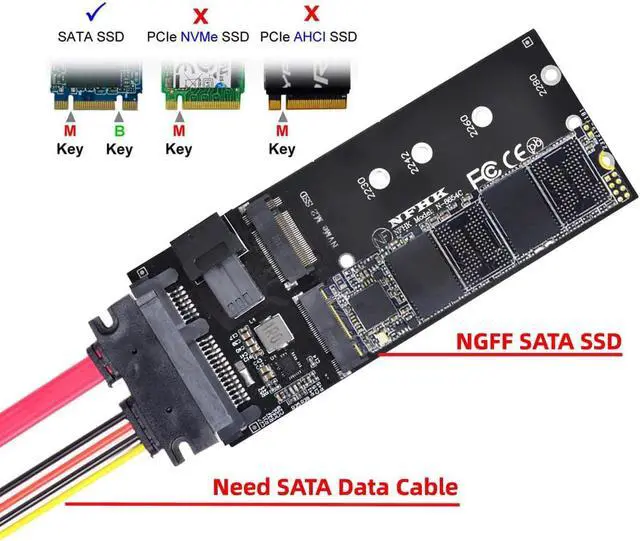

5) 2. One M.2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SATA 22pin interface.
