    JVFYI PCI VT6421 SATA-150 + PATA RAID Card (Apply to VT6421 3SATA+IDE/1e SATA+1IDE+2SATA Products)

    Limited time offer, ends 01/18 By BRIGHTOR

    Be the first to review this product...
    • eatures and Benefits
    • * Compliant with Serial ATA 1.0 specification
    • * Compliant with PCI Specification, revision 2.2
    • * Provides three independent channels to connect two SATA and one PATA hard disk drive(1x external eSATA I, 2x internal SATA I, 1x internal PATA IDE specification)
    • * Supports up to UDMA6 transfer mode of PATA
    • * Supports up to 4 storage device connection
    • * Supports RAID 0, 1, 0+1 and JBOD functions
    • * Supports drives with capacities larger than 137GB
    • * Data transfer rate:
    • eSATA / SATA up to 1.5 GB/s
    • PATA up to 133 Mbps
    • * Supports Windows® 2000, XP/2003 32/64 bit, Vista 32/64 bit
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Connectors

    * 2 x internal SATA connectors

    * 1 x external SATA connectors

    * 1 x PATA connector


    System Requirements

    * Pentium-class computer with one available PCI slot

    * Windows® 2000, XP/2003 32/64 bit, Vista 32/64 bit




    Package Contents

    * 1 x PCI SATA + PATA Raid Card

    * 1 x Driver CD

    * 1 x Users Manual



    Optional Accessories

    * ATA 133 IDE Cable

    * SATA Data Cable

    * SATA Power Cable

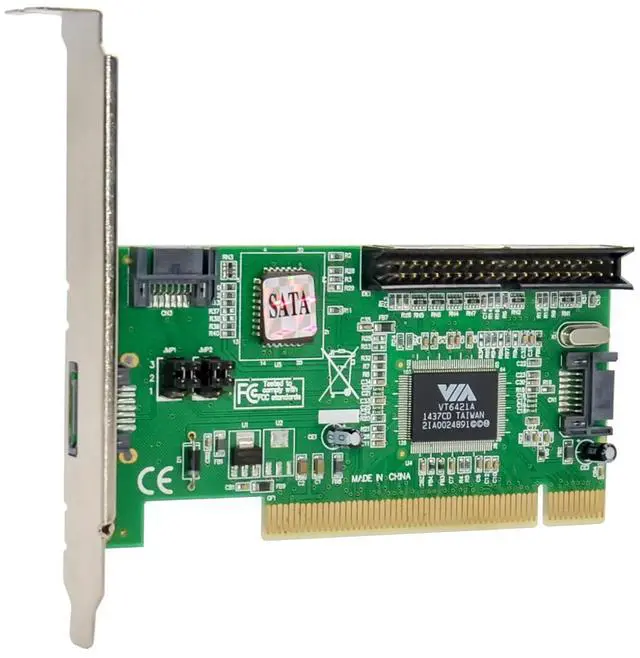

    Jumper Setting:

    Note: There are 2 SATA ports and 1 eSATA port. We name these ports from CN1 to CN3. Changing the jumper setting allows you to select between external and internal ports to use.

    Jumper Settings (Default Mode: 2~3 close)



    Jumper Description Active Port

    JMP1-JMP2 1-2 Close CN1 and CN2 are working

    2-3 Close CN1 and CN3 are working
