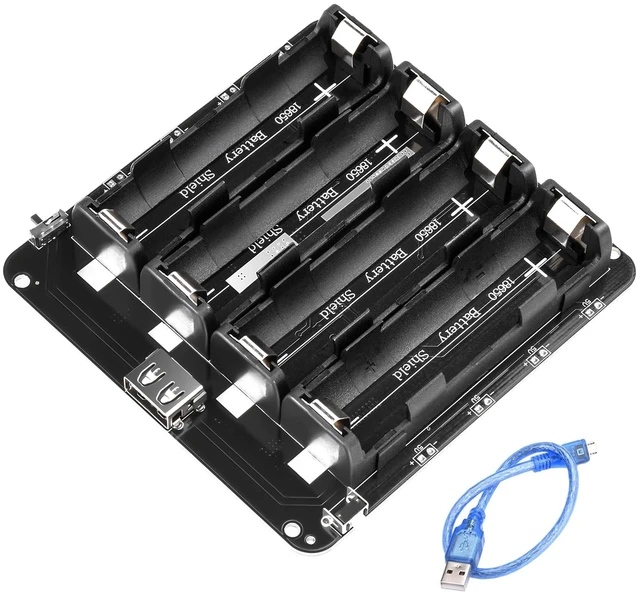

Product Parameter

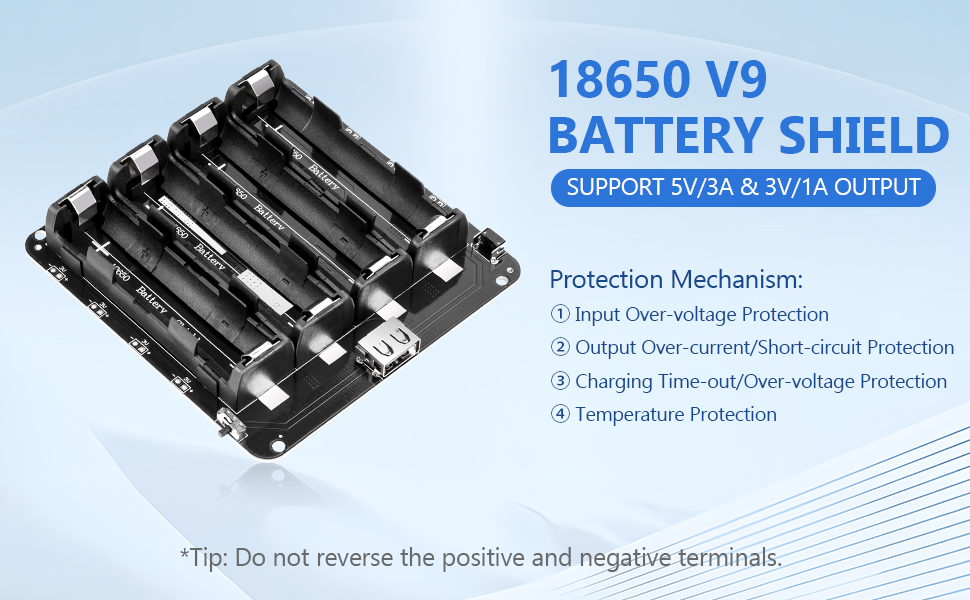

- This mobile power built-in lithium battery protection IC, with over-current, over-voltage, under-voltage and over-temperature protection
- 1.5A charging 3A discharging highly integrated mobile power IC

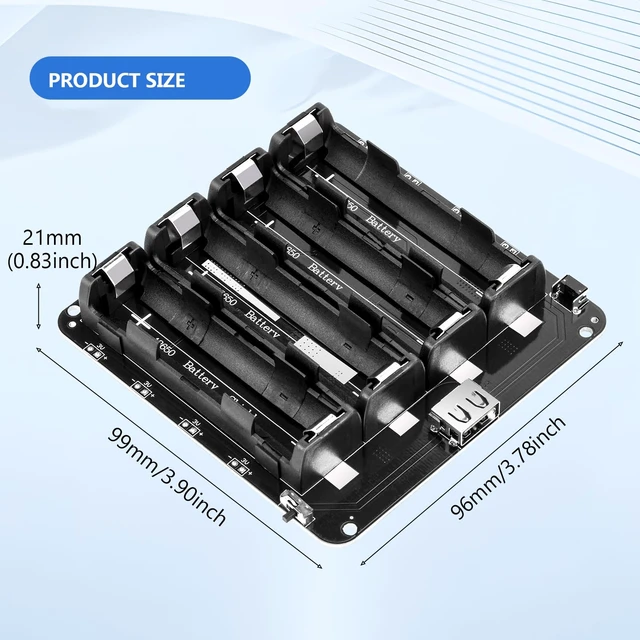

- Main board size: 99mm*96mm*21mm/3.90in*3.78in*0.83in

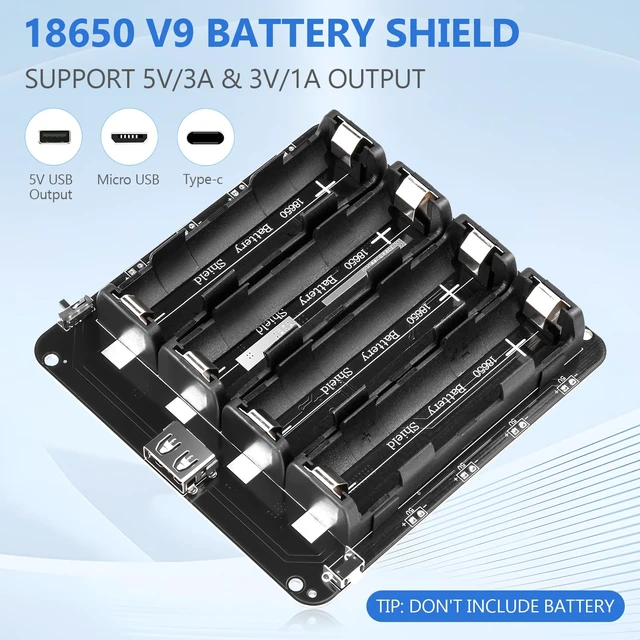

- Input port: Micro USB/Type-C
- Input Requirements: 5V constant voltage power supply can be done charging power input, matching charger 5V1A or above
- Output port: USB or expansion port

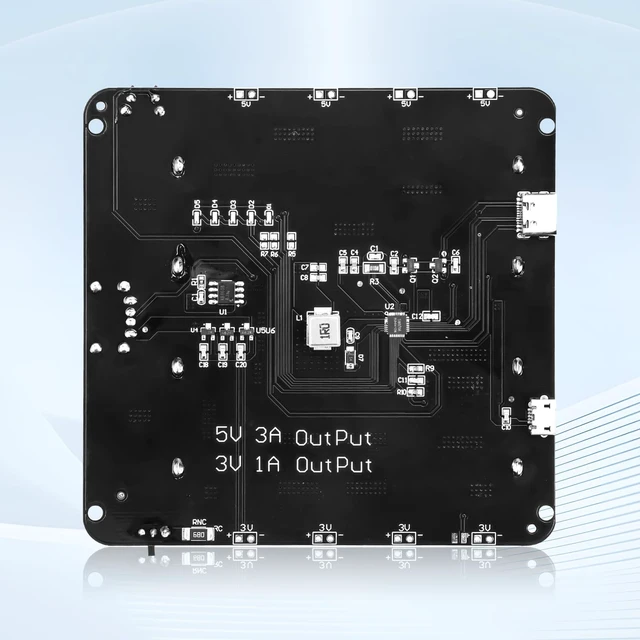

- Output parameters 5V/3A or 3V/1A
- Conversion efficiency up to 95% (high conversion rate)
- Operating temperature: -20 ? ~ 70 ?/-4? ~ 158?
Operation instructions:
1.Click to power on
2. key press three shutdown / (non-automatic shutdown mode)
3.charging power display instructions: 100% (five LEDs are fully illuminated) 80-99% (D5 is blinking) 60-80% (D4 is blinking) 40-60% (D3 is blinking) 20-40% (D2 is blinking) 0-20% (D1 is blinking)
4.discharge power display instructions: 80-100% (five LEDs are fully lit) 60-80% (D5 lights out) 40-60% (D4, D5 lights out) 20-40% (D3, D4,D5 extinguished) 5-20% (D2, D3, D4, D5 extinguished) 1-5% (D1 is flashing) 0% (all extinguished)
5.Intelligent input and output, do not have to worry about charging time is too long, free from the user's worries

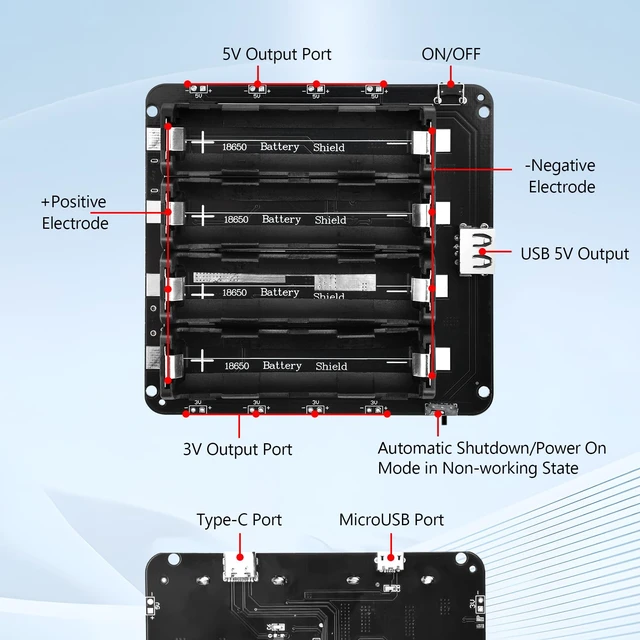

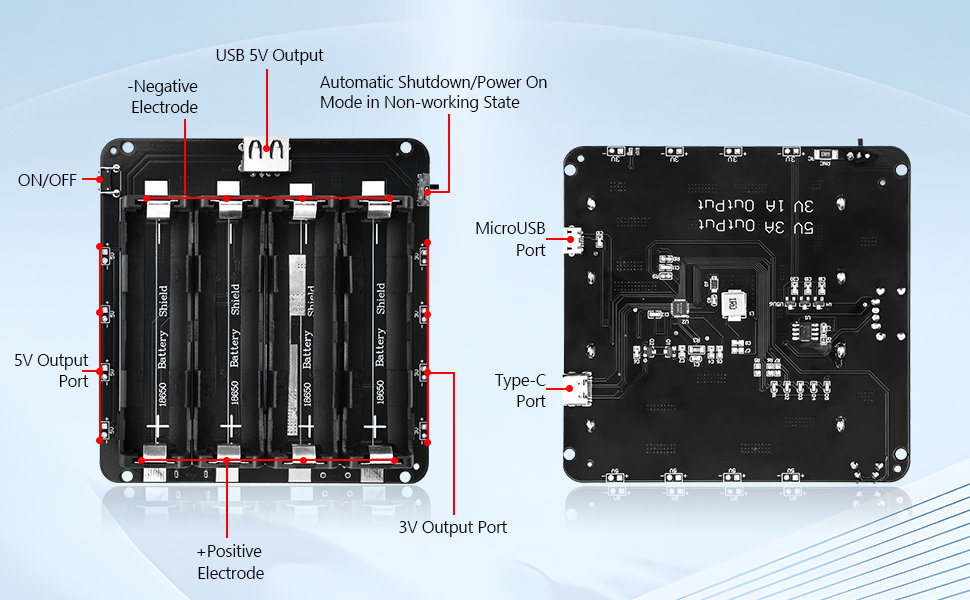

Wiring Dirgram
