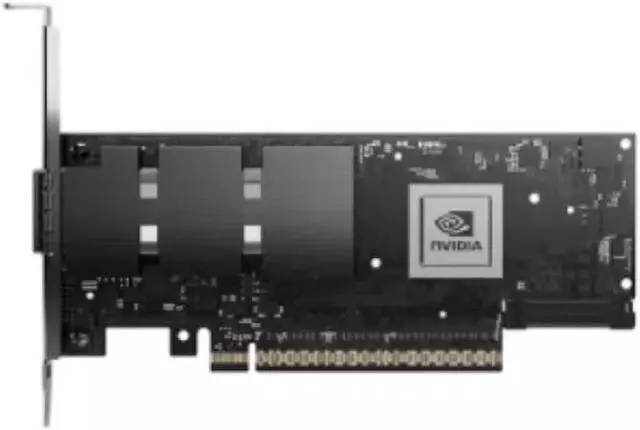

MCX755106AC-HEAT ConnectX-7 Adapter Card 200GbE/NDR200 Crypto Enabled - PCI Express 5.0 x16 - 2 Ports - Optical Fiber - OCP 3.0 Bracket Height - QSFP112

Adapter card
Dimensions: PCIe half height and half Length 2.71 inches x 6.6 inches ( 68.90 mm x 167.65 mm)
Interface: PCI
Express Interface: Gen
4.0 / 5.0: SERDES@16/32GT /s, x16 channel (compatible with Gen 3.0 )
Network port: single OSFP InfiniBand and Ethernet
Data rate: the InfiniBand (default mode) NDR200 / HDR/HDR100 / EDR/FDR/SDR
Ethernet: 200/100/50/40/10/1 Gb/s Ethernet
Protocol support: Infinta v 1.5 a
Automatic negotiation: NDR200 (2 channels x 100Gb/s) port, HDR (50Gb/s) port, HDR100 (2 channels x 50Gb/s) port, EDR (25Gb/s) port, FDR ( 14.0625G b/s) port, 1X/2X/4X SDR ( 2.5G b/s per channel).
Ethernet: 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2, 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, Cau-4 C2M, 25GAUI C2M, XLAUI C2M, XLPPI, SFI
Electrical and thermal specifications: Voltage: 12V, 3.3VAUX
Maximum current: 100mA
Maximum power available through the OSFP port: 17W (not supported by heat dissipation)
Ambient temperature: Operating 0°C to 55°C; Non-operating -40°C to 70°C
Humidity: Operating 10% to 85% relative humidity; Non-operating 10% to 90% relative humidity
Altitude (operating) 3050 m
Safety: CB/cTUVus/CE
Electromagnetic compatibility: CE/FCC/VCCI/ICES/RCM/KC
RoHS: complies with the RoHS standard
