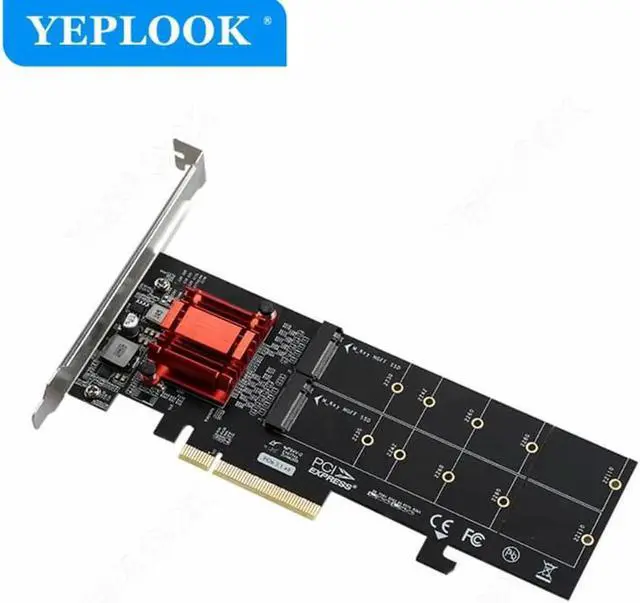

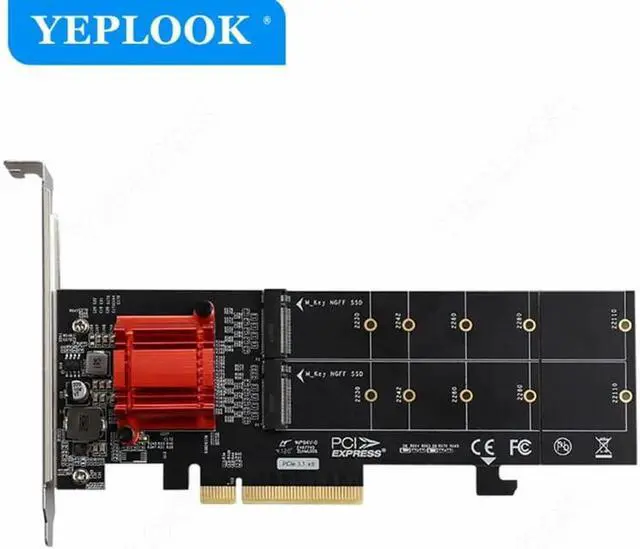

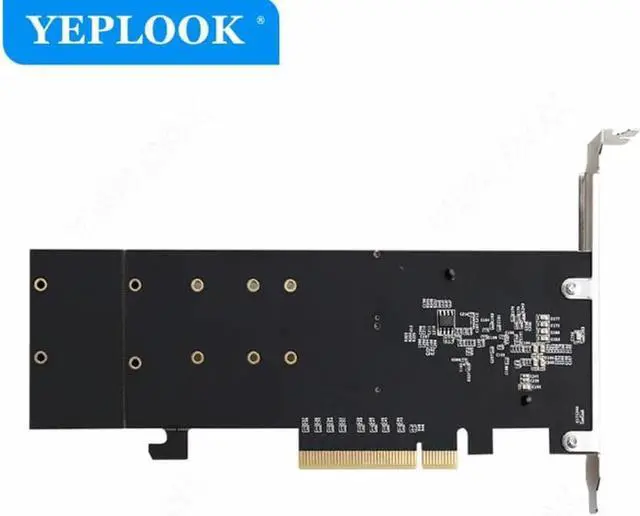

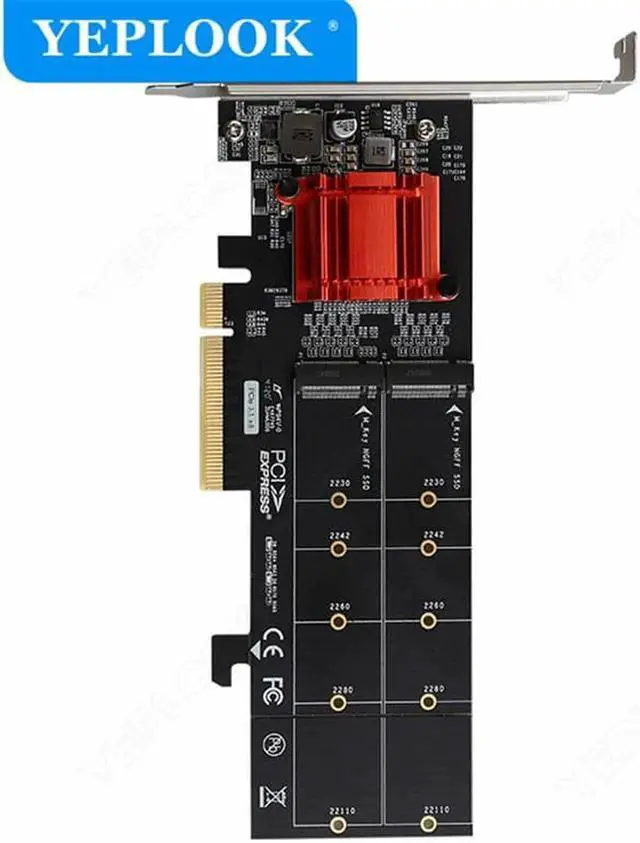

JAENFONG PCIe 3.1 X8 to 2 Port M.2 2Gbps for NVME M Key 2230 2242 2260 2280 22110 SSD Adapter Converter Expansion Riser Card ASM1812 Chip

PCIe 3.1 X8 to 2 Port M. 2 2Gbps for NVME M Key 2230 2242 2260 2280 22110 SSD HDD Adapter Converter Expansion Riser Card ASM1812 Chipset

Note:

1. Pls check the thickness of your SSD carefully, the fastener included is for standard size of SSD (with about 8mm thickness).

2. pls make sure your motherboard support Splitting the PCIe channel before buying.

Features:

PCIe 3.1 x 8 to 2 m2 port SSD adapter, dual expansion card m-key to Pci-e converter for NVME 2230-22110 SSD

Using Asmedia/ASM1812 chip controller, supported NVME protocol

Support five SSD sizes: 2230, 2242, 2260, 2280, 22110

High-speed PCIE 3.1 transmission.

Contains metal heat sink for strong heat dissipation.

Backwards compatible with PCIe 2.0 and PCIe 1.0

No driver is required because the driver is transparent to the operating system

Support operating system: Linux kernel 3.17 or above, Win7, Win8, Win 8.1, Win10 32or 64bit

Specification:

Support Interface: 2x m2 (for NVME) Interface

Motherboard Interface: PCIE 3.1X 4

Actual Read and Write speed: about 2GB/s

Adopt: Asmedia /ASM1812 chip

Size: approx 180x55mm/ 7.09 x 2.17 in

Supports SSD Size: 2230, 2242, 2260, 2280, 22110

Package Includes: 1 x PCIe 3.1 X8 to 2 Port M. 2 Hard Disk Expansion Card
