VIVO 2x3 Pop-Out Video Wall Mount (Fits 6 TVs) for 37 to 65 Plasma Screens

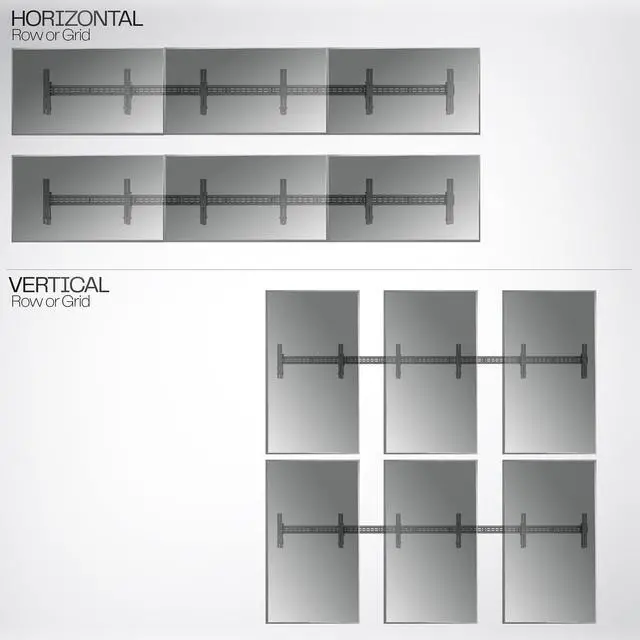

- Video Wall Mount System: This 2x3 portrait or landscape video wall mounting system holds a 6-television display thats perfect for home theaters, offices, and other professional settings
- Fits 37 to 65 Screens: This wall mount system supports 37" to 65" TVs with VESA 100x100, 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, or 600x400 mounting patterns

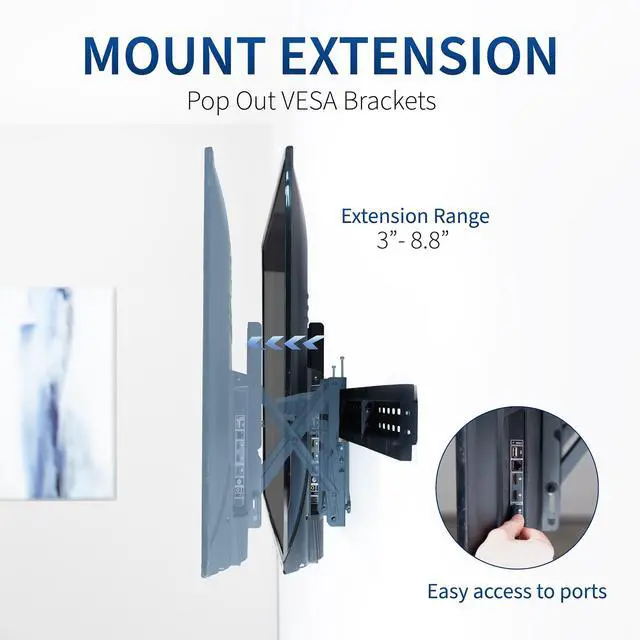

- Pop-Out Design: Push-in, pop-out VESA bracket arms make it easy to access the back of your TVs for hardware installation, port access, and more
- Up to 924 lbs Support: Strong steel rails support 154 lbs per screen (924 lbs total) when installed to concrete and 110 lbs per screen (660 lbs total) when installed to wood studs
- Screen Leveling and Adjustment: After your screens are installed, the mounting brackets provide +3° to -3° swivel, 0 to -1.5° tilt, and sliding capability to get your TVs perfectly aligned just how you want them
Any questions? Ask CelesteSM will help you find out quickly.

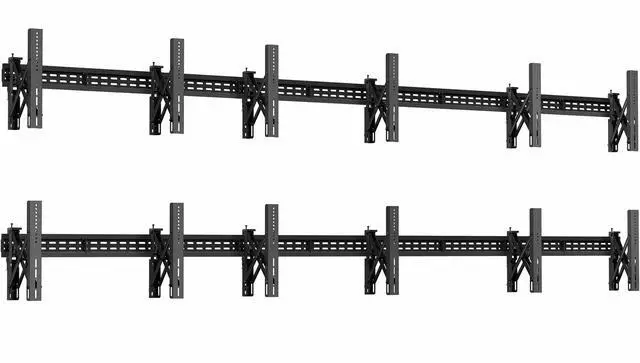

Create an impressive video wall with the Pop-Out 2x3 Video Wall Mounts (MOUNT-VW65-6) from VIVO! Designed for 37 to 65 TVs weighing up to 154 lbs each (when installed to concrete), this horizontal rail system will hold your screens safe and secure. The pop-out VESA brackets let you access ports and install hardware after the screens are mounted, and micro-adjustments provide screen-leveling to get your TVs perfectly aligned just how you want them. We provide a pre-assembly measurement guide to help you plan out your new video wall, and hardware is provided for both wood stud and concrete installation.
Compatibility
- TV Sizes: 37 to 65
- VESA Standard (mm): 100x100, 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
- Weight Capacity for Concrete Applications: 154 lbs (per display), 924 lbs (total)
- Weight Capacity for Wood Stud Applications: 110 lbs (per display), 660 lbs (total)
Specifications
- Color: Black
- Material: Steel

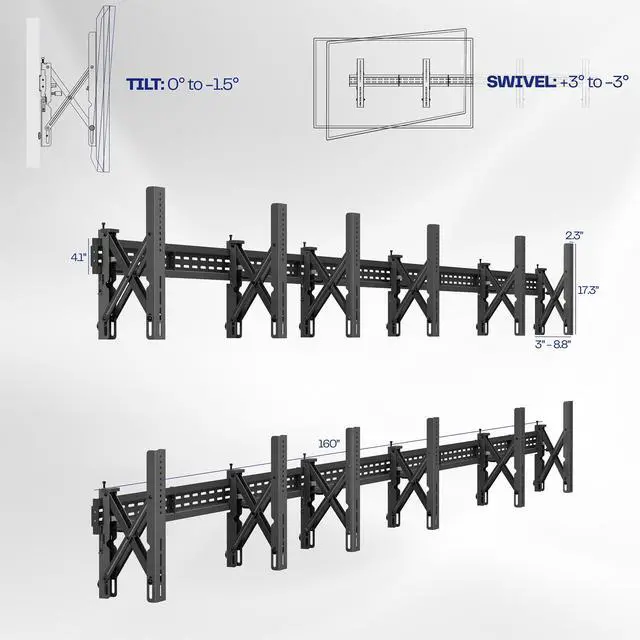

- Wall Bracket Dimensions: 160" x 1 x 4.1 (x2)
- VESA Bracket Dimensions: 17.3 x 2.3 x (3 to 8.8)
- VESA Bracket Extension: 3 to 8.8
- Tilt: 0° to -1.5° (via adjustment knobs)
- Swivel: +3° to -3° (for screen leveling)
- Orientation: Portrait or Landscape
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by VIVO Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
The VIVO 2x3 Pop-Out Video Wall Mount is a wall-mount system for six 37–65-inch TVs, suited to home theaters, offices, and professional spaces that need a portrait or landscape video wall. Its pop-out brackets provide access behind mounted screens, while sliding and leveling adjustments help align the displays.
Recommended For
- AV integrators and commercial installers building a fixed 2×3 display for digital signage, control rooms, or other multi-screen installations; the system supports six TVs and includes screen-leveling adjustments.
- Offices, venues, or home-theater planners who need six displays arranged together in portrait or landscape and have enough wall space for the wide rail system.
- Installers who expect to access TV ports or hardware after mounting; the pop-out brackets extend to provide access behind each screen.
- Planners working with compatible 37–65-inch TVs who can confirm the displays’ VESA patterns and the wall’s load-bearing suitability before installation.
Real-World Use Scenarios
- In an operations or security room, staff can use the six-screen wall to keep camera views, maps, and dashboards visible together; a video-wall controller or compatible system is needed to arrange the content.
- At a store, reception area, or lobby, the wall can present large-format promotions, announcements, or brand visuals so visitors can see them across the space; content management equipment or software is separate from the mount.
- In a meeting or training room, presenters can use the combined display area for charts, slides, and video that need to be visible to a group; a video-wall system determines how the content is distributed across the TVs.
- In a broadcast or AV production room, operators can keep several program feeds or production views visible at once, making it easier to monitor what is happening without relying on a single screen.
- When an installer needs to reach a TV’s ports or connected hardware after the wall is assembled, the pop-out brackets provide rear access for cabling or adjustments without first removing the screen from its mount.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Six-screen 2×3 television video walls for home theaters, offices, or professional settings |
| Mounting And Screen Compatibility | Wall mount for televisions; internal catalog lists capacity for screens under 60 inches |
| Load Capacity | Supports up to 154 lb per screen |
| Adjustment | Screen-leveling adjustment with up to −1.5° tilt |
| Construction And Color | Alloy steel construction in black |
| Dimensions | 160 × 8.7 × 17.3 inches (L × W × H) |
| Brand And Model | VIVO MOUNT-VW65-6 |
Reference Q&A
Q: VIVO 2x3 vs 2x2 video wall mount: which should I choose?
A: Choose the VIVO 2x3 Pop-Out Video Wall Mount when you want six TVs arranged in two rows of three. Choose the VIVO 2x2 Pop-Out Video Wall Mount for a four-TV, two-by-two layout. Both support 37- to 65-inch screens, portrait or landscape orientation, and pop-out brackets for rear access.
Q: Should I get the VIVO 2x3 or 1x2 pop-out video wall mount?
A: Choose the VIVO 2x3 mount for a six-screen grid arranged in two rows and three columns. Choose the 1x2 mount for a two-screen arrangement. Both models support 37- to 65-inch TVs, portrait or landscape orientation, and pop-out access to the backs of the screens.
Q: VIVO 2x3 vs 1x4 video wall mount: which fits a six-screen setup?
A: Choose the VIVO 2x3 mount when you want six screens in a two-row-by-three-column grid. The VIVO 1x4 Pop-Out Video Wall Mount is designed for four screens in a single row. Both support 37- to 65-inch screens and allow portrait or landscape orientation.
Q: Will this mount fit my TVs?
A: It is designed for six 37–65-inch TVs with one of these VESA patterns: 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, or 600×400 mm. Check each TV’s VESA pattern and weight before buying; screen size alone does not confirm compatibility.
Q: How much weight can it support?
A: The listed limit is up to 154 lb per screen, or 924 lb total, when installed to concrete; for installation to wood studs, it is up to 110 lb per screen, or 660 lb total. Confirm each TV’s weight and follow the mount’s installation requirements.
Q: Can I access the backs of the TVs after mounting them?
A: Yes. The push-in, pop-out brackets let each screen extend away from the wall for access to its ports and mounting hardware. This is useful for installation and servicing, but the mount is designed as a fixed video-wall system rather than for routine viewing-angle repositioning.
Q: Who is this six-TV mount suitable for?
A: It is intended for a 2×3, six-screen video wall in settings such as offices, home theaters, and professional display spaces. It supports portrait or landscape placement and includes limited post-installation adjustments to help align the screens; it is not a single-TV mount.
