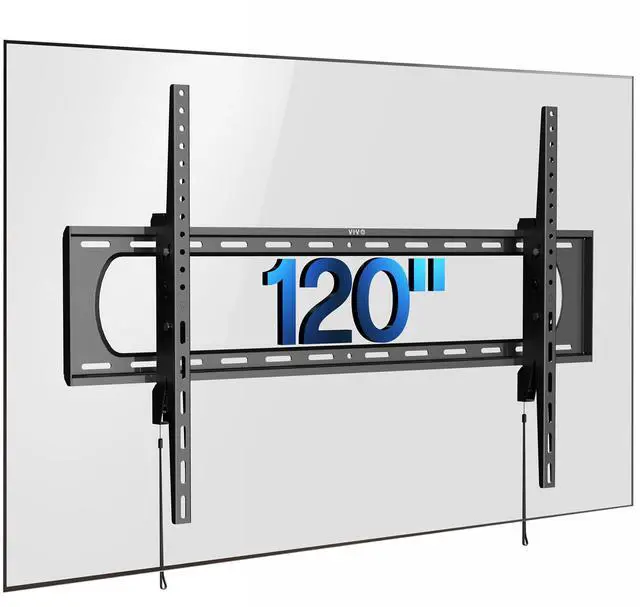

VIVO Heavy Duty Tilting TV Wall Mount for up to 120" Curved and Flat Screens
- Ergonomic TV Wall Mount: Secure your large screen in an optimal viewing location. Perfect for home theaters, conference rooms, classrooms, restaurants, and more
- Fits 60 to 120 Screens: Compatible with flat and curved screens 60 to 120 in size and up to 264 lbs in weight. Supports VESA 50x50mm to 900x600mm mounting patterns
- Innovative Design: Open architecture provides superior ventilation and easy access for A/V and power cords while keeping a low profile, displaying extra large flat screens just 2.5 from the wall

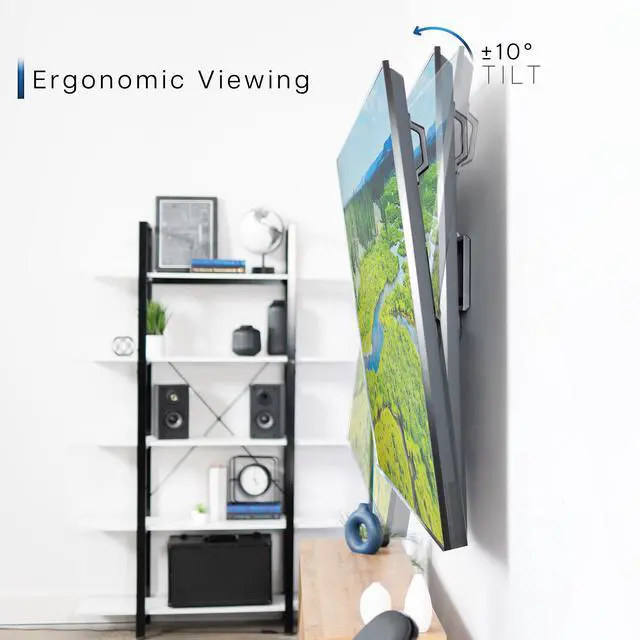

- Tilting Mechanism: Creates +10° to -10° tilt for effortless screen positioning that provides comfortable viewing angles and reduced screen glare
- Simple Setup: Assembly is an easy process with all hardware and step-by-step instructions included. Click-in spring locks with simple release cords make mounting and unmounting a breeze
Any questions? Ask CelesteSM will help you find out quickly.
Enhance your viewing experience with the Heavy Duty Tilting Extra Large TV Wall Mount (MOUNT-VW120T) from VIVO! Supporting 60 to 120 screens weighing up to 264 lbs with 50x50mm to 900x600mm VESA hole patterns, this mount was built to perform. Features include solid steel construction for strength and durability, open architecture for superior ventilation and easy access to wiring, click-in spring locks with simple release cords for screen mounting and removal, and tilt adjustment for effortless screen positioning. The sleek bracket holds your TV just 2.5" from the wall for a low-profile appearance and is perfect for any home theater or business environment. Assembly is an easy process, and we provide all the hardware to get your screen properly mounted in no time!
Compatibility:
Screen Sizes: 60 to 120
Screen Types: Flat and Curved
Mounting Options: Wood Stud Wall, Concrete/Brick Wall

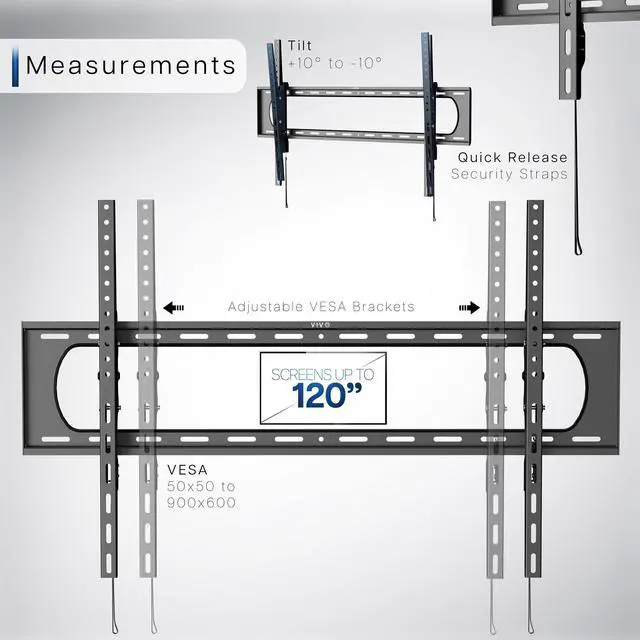

VESA Compatible (mm): 50x50, 75x75,100x100,100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 400x600, 600x200, 600x300, 600x400, 600x600, 800x400, 800x500, 800x600, 900x600
Weight Capacity: 264 lbs
Specifications:
Color: Black
Material: Steel

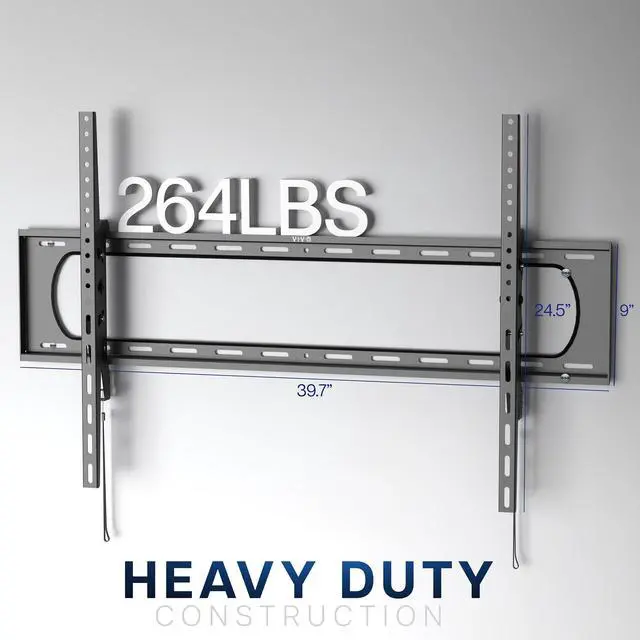

Wall Mount Dimensions: 39.7 x 9
VESA Bracket Dimensions: 24.5 x 1.1
Tilt: +10° to -10°
Profile to Wall: 2.5
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by VIVO Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
The VIVO Heavy Duty Tilting TV Wall Mount is a low-profile mount for large flat or curved TVs, suited to home theaters, classrooms, conference rooms, and restaurants. Newegg’s listing describes 60–120-inch screens and up to 264 lb, while its specifications also state a TV capacity under 110 inches.
Recommended For
- Home-theater owners mounting a 60–120-inch TV in a fixed viewing position who want a low-profile mount with vertical angle adjustment.
- People mounting a large TV above seated eye level who need to tilt the screen up or down to adjust the viewing angle or reduce glare.
- Conference rooms, classrooms, and restaurants that need a fixed large-screen display with tilt adjustment rather than movement around the room.
- Installers whose large flat or curved TV has a compatible VESA pattern and needs a heavy-duty wall mount rated for screens up to 264 lb.
Real-World Use Scenarios
- In a home theater, mount a very large flat or curved TV on the wall to free up floor space; the low-profile setup keeps the screen close to the wall while allowing a small tilt adjustment for the seating position.
- In a conference room or classroom, place a large shared display where people can view presentations from around the room; tilt the screen to better suit the audience’s viewing angle.
- In a restaurant or other business, mount a large screen for shared viewing of video or presentations; the wall-mounted setup avoids using a floor stand, and the open bracket leaves access to cables.
- When a TV must sit higher than the main seating area, angle it downward so viewers can look more directly at the screen instead of viewing it straight on from below.
- In a bright room, use the mount’s tilt adjustment to change the screen angle and help reduce reflections that interfere with viewing.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Wall-mounting large televisions in home theaters, conference rooms, classrooms, and restaurants |
| TV Size Capacity | Listed for TVs under 110 inches |
| Mounting Compatibility | Wall mount for televisions; supports VESA mounting patterns up to 900 × 600 mm and screens weighing up to 264 lb |
| Tilt And Movement | Tilting mount with a maximum tilt angle of 10 degrees and width-adjusting movement |
| Dimensions | 39.7 × 24.5 × 2.5 inches |
| Material And Color | Alloy steel construction in black |
| Model Identifiers | VIVO MOUNT-VW120T |
Reference Q&A
Q: VIVO VW120T tilt mount vs. VW120M full-motion mount: which should I choose for a 100-inch TV?
A: Choose the VIVO VW120T for a close-to-wall setup with up to 10° of tilt in either direction; it holds the TV 2.5 inches from the wall. Choose the VIVO VW120M if you want to extend the TV up to 27.7 inches and swivel it for different viewing positions. Both models support 60- to 120-inch TVs weighing up to 264 pounds and VESA patterns up to 900 × 600 mm.
Q: Should I get the VIVO VW120T or the VW075T for a large TV?
A: Choose the VW120T if you want support for screens from 60 to 120 inches, up to 264 pounds, and VESA patterns up to 900 × 600 mm. The VW075T is designed for 32- to 75-inch TVs weighing up to 165 pounds, with a slimmer 1.7-inch wall profile. The VW120T is the match for larger or heavier displays; the VW075T offers a closer-to-wall fit within its supported size range.
Q: VIVO VW120T vs. VW120M: which gives a lower-profile TV setup?
A: The VIVO VW120T is designed for a lower-profile setup, placing the TV 2.5 inches from the wall. The VW120M folds close to the wall at a 3-inch profile and can extend outward for access and viewing-angle adjustments. Both support 60- to 120-inch TVs up to 264 pounds, so choose based on whether a 2.5-inch fixed position with tilt or a fold-away, extendable mount better fits your setup.
Q: How do I know whether this mount will fit my TV?
A: Check the TV’s VESA hole pattern and weight as well as its screen size. The listing gives a 264 lb maximum and VESA patterns from 50×50 mm to 900×600 mm. It advertises support for 60–120-inch TVs, but its structured specifications also say “<110 in.” Because those size details conflict, confirm compatibility with the seller before buying for a 110–120-inch TV.
Q: Can I swivel or move the TV from side to side after mounting it?
A: The product information lists tilt adjustment of +10° to −10° but does not list swivel, extension, or lateral adjustment. Choose it for tilt positioning, not for moving the screen sideways or pulling it away from the wall.
Q: Is this mount suitable for a very large, heavy TV?
A: It is listed for large flat or curved TVs and has a stated maximum load of 264 lb. Before buying, confirm that the TV is within the mount’s weight and VESA limits; the listing’s conflicting screen-size details should also be checked for TVs above 110 inches.
Q: Can I install it directly on drywall?
A: The product listing specifies wood-stud or concrete/brick wall installation; it does not specify drywall-only installation. Check the installation instructions and wall construction before mounting, and do not assume drywall anchors alone are suitable for a heavy TV.
Q: Will this mount fit my 98-inch TV?
A: It can fit if the TV is 60–120 inches, weighs no more than 264 lb, and has a supported VESA pattern up to 900×600 mm. Check the TV’s exact weight and VESA measurements before buying; a Reddit discussion about a related VIVO VW120M mount also highlights VESA fit as a key compatibility check.
Q: Is a tilting mount worth choosing over a fixed mount for a very large TV?
A: Consider this mount if you want to angle the screen down or reduce glare: it tilts +10° to −10°. Choose a fixed mount if you do not need tilt. A Reddit discussion about large TVs frames tilt versus fixed as a needs-based choice; it does not evaluate this exact VW120T model.
Q: How can I avoid mounting a 98-inch TV too high or too low?
A: Measure the TV’s mounting-hole position and the desired screen height before drilling; do not assume the wall plate belongs at the TV’s center. A Reddit installation discussion about a 98-inch TV describes mount height and measuring as important planning concerns. The VW120T’s tilt range is limited to +10° to −10°, so it cannot compensate for a major height-placement mistake.
