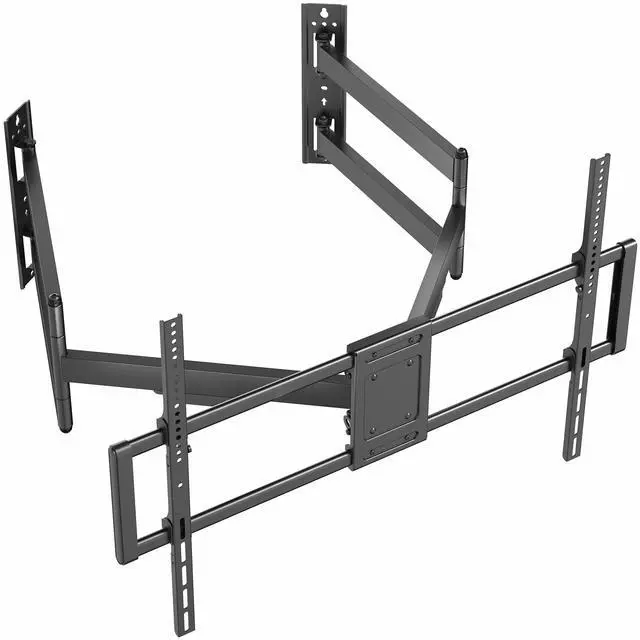

VIVO Full Motion Corner Wall TV Mount Bracket for 46" to 100" Flat Screens

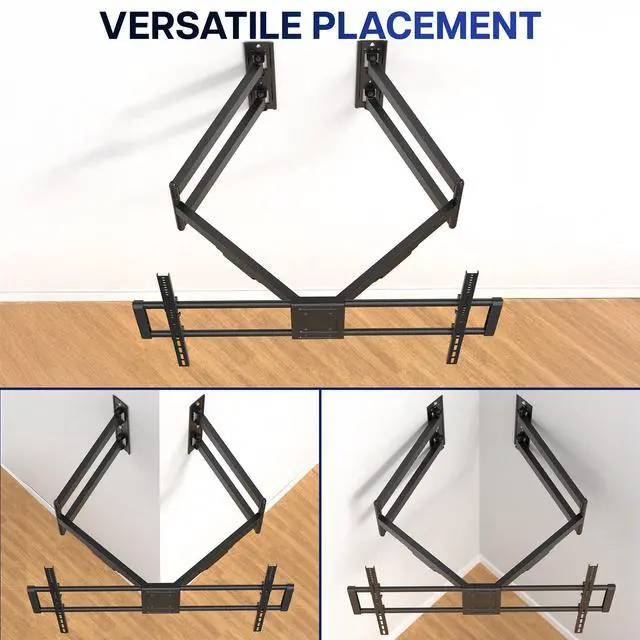

Find the perfect space-efficient mounting solution with Corner Large TV Wall Mount (MOUNT-CR100C) from VIVO! Fitting TVs from 46 to 100 in size, this sturdy mount is constructed entirely of solid steel, supporting up to 176 lbs in weight. The unique separating wall plates are designed to fit a variety of angled corner walls and can also fit the same wall for a regular setup. Features include swiveling arms for side-to-side motion, tilt for glare reduction, and a direction indicator to get your screen perfectly aligned. Mounting is made easier with removable VESA plates, especially when two people slide the TV into position. We provide all the hardware and instructions for proper mounting.

Compatibility

• Screen Size: 46 to 100 TVs

• Screen Type: Flat and Curved Screens

• Mounting Options: Wood Stud, Concrete

• Corner Mounting: Holes should be marked within 24 to 47 from the corner

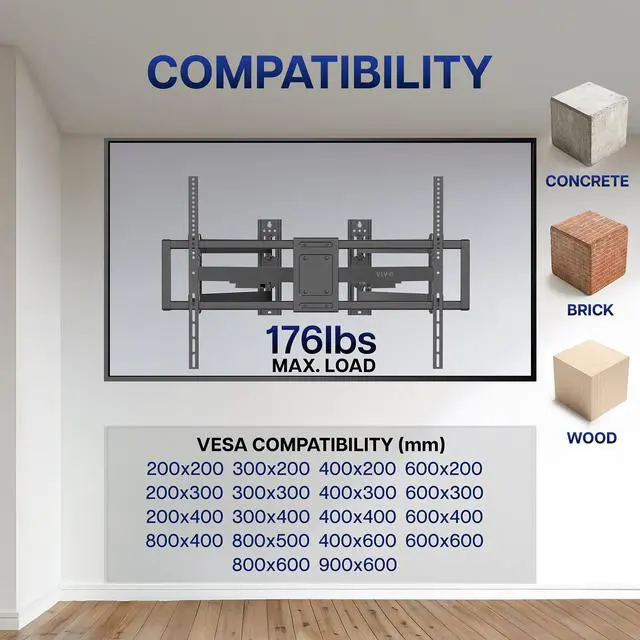

• VESA Standard (mm): 200x200, 300x200, 400x200, 600x200, 200x300, 300x300, 400x300, 600x300, 200x400, 300x400, 400x400, 600x400, 800x400, 800x500, 400x600, 600x600, 800x600, 900x600

• Weight Capacity: 176 lbs

Specifications

• Color: Black

• Material: Steel

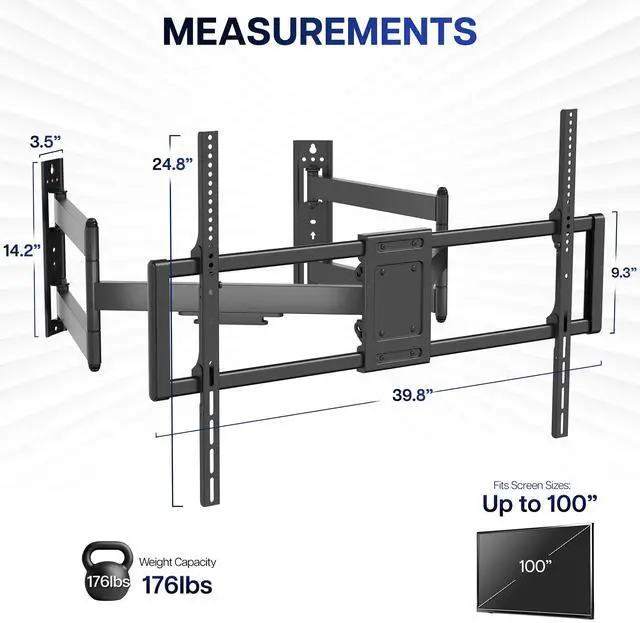

• Extension (Profile): 39 to 55 (at 24 from corner), 31.5 to 59 (at 47 from corner)

• Wall Bracket Dimensions: 3.5 x 14.2 (each)

• Main Bracket Dimensions: 39.8 x 9.3

• VESA Bracket Height: 24.8

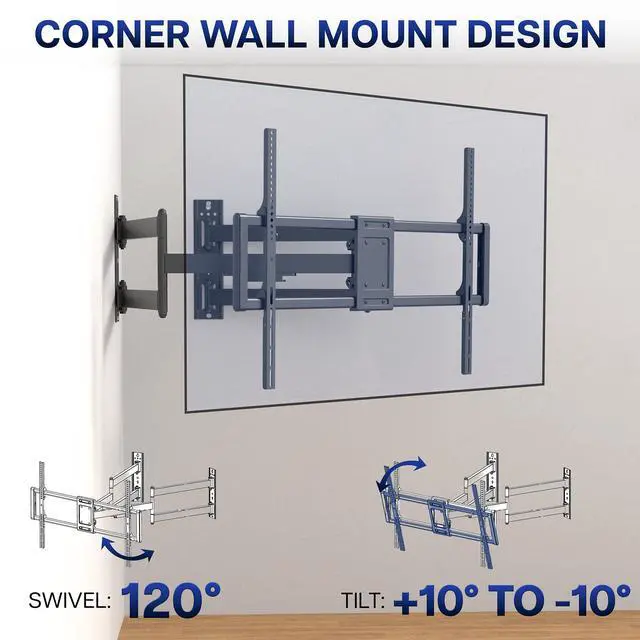

• Tilt Range: +10° to -10°

• Swivel Range: 120°
