VIVO Black Manual Swivel Flip Down Ceiling TV Mount for 40" to 70" Screens

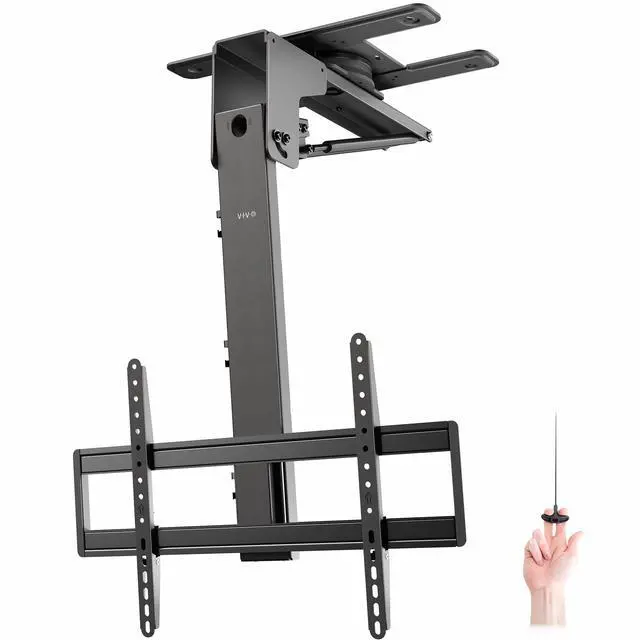

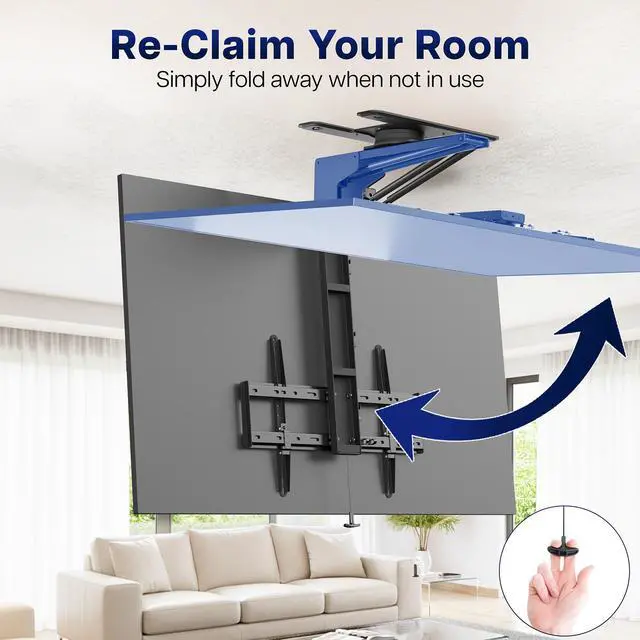

The VIVO Manual Flip Down and Swivel Ceiling TV Mount (MOUNT-M-FD70S) offers an exceptional solution for maximizing space saving by discreetly stowing your television when not in use. Constructed from durable solid steel, this mount features a modern aesthetic suitable for various environments. It is designed to accommodate most 40" to 70" flat or curved screens with a weight capacity of up to 77 lbs, and it is compatible with both flat and pitched ceilings. Effortlessly adjust your screen with a simple pull of the cord. The mount offers versatile movement, including 0° to -90° tilt, a full 360° swivel, and accurate screen leveling for the best viewing angles and to minimize glare. When retracted, the mount maintains a low profile, projecting only 10.25" from the ceiling. Installation is facilitated by the inclusion of necessary hardware and instructions, and integrated clips ensure effective cable management. The mount comes with all the hardware and instructions you'll need for installation.

Compatibility:

• Screen Sizes: 40 to 70

• Screen Types: Flat and Curved

• Ceiling Types: Flat and Pitched Surfaces

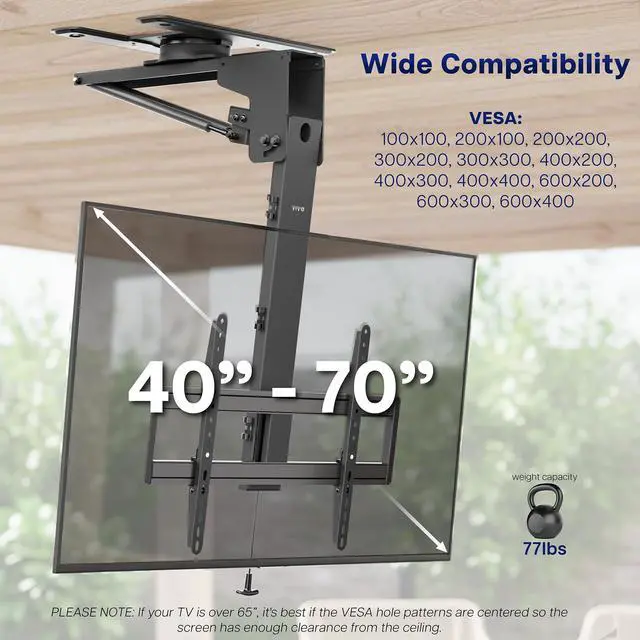

• VESA Standard (mm): 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400

• Mounting Options: Wood Joist (parallel or perpendicular to joists), Solid Wood, Concrete

• PLEASE NOTE: If your TV is over 65, it's best if the VESA hole patterns are centered so the screen has enough clearance from the ceiling.

• Weight Capacity: 77 lbs


Specifications:

• Color: Black

• Material: Steel

• Mount Type: Manual

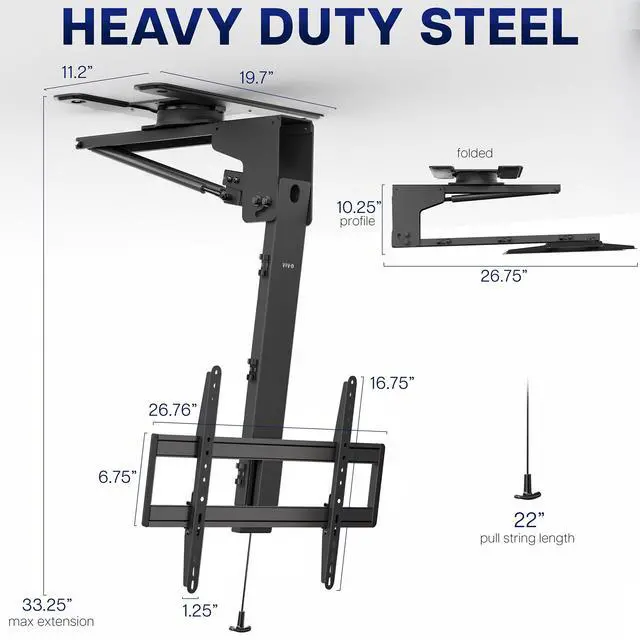

• Product Dimensions: 33.25 L x 26.75 W x 21.75 H

• Folded Product Dimensions: 10.25 L x 26.75 W x 21.75 H

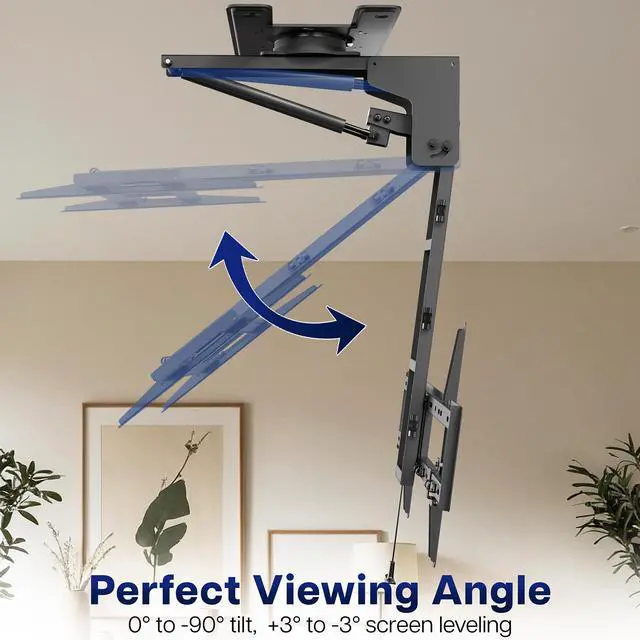

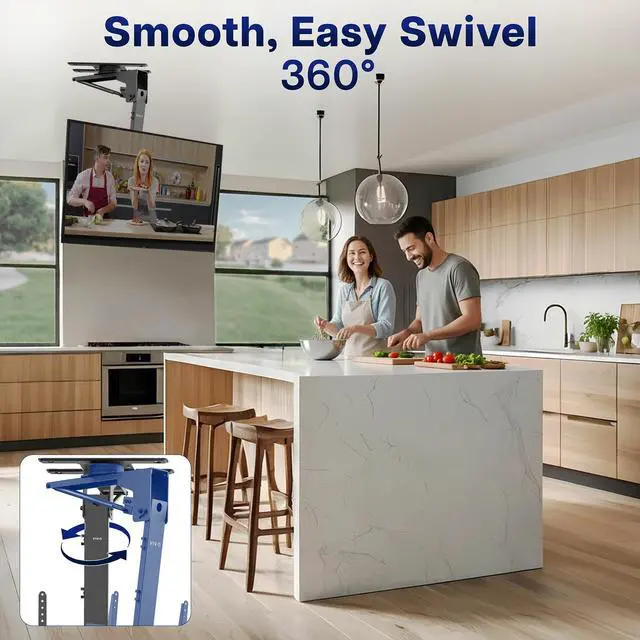

• Articulation: 0° to -90° tilt, 360° swivel, +3° to -3° screen leveling

• Screen Distance From Ceiling: 8.3, 29.5 (center of mounting plate)

• Ceiling Mount Dimensions: 19.7 L x 11.2 W (includes mounting brackets)

• Mounting Plate Dimensions: 6.75 L x 26.75 H

• VESA Bracket Dimensions: 16.75 x 1.25

• Profile: 10.25 (when folded)

• Product Weight: 35.2 lbs
