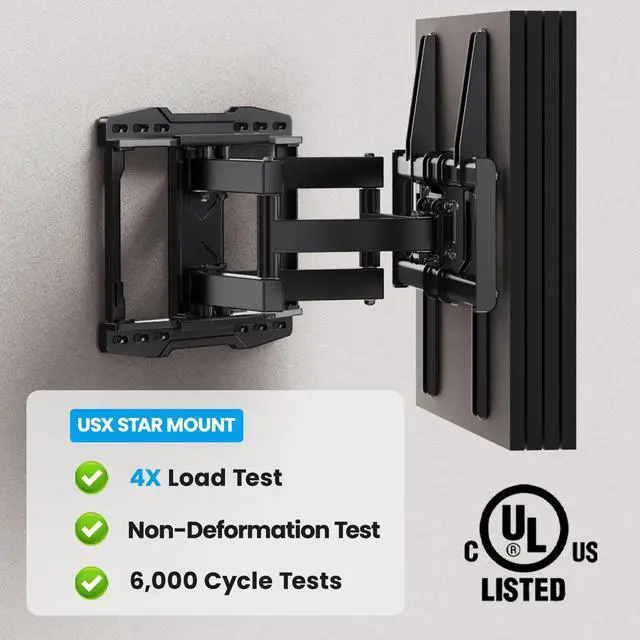

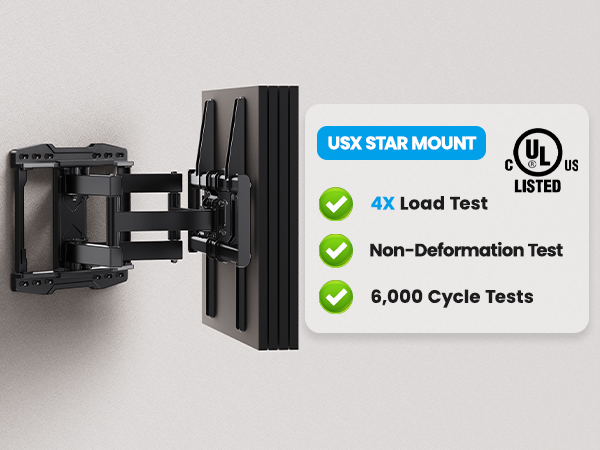

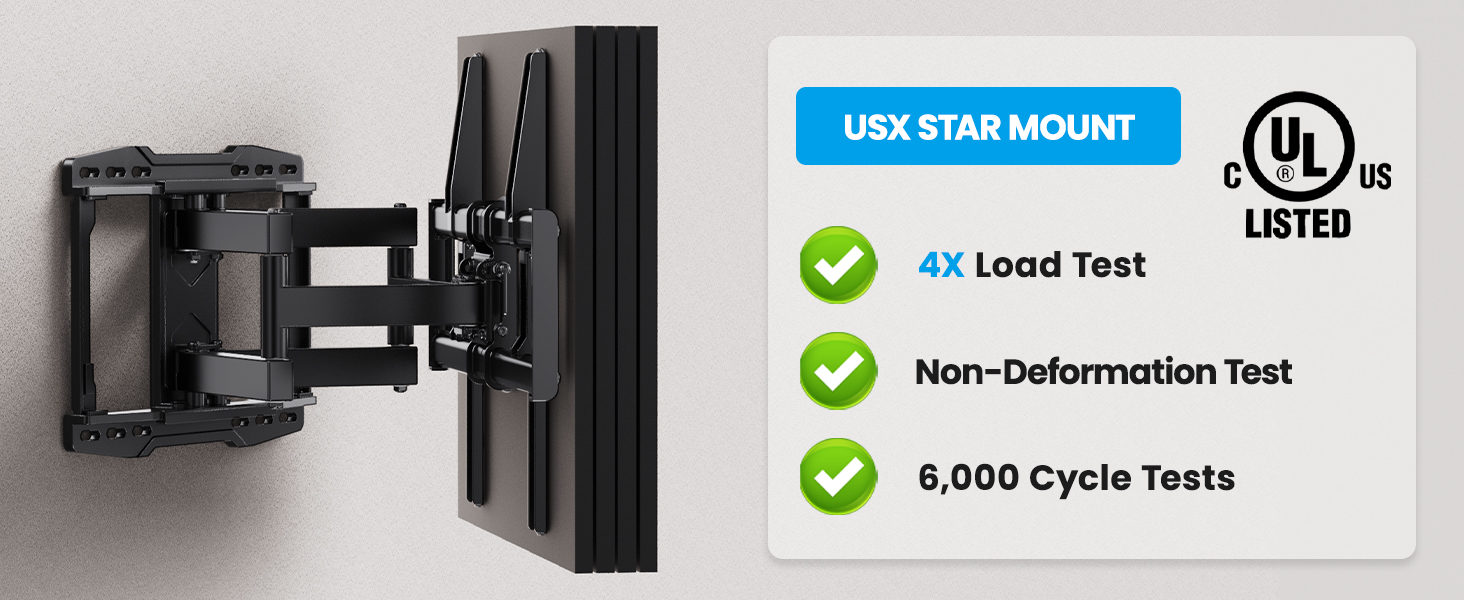

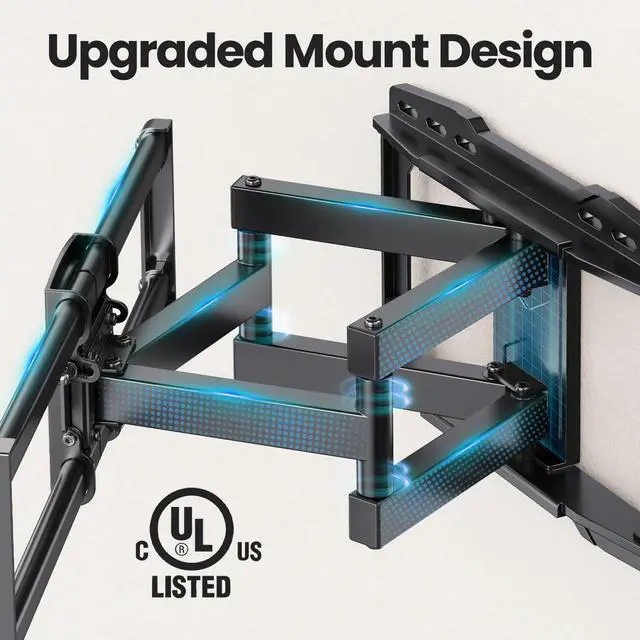

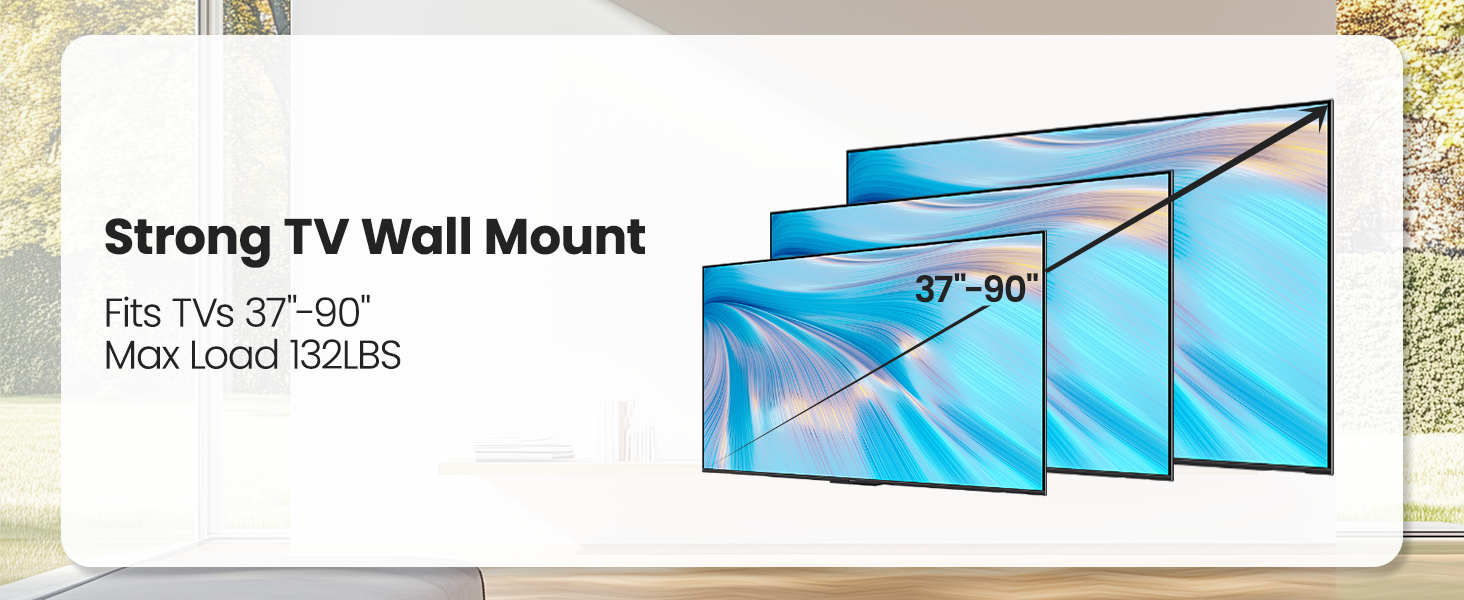

UL Listed Full Motion TV Mount for 37-90 inch TVs
Installation Video Guide 3-Step Easy Installation
How do I know if this TV mount is suitable for my TV?

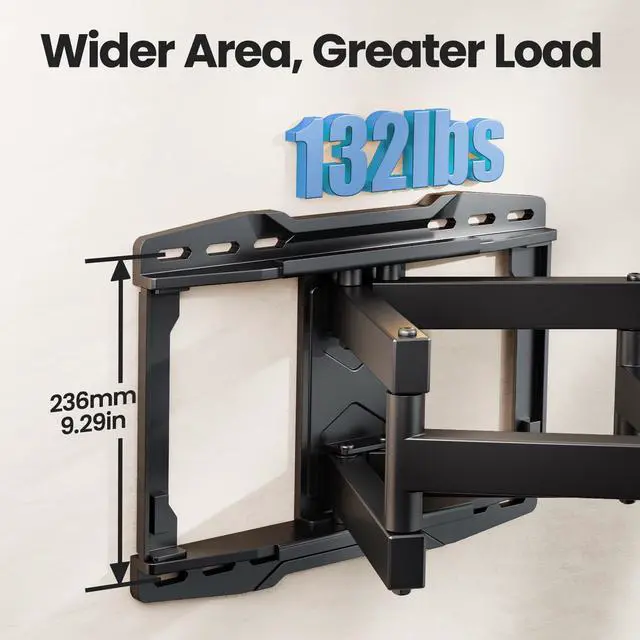

1. Weight up to 132 LBS
2. VESA pattern, max 600x400mm, min 200x100mm
3. Wall Types : Up to 16‘’ wood wtuds and solid brick/concrete wall

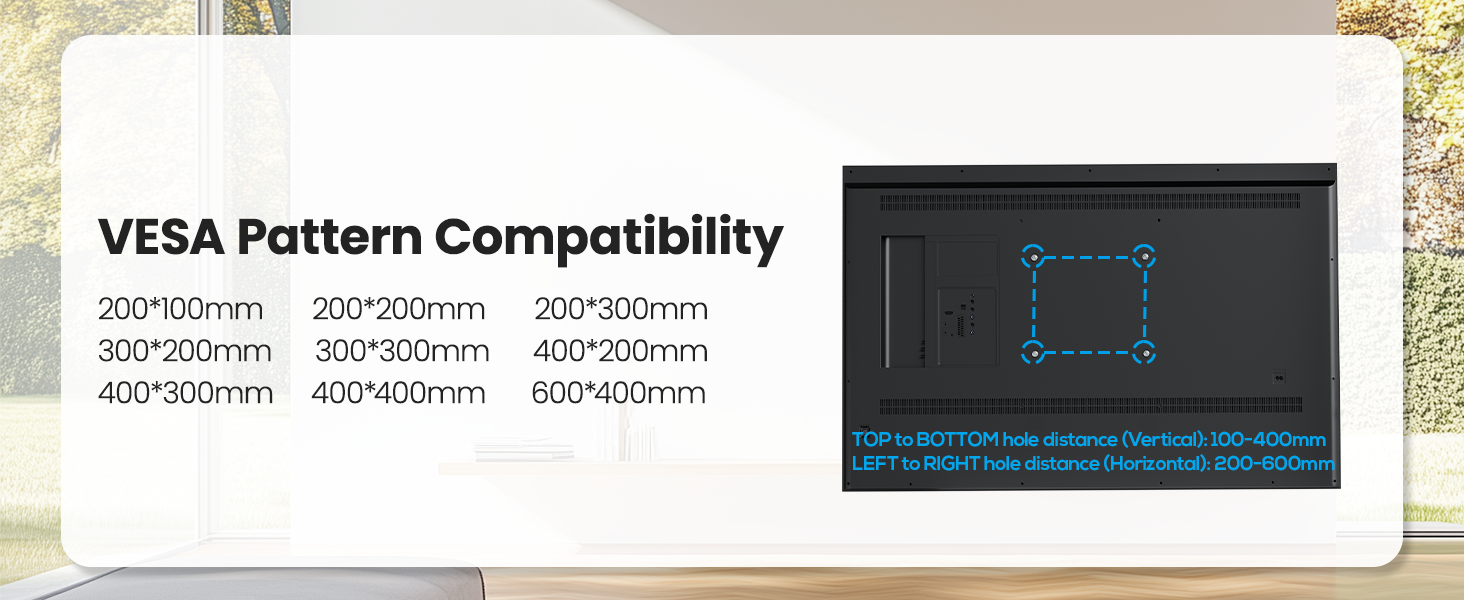

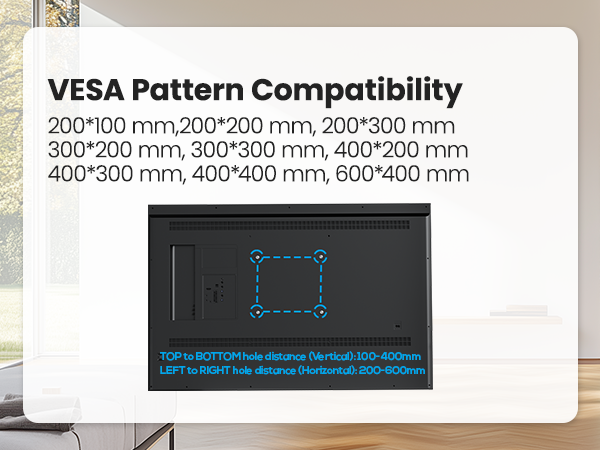

How to configure VESA holes?
VESA= horizontal x vertical distance (the four holes on the back of the TV)

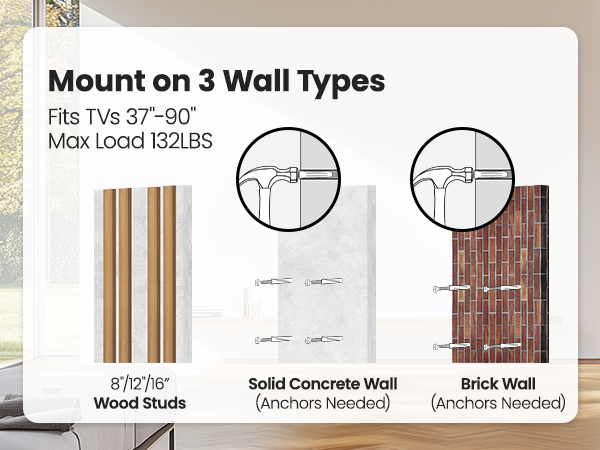

What kinds of wall type can the tv wall mount be mounted on?
8‘’ up to 16‘’ Wood studs and solid brick and concrete wall.(DO NOT MOUNT ON DRYWALL ALONE)

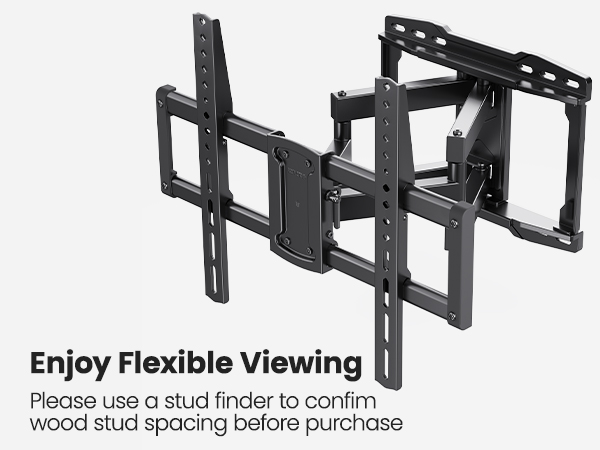

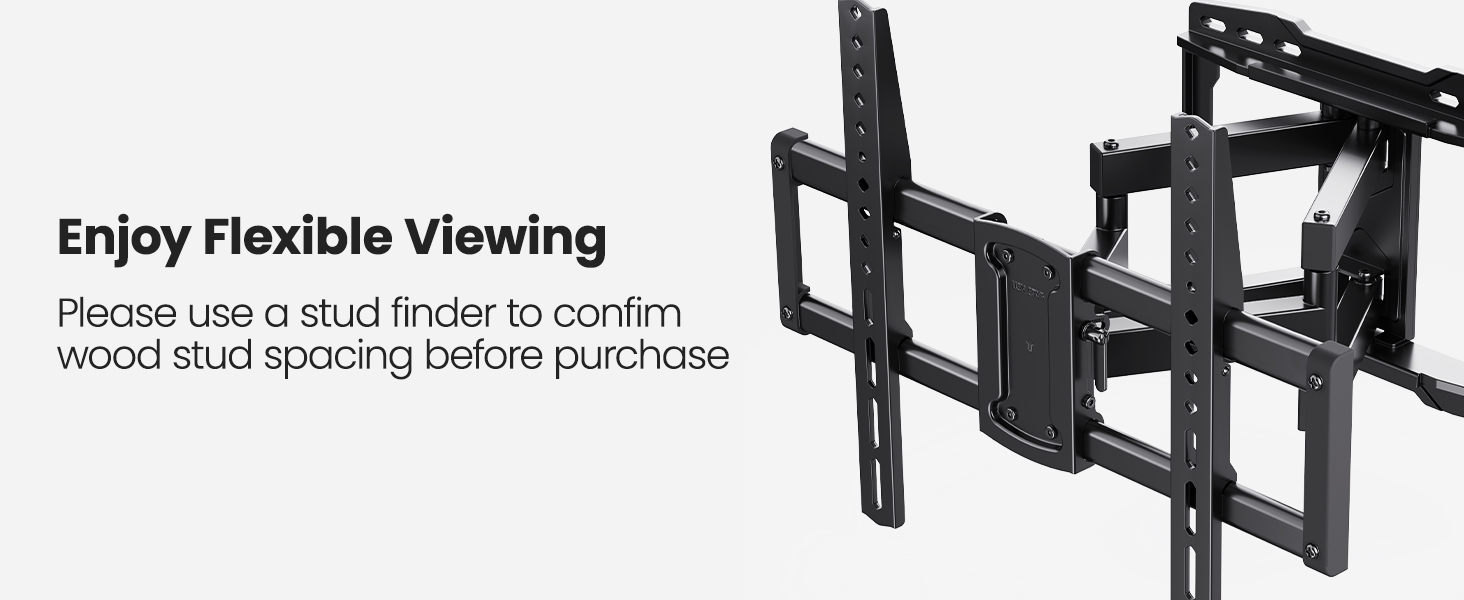

This bracket supports a maximum 16 inches wood studs spacing. For larger 24 inches studs, we have "More for Your Choice"
Are screws included?

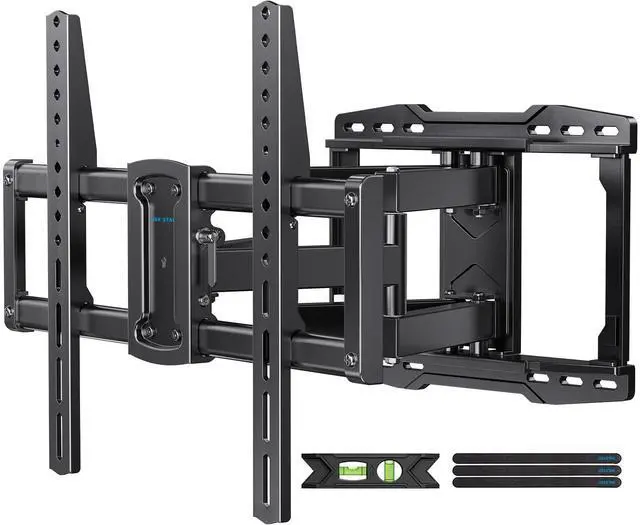

All standard mounting hardware included(TV Screws, Spacers, Washers, Lag bolt, Allen key), bubble level and clear instruction, easy installation
Concrete anchors should be sent separately if needed
More for Your Choice
 Low ProfileTilt 37-86'' |  Low Profile Fixed 37-86'' |  Full Motion 24 inch Studs |  Full Motion Long Arm |  Full Motion 32-70'' |  Tilting TV Mount 26-60'' |  Heavy Duty 60-120'' | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
TV Size | 37"-86" | 37"-86" | 42"-86" | 37"-84" | 32"-70" | 26"-60" | 60"-120" |
Max Load | 132lbs | 132lbs | 110lbs | 100lbs | 110lbs | 99lbs | 220lbs |
Max VESA | 600x400mm | 600x400mm | 600x400mm | 600x400mm | 400x400mm | 400x400mm | 900x600mm |

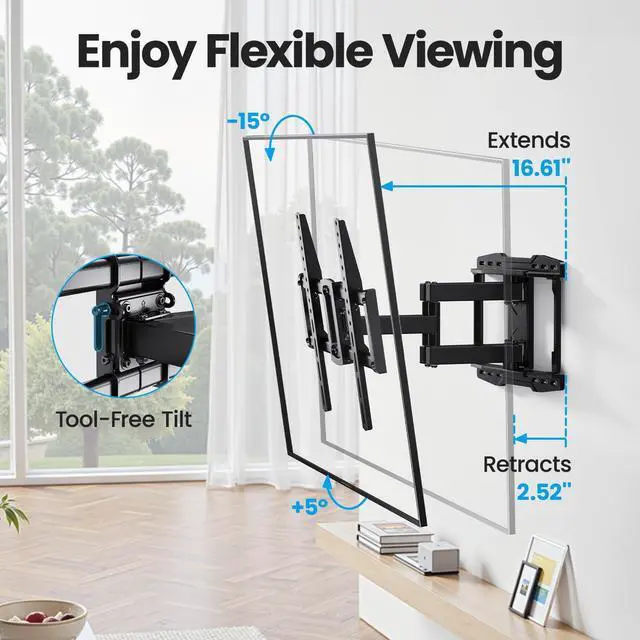

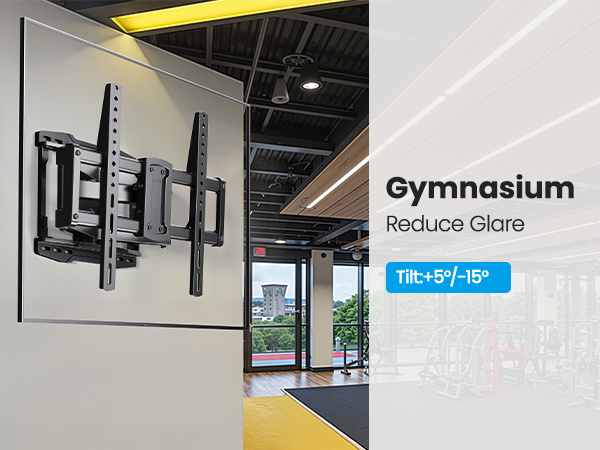

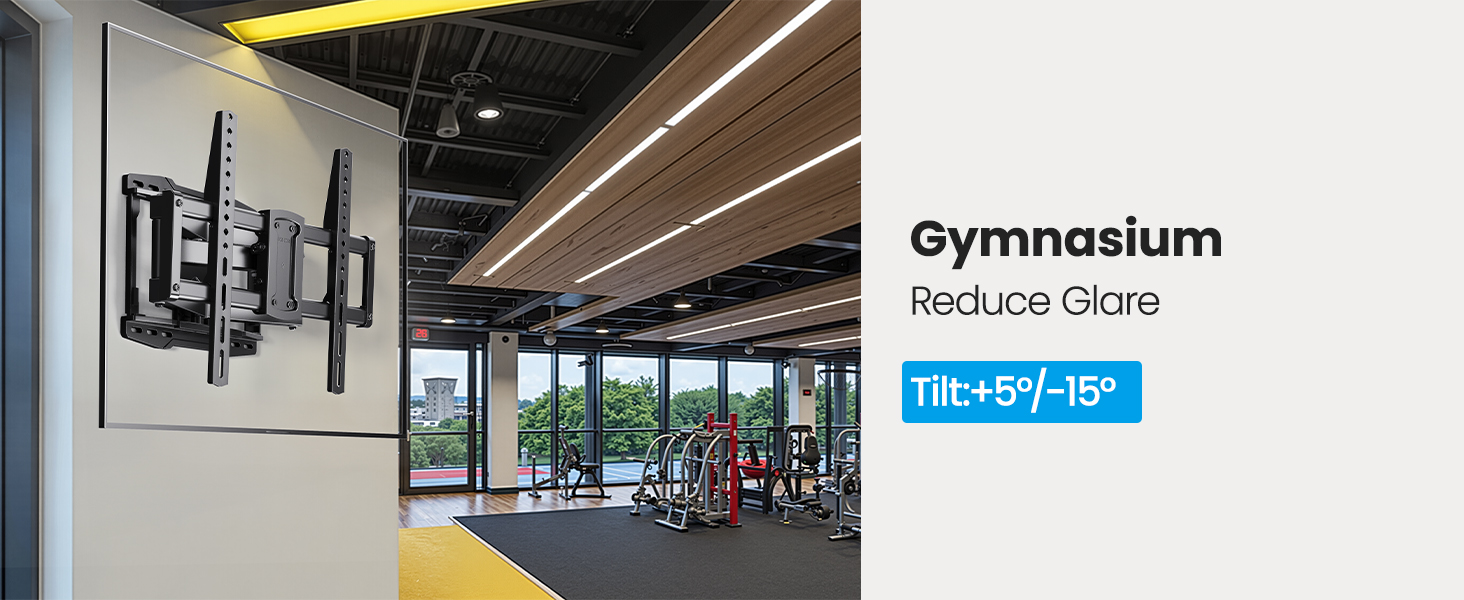

Tilt Angle | -9° | / | +5°/-15° | +5°/-15° | +5°/-15° | -10° | +10°/-10° |

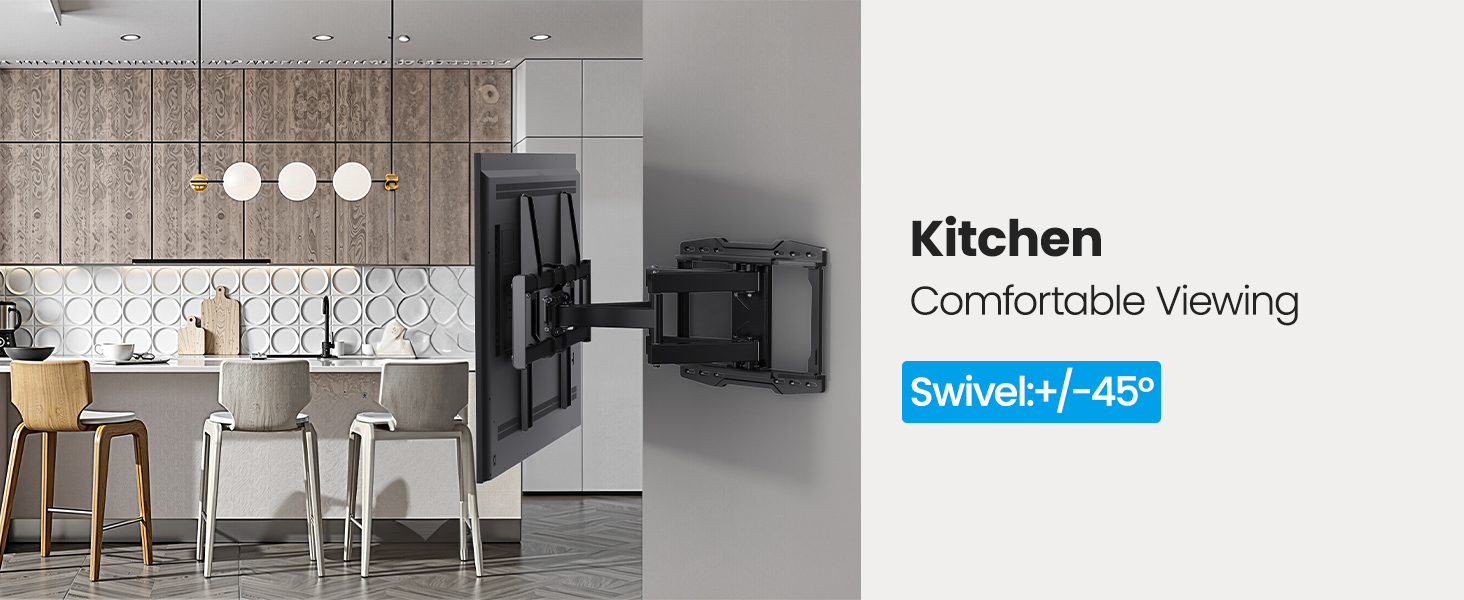

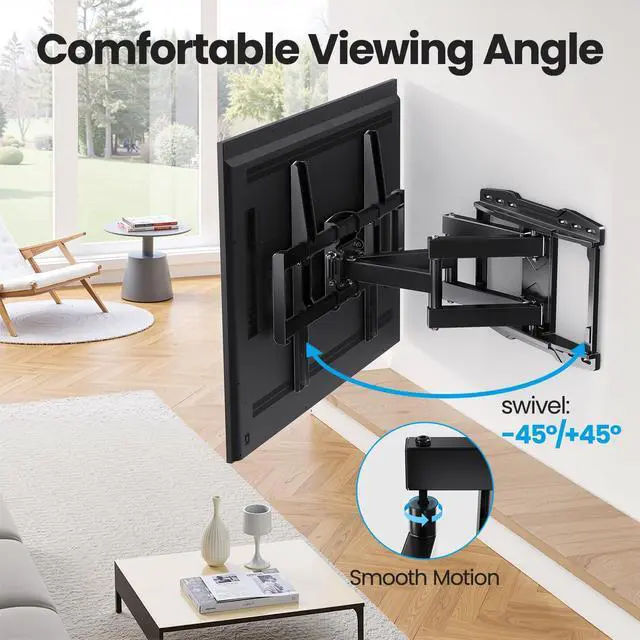

Swivel Angle | / | / | +45°/-45° | +90°/-90° | +45°/-45° | / | +60°/-60° |
Fits Stud Spacing | Up to 24" | Up to 24" | Up to 24" | single stud | Up to 16" | Up to 16" | Up to 24" |

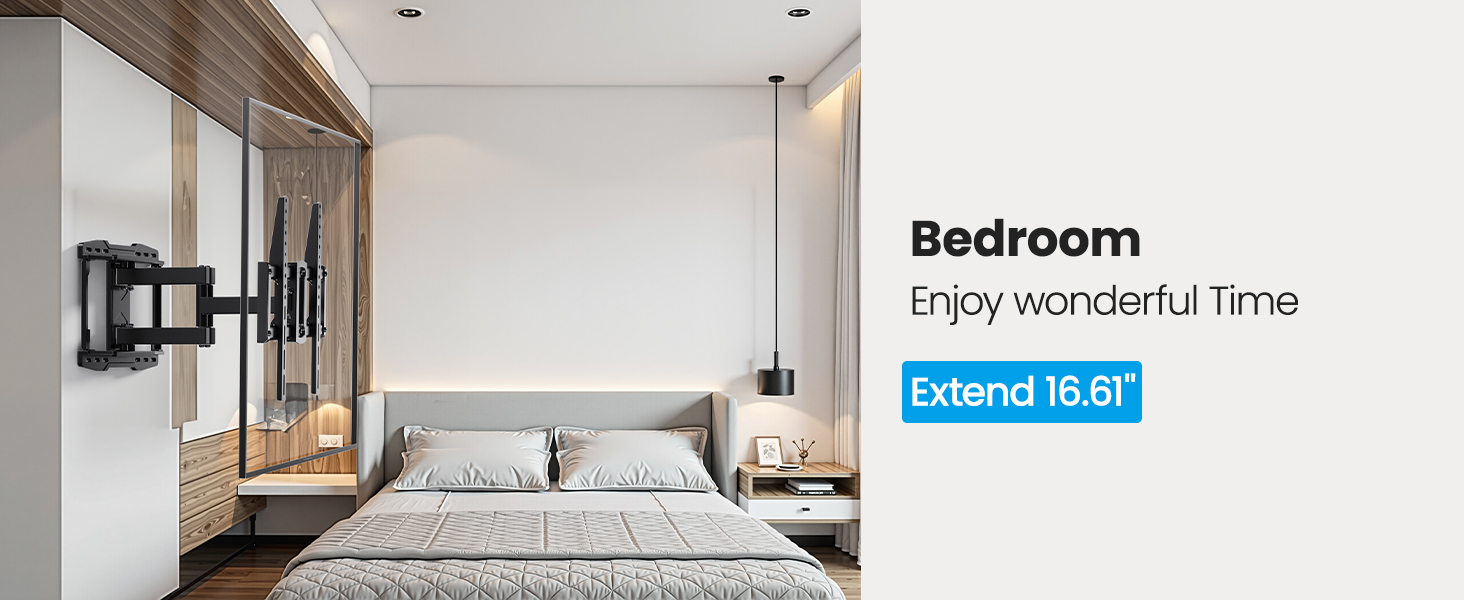

Extend | / | / | 16.79" | 32.05" | 13.9" | / | 32.11" |

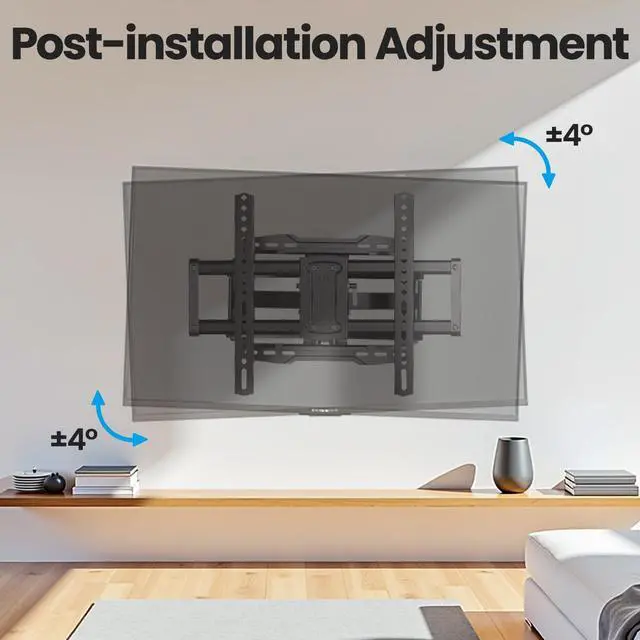

Level adjusts | / | / | +/- 4° | +/- 4° | +/- 4° | / | +/- 3° |
UL Listed Full Motion TV Mount for 37-90 inch TVs
Installation Video Guide 3-Step Easy Installation
Attach the Bracket to TV
Mount Wall Plate on Wall
Please note this tv wall mount is designed for wood stud and solid concrete wall, can not be installed in drywall alone!
Hang the TV onto Wall Plate
Please check the wall plate security before hanging the tv onto the wall plate.
How do I know if this TV mount is suitable for my TV?
1. Weight up to 132 LBS
2. VESA pattern, max 600x400mm, min 200x100mm
3. Wall Types : Up to 16‘’ wood wtuds and solid brick/concrete wall
How to configure VESA holes?
VESA= horizontal x vertical distance (the four holes on the back of the TV)
What kinds of wall type can the tv wall mount be mounted on?
8‘’ up to 16‘’ Wood studs and solid brick and concrete wall.(DO NOT MOUNT ON DRYWALL ALONE)
This bracket supports a maximum 16 inches wood studs spacing. For larger 24 inches studs, we have "More for Your Choice"
Are screws included?
All standard mounting hardware included(TV Screws, Spacers, Washers, Lag bolt, Allen key), bubble level and clear instruction, easy installation
Concrete anchors should be sent separately if needed
More for Your Choice
Low ProfileTilt 37-86'' | Low Profile Fixed 37-86'' | Full Motion 24 inch Studs | Full Motion Long Arm | Full Motion 32-70'' | Tilting TV Mount 26-60'' | Heavy Duty 60-120'' |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| TV Size | ||||||
| 37"-86" | 37"-86" | 42"-86" | 37"-84" | 32"-70" | 26"-60" | 60"-120" |
| Max Load | ||||||
| 132lbs | 132lbs | 110lbs | 100lbs | 110lbs | 99lbs | 220lbs |
| Max VESA | ||||||
| 600x400mm | 600x400mm | 600x400mm | 600x400mm | 400x400mm | 400x400mm | 900x600mm |
| Tilt Angle | ||||||
| -9° | / | +5°/-15° | +5°/-15° | +5°/-15° | -10° | +10°/-10° |
| Swivel Angle | ||||||
| / | / | +45°/-45° | +90°/-90° | +45°/-45° | / | +60°/-60° |
| Fits Stud Spacing | ||||||
| Up to 24" | Up to 24" | Up to 24" | single stud | Up to 16" | Up to 16" | Up to 24" |
| Extend | ||||||
| / | / | 16.79" | 32.05" | 13.9" | / | 32.11" |
| Level adjusts | ||||||
| / | / | +/- 4° | +/- 4° | +/- 4° | / | +/- 3° |
