100mm 24G Receiver Antenna for Frsky X4R X4RSB XM XM+ RXSR Replacement Antenna IPEX 4 V4 Port S6R S8R F30 F3OP F40 F4OP
- *****
- **********
- ***** *****
- *****Best Quality Guranteed.*****

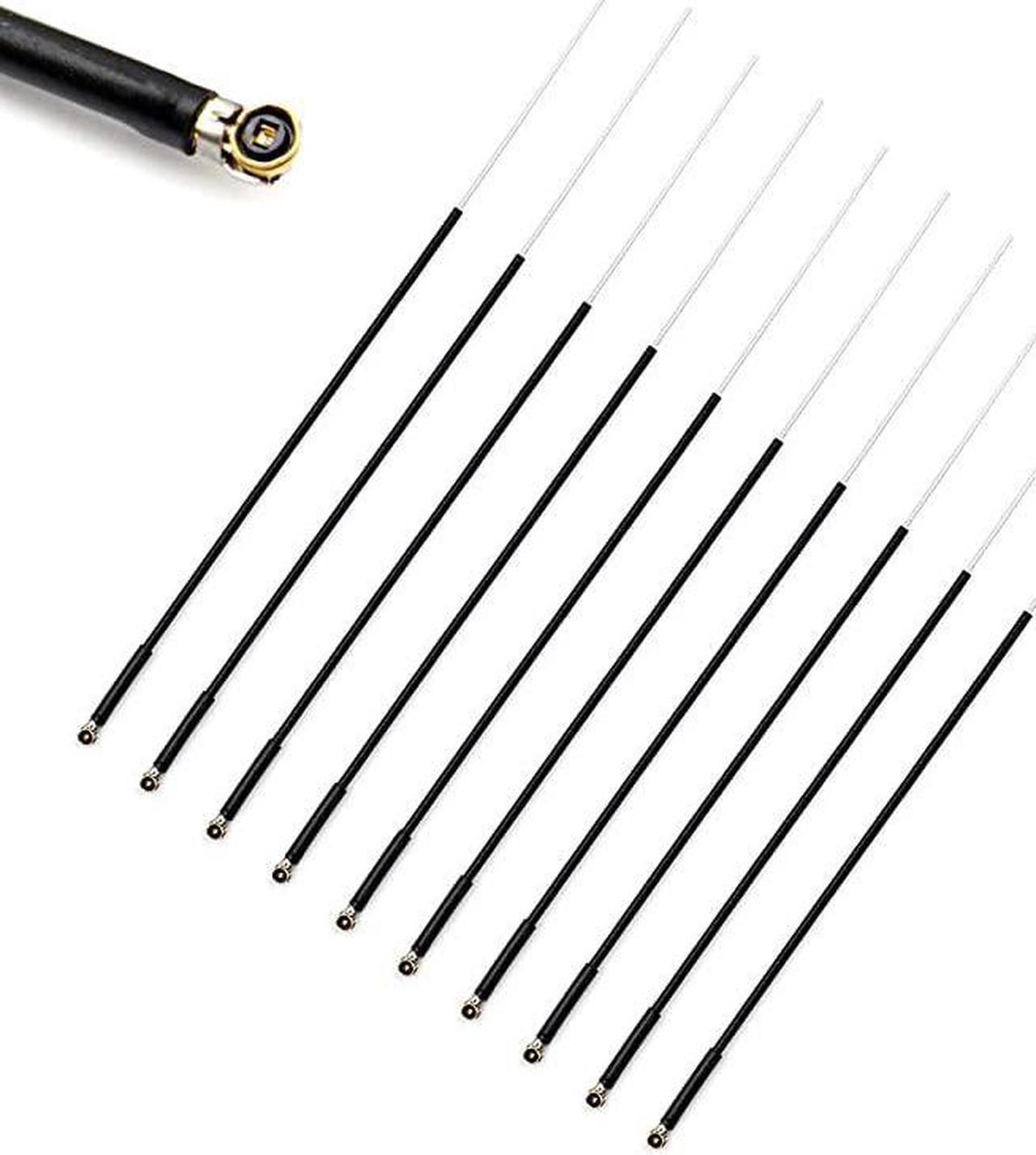

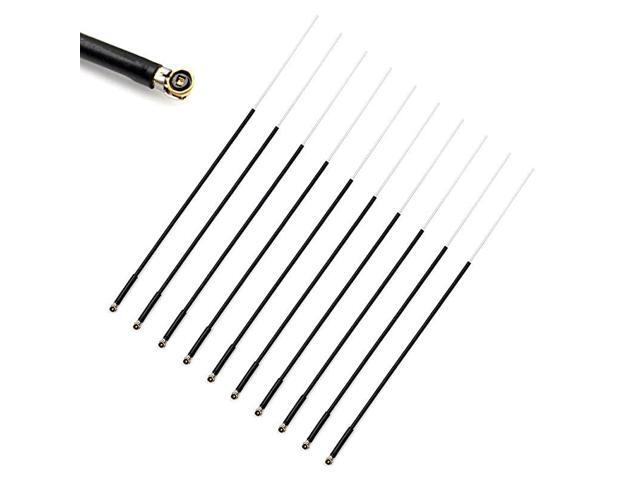

- *****10 pieces of 100mm 2.4G Receiver Antenna*****
- *****Suitable for Frsky X4R X4RSB XM+ S6R S8R F30 F3OP F40 F4OP*****

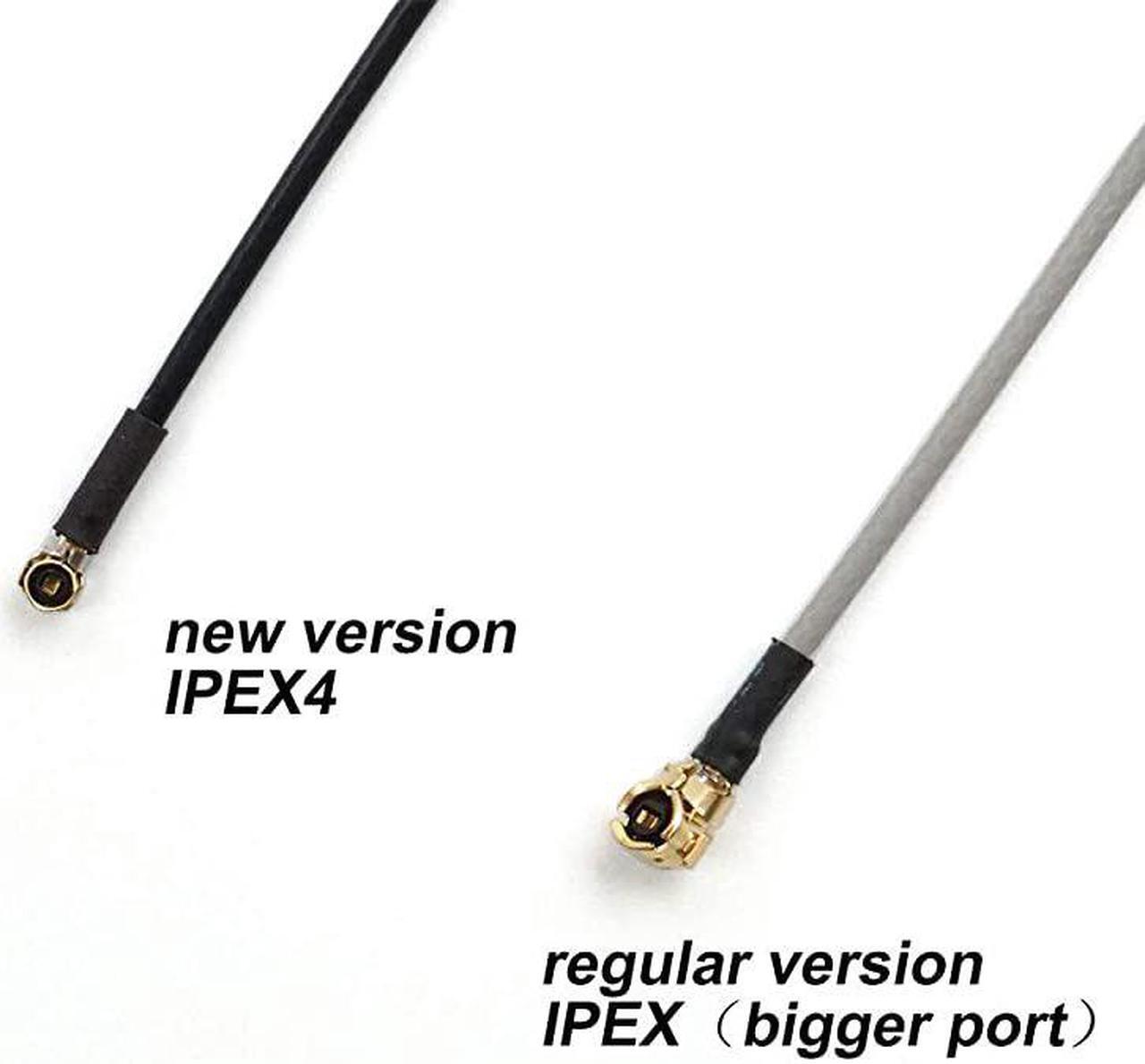

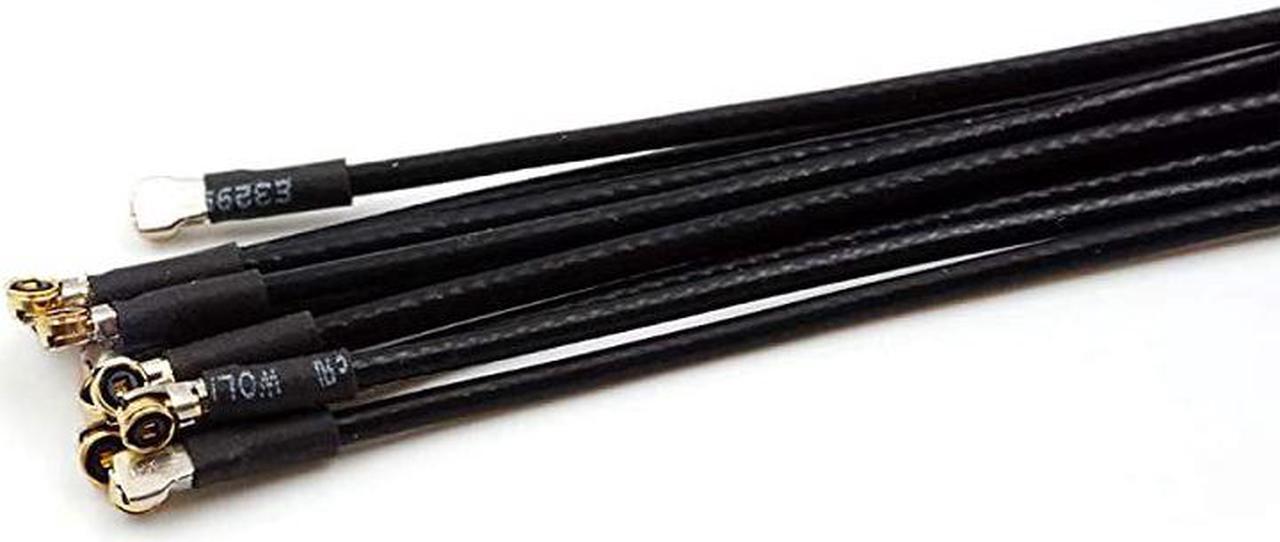

- *****High-quality gold-plated head, IPEX V4 interfaces*****
- *****S.W.R. less than 2.0
+
+
Overview
Specs
Reviews
Package included: 10 sets of 100mm 2.4G
Receiver Antenna Features: Suitable for Receiver with IPEX V4 interfaces such as Frsky X4R X4RSB XM+ S6R S8R F30 F3OP F40 F4OP, high-quality gold-plated head. Total length is 100mm
Specification:
Frequency: 2400 ~ 2500 MHz S. W. R.: less than 2.0
Antenna Gain: 2.0
Polarization: Linear
Impedance: 50 Ohm
Cable Type: RG-113
Connector Type: IPEX V4
Connector Pull Test: more than 2Kg
Operation Temperature: - 40 to + 65 Degree Celsius
Storage Temperature: - 40 to + 80 Degree Celsius

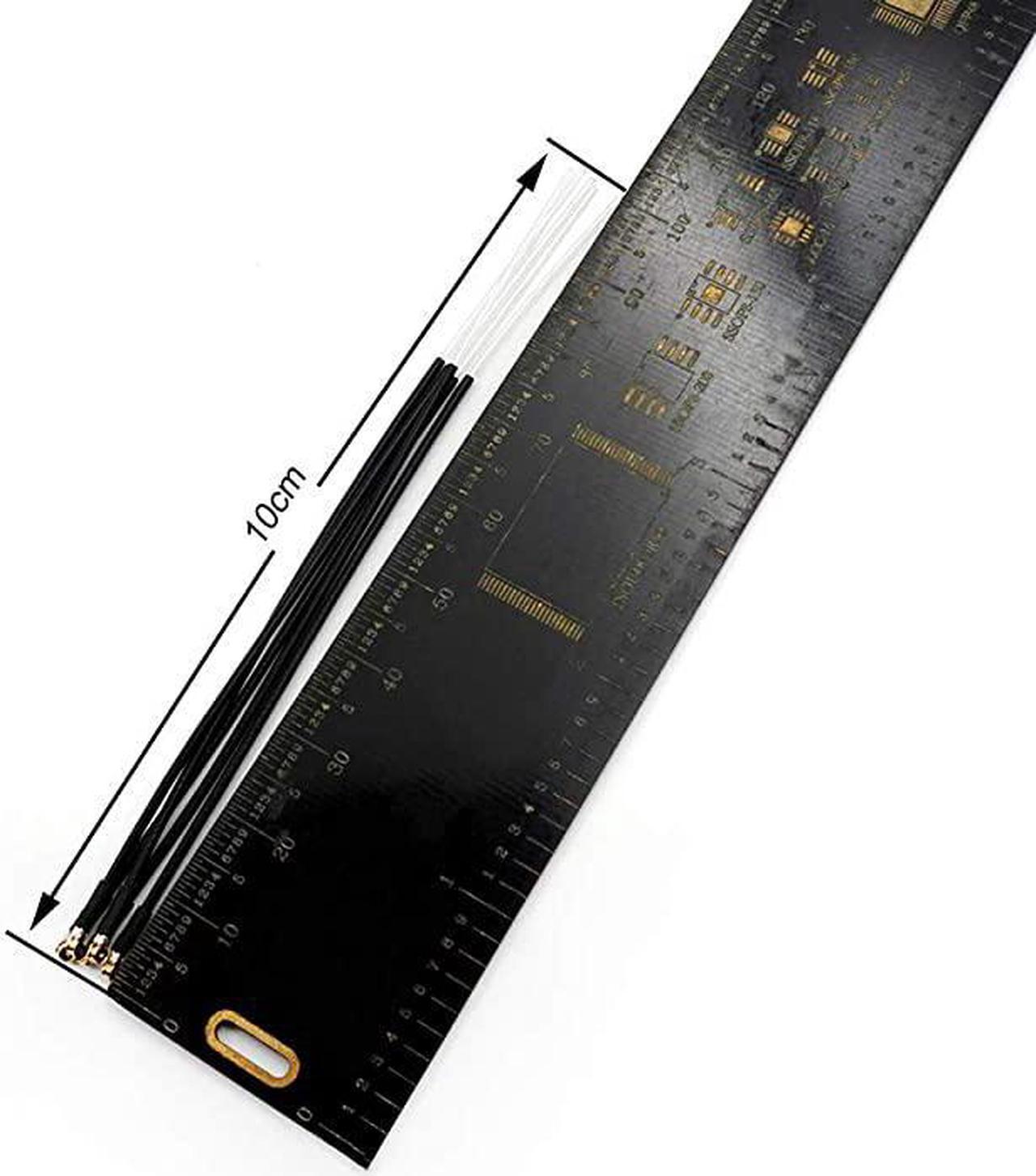

Antenna Length: 100mm
Receiver Antenna Features: Suitable for Receiver with IPEX V4 interfaces such as Frsky X4R X4RSB XM+ S6R S8R F30 F3OP F40 F4OP, high-quality gold-plated head. Total length is 100mm
Specification:
Frequency: 2400 ~ 2500 MHz S. W. R.: less than 2.0
Antenna Gain: 2.0
Polarization: Linear
Impedance: 50 Ohm
Cable Type: RG-113
Connector Type: IPEX V4
Connector Pull Test: more than 2Kg
Operation Temperature: - 40 to + 65 Degree Celsius
Storage Temperature: - 40 to + 80 Degree Celsius
Antenna Length: 100mm
