Magnadyne TV-X Omni-Directional Amplified TV/AM/FM Antenna and Distribution Plate (Black), Welcome to consult

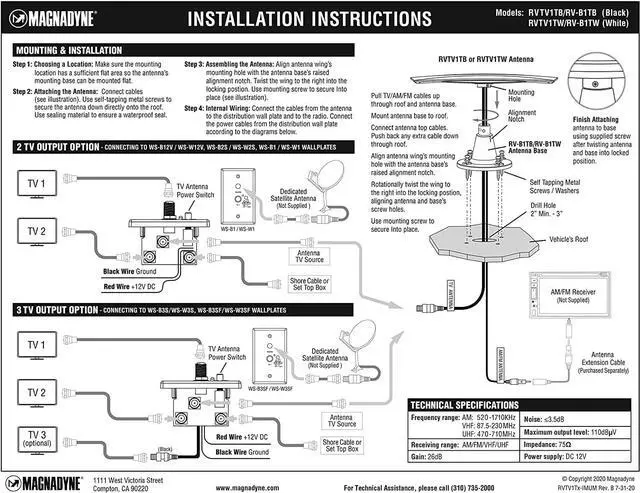

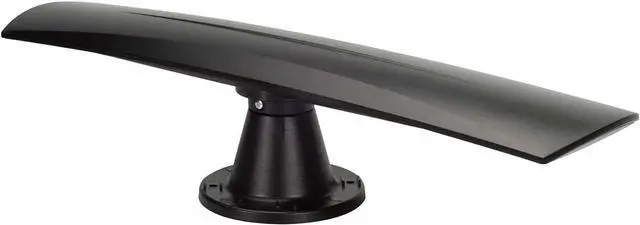

TV-1B is a wing style omni directional antenna that mounts on the roof of your RV/motor home. This model replaces the previous RVTV-B2-WEB that had a dome style design. This antenna has both TV (UHF/VHF) & AM/FM capabilities so you are able to listen to your radio or watch TV while you are on the road or parked at a campground. Please look at the installation instructions on the listing photos to reference installation.

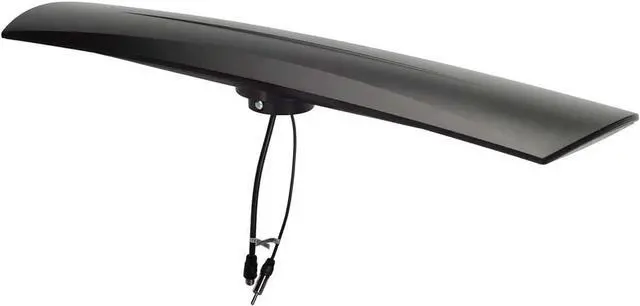

AM/FM antenna cable assembled with a Female Motorola automotive type plug. TV antenna cable assembled with Female F-connector. 4G LTE signal filter featured. See installation instructions in the listing photos to see the diagram of wiring from the antenna into the vehicle.

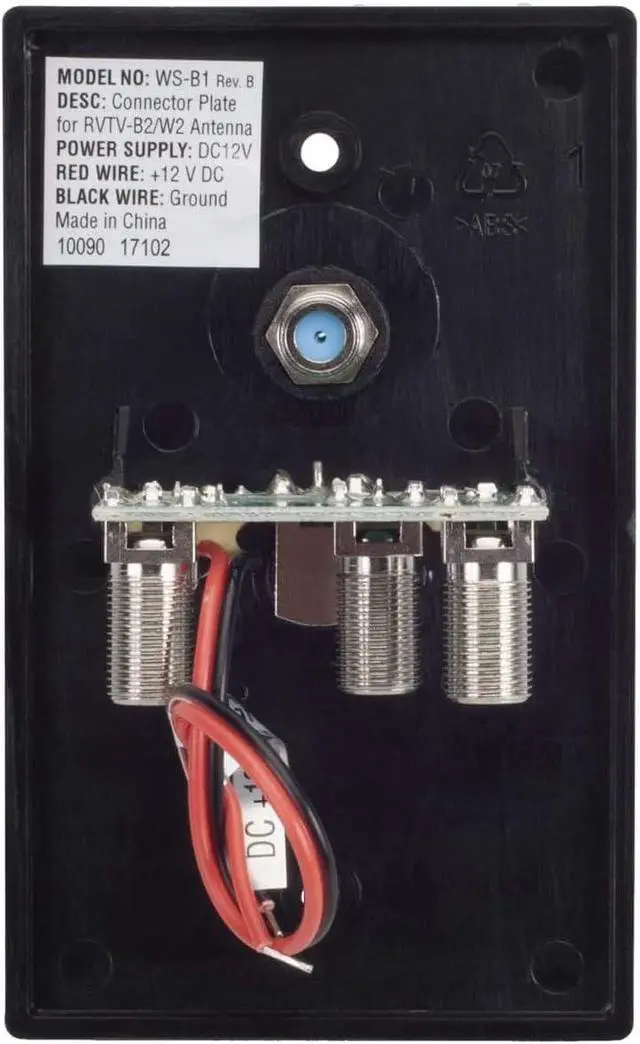

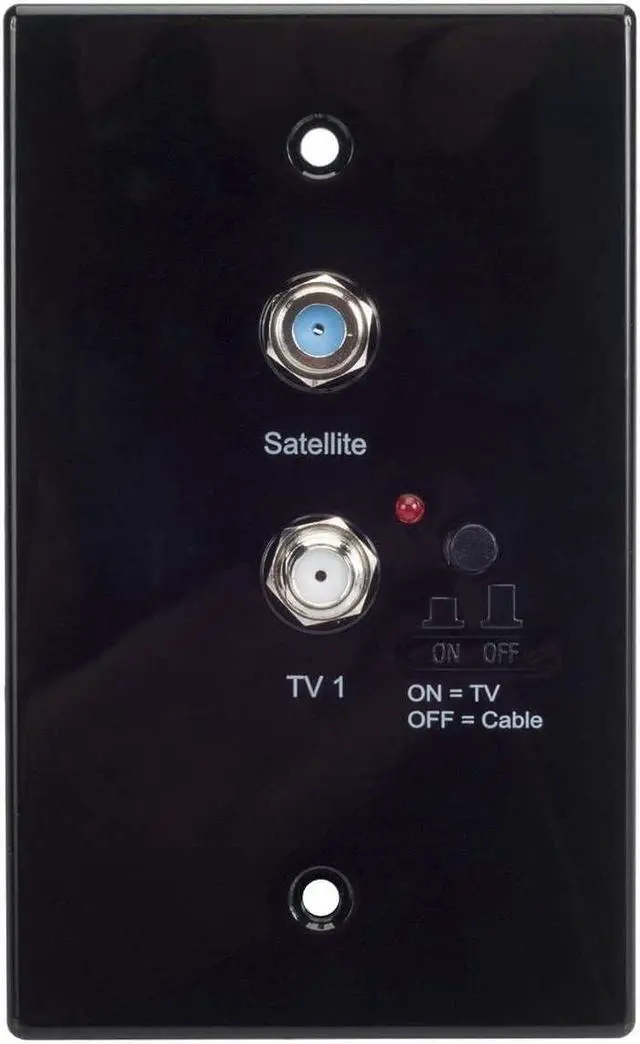

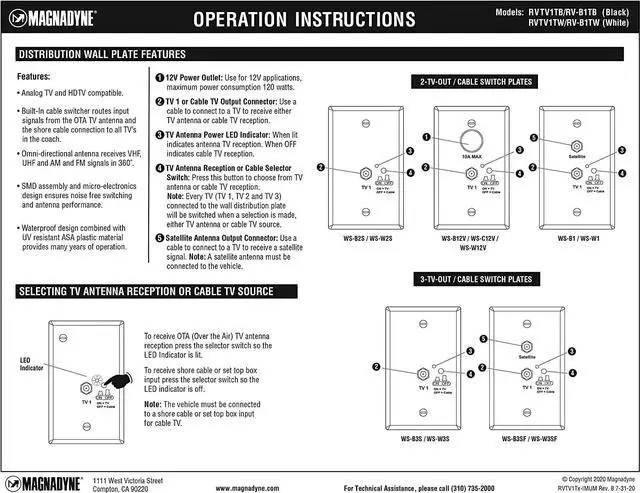

The antenna system also comes with a 12V powered, WS-B1 Black wall plate with 2 TV-outputs and shore cable input. A manual switch selects roof antenna input or shore cable input.
TECHNICAL SPECIFICATIONS: Frequency range of
VHF: 47-230MHz, UHF: 470-710MHz.
Receiving range: FM/VHF/UHF.
Maximum output level: 110dBµV.
Gain: 30dB.
Impedance:
75.
Power supply: DC 12V
Wing style antenna also available in White (ASIN: B00USE3JF6)
