Aida Imaging 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

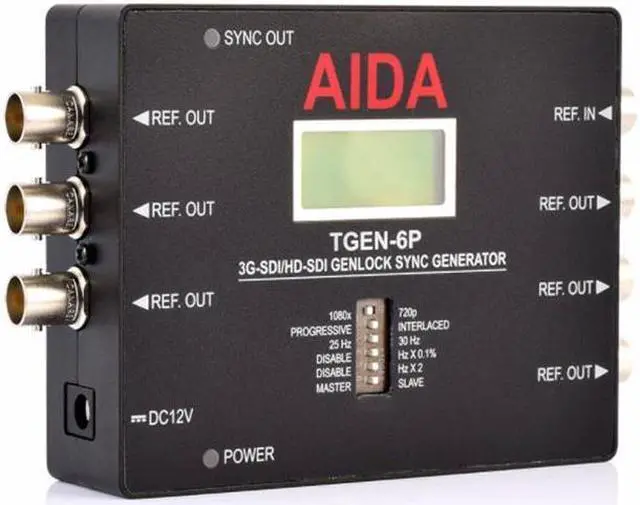

Professional 3G-SDI Genlock Generator
Synchronize all your video sources to one master sync signal. The TGEN-6P generates 3G-SDI and HD-SDI Genlock Sync reference- it supports 15 different formats from 720p 25Hz up to 1080p 59.94/60Hz. The TGEN-6P can be operated as Slave mode and distribute external reference Sync signal. TGEN-6P has built-in LCD screen and dipswitches for convenient setting and status checking. Its compact and solid design helps users operate and maintain easily. This unit includes a DC12V Power supply.
Features
Multi format HD Tri Level Sync up to 1080p60
Both V Sync and H Sync generation for more accurate timing
Up to 6 synchronized reference output per device
Slave mode for cascading
Built in LCD screen
Built in setting dipswitches
Versatile- compact- and rugged design
DC12V Power Supply is included
Synchronization
3G-SDI & HD-SDI Tri-Level Genlock Reference SYNC GeneratorSpecifications
Reference Out: Tri-Level HD
Format: 1080p 60/59.94/50/30/29.97/25Hz; 1080i 60/59.94/50Hz; 720p 60/59.94/50/30/25Hz
Smpte: SMPTE 274M- SMPTE 296M
Control: Dipswitches & Text LCD
Operation Temp: 32°F - 104°F
Dimension: 129mm x 86m x 29mm / 5.07- x 3.38- x 1.10-
Power: 12VDC (+9 - +15VDC)
Synchronize all your video sources to one master sync signal. The TGEN-6P generates 3G-SDI and HD-SDI Genlock Sync reference- it supports 15 different formats from 720p 25Hz up to 1080p 59.94/60Hz. The TGEN-6P can be operated as Slave mode and distribute external reference Sync signal. TGEN-6P has built-in LCD screen and dipswitches for convenient setting and status checking. Its compact and solid design helps users operate and maintain easily. This unit includes a DC12V Power supply.
Features
Multi format HD Tri Level Sync up to 1080p60
Both V Sync and H Sync generation for more accurate timing
Up to 6 synchronized reference output per device
Slave mode for cascading
Built in LCD screen
Built in setting dipswitches
Versatile- compact- and rugged design
DC12V Power Supply is included
Synchronization
3G-SDI & HD-SDI Tri-Level Genlock Reference SYNC GeneratorSpecifications
Reference Out: Tri-Level HD
Format: 1080p 60/59.94/50/30/29.97/25Hz; 1080i 60/59.94/50Hz; 720p 60/59.94/50/30/25Hz
Smpte: SMPTE 274M- SMPTE 296M
Control: Dipswitches & Text LCD
Operation Temp: 32°F - 104°F
Dimension: 129mm x 86m x 29mm / 5.07- x 3.38- x 1.10-
Power: 12VDC (+9 - +15VDC)
