Audio THUNDER10001 Thunder Series Car Amplifier

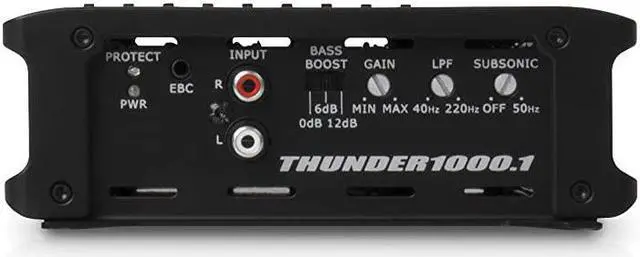

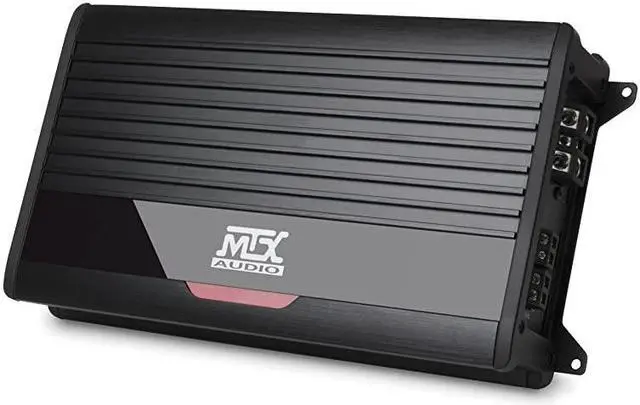

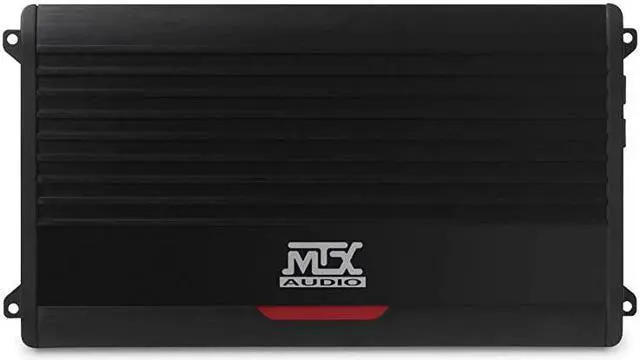

Style: 1000 Watt RMS Monoblock Amplifier Feel the Thunder THUNDER 1000.1 is designed to work with an assortment of subwoofers and is capable of delivering up to 2000 watts peak power in an incredibly small package. THUNDER 1000.1 Front THUNDER 1000.1 Control Panel High Power High Value The THUNDER 1000.1 is a high powered subwoofer amplifier capable of delivering up to 1000 watts RMS power at 1. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size. Technologically Advanced The THUNDER 1000.1 features a high efficiency class D topology. This type of circuit is preferred for driving subwoofers due to its ability to minimize power loss to heat. The THUNDER 1000.1 also features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than tradtional through hole designs making it extremely vibration resistant. Easy Adjustment The control panel on the THUNDER 1000.1 is easy to access and make adjustments. The unit includes a variable low pass filter and a selectable bass boost, 0, +6, or +12dB. The unit also features a subsonic filter that can be used in conjunction with a vented enclosure for optimal sound quality.

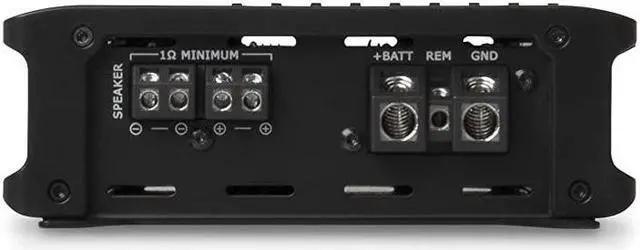

THUNDER 1000.1 Control Panel Secure Connections The THUNDER 1000.1 uses set screw type connections for both its power and speaker terminals. The power and ground inputs will support up to a 1/0 AWG wire and the speaker inputs can support up to a 12 AWG wire. Set screw type connectors provide the most secure connection minimizing power loss and delivering all the power to the amplifier and to the speakers. Key Features Class D TopologyVariable Low Pass FilterSelectable Bass BoostSmall Foot Print DesignSurface Mount PCB
