Size: 8

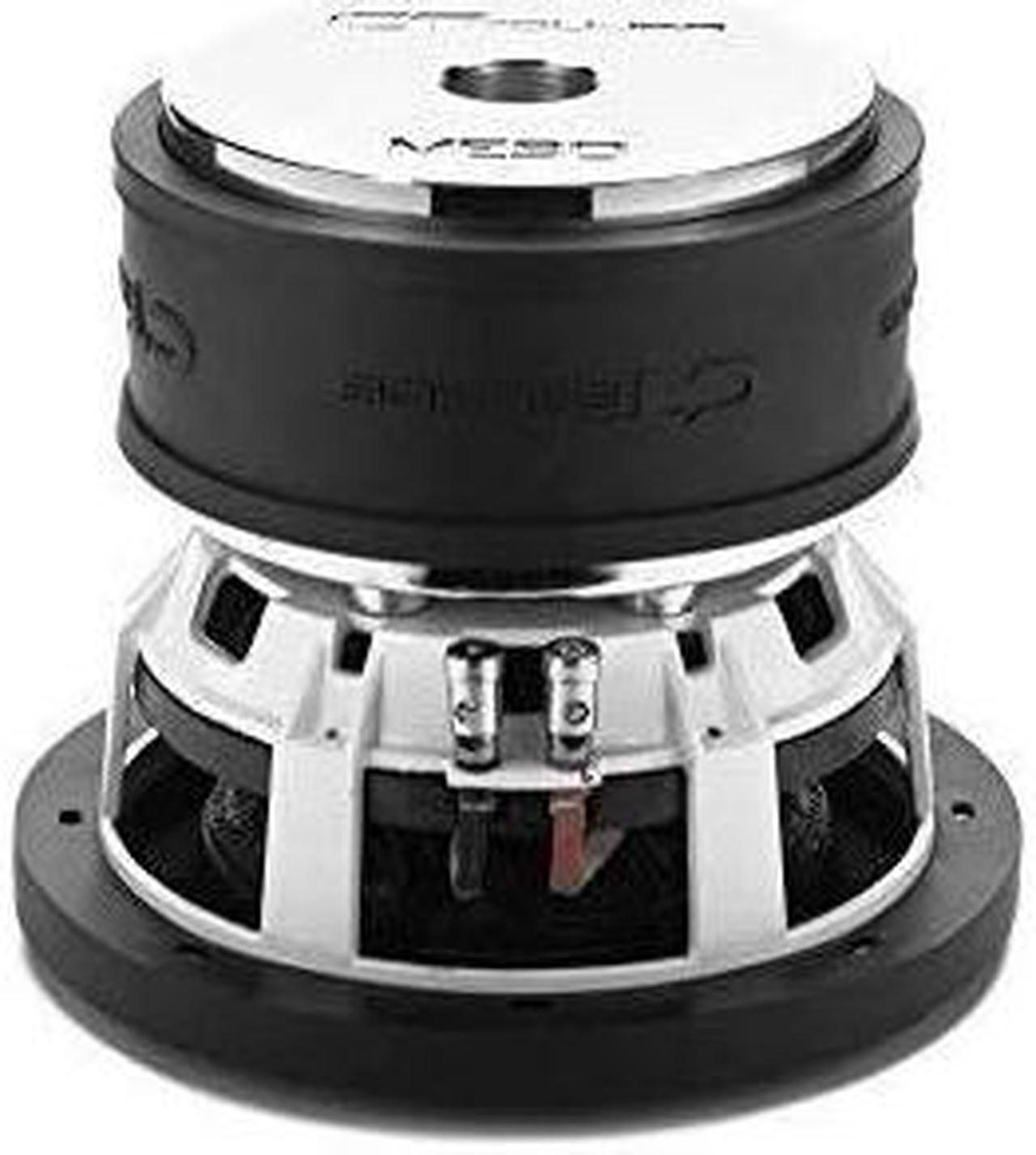

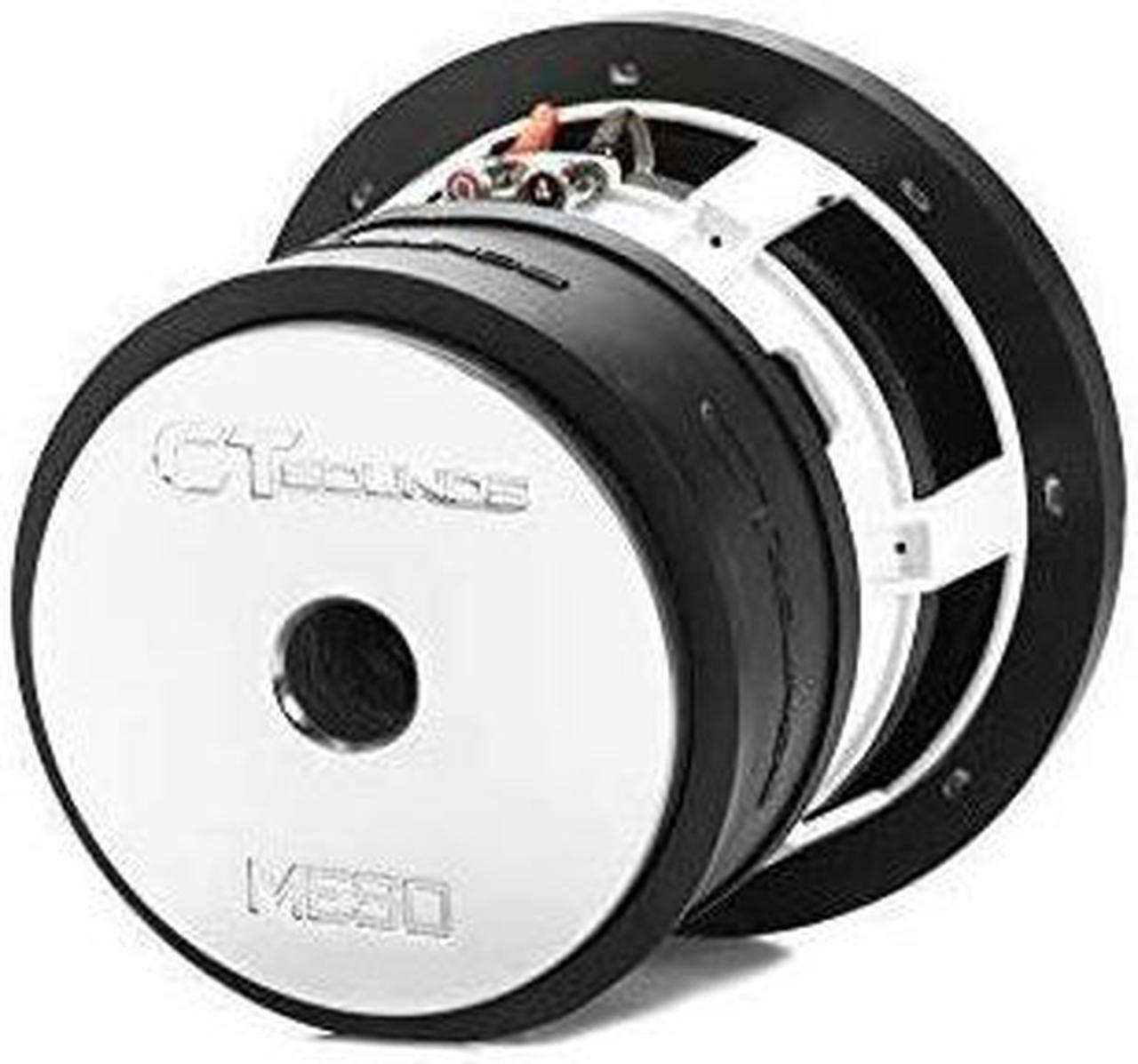

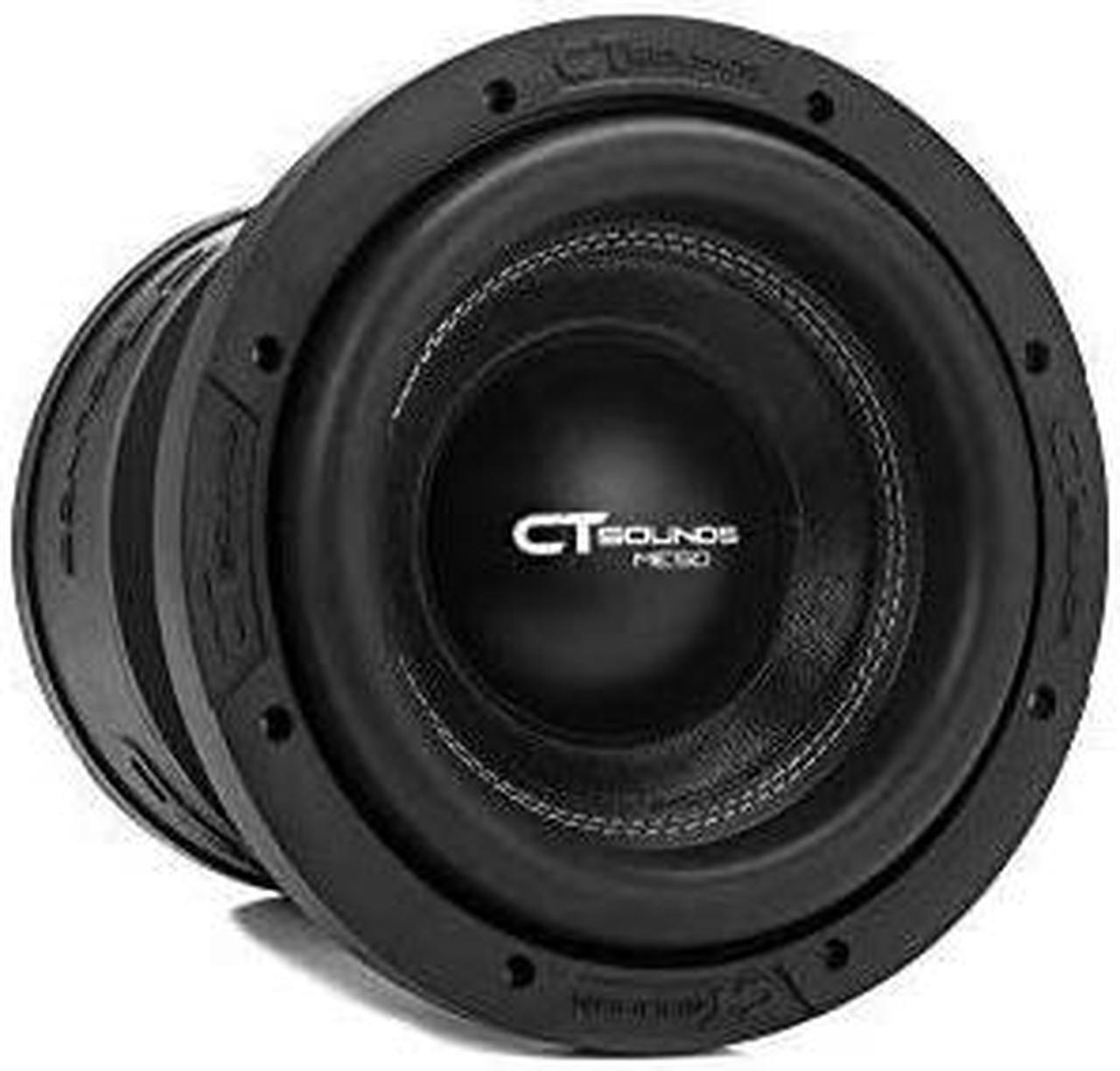

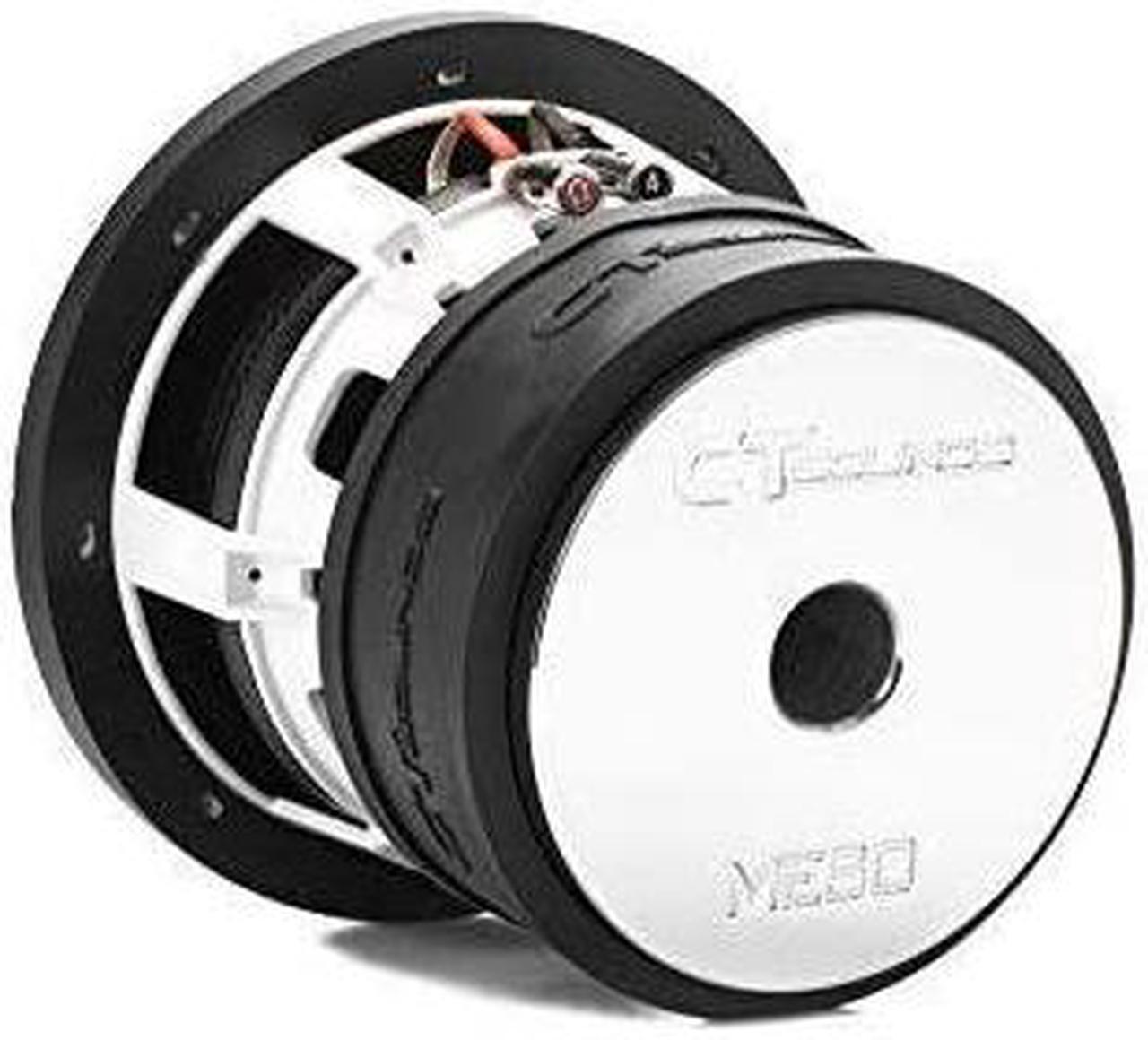

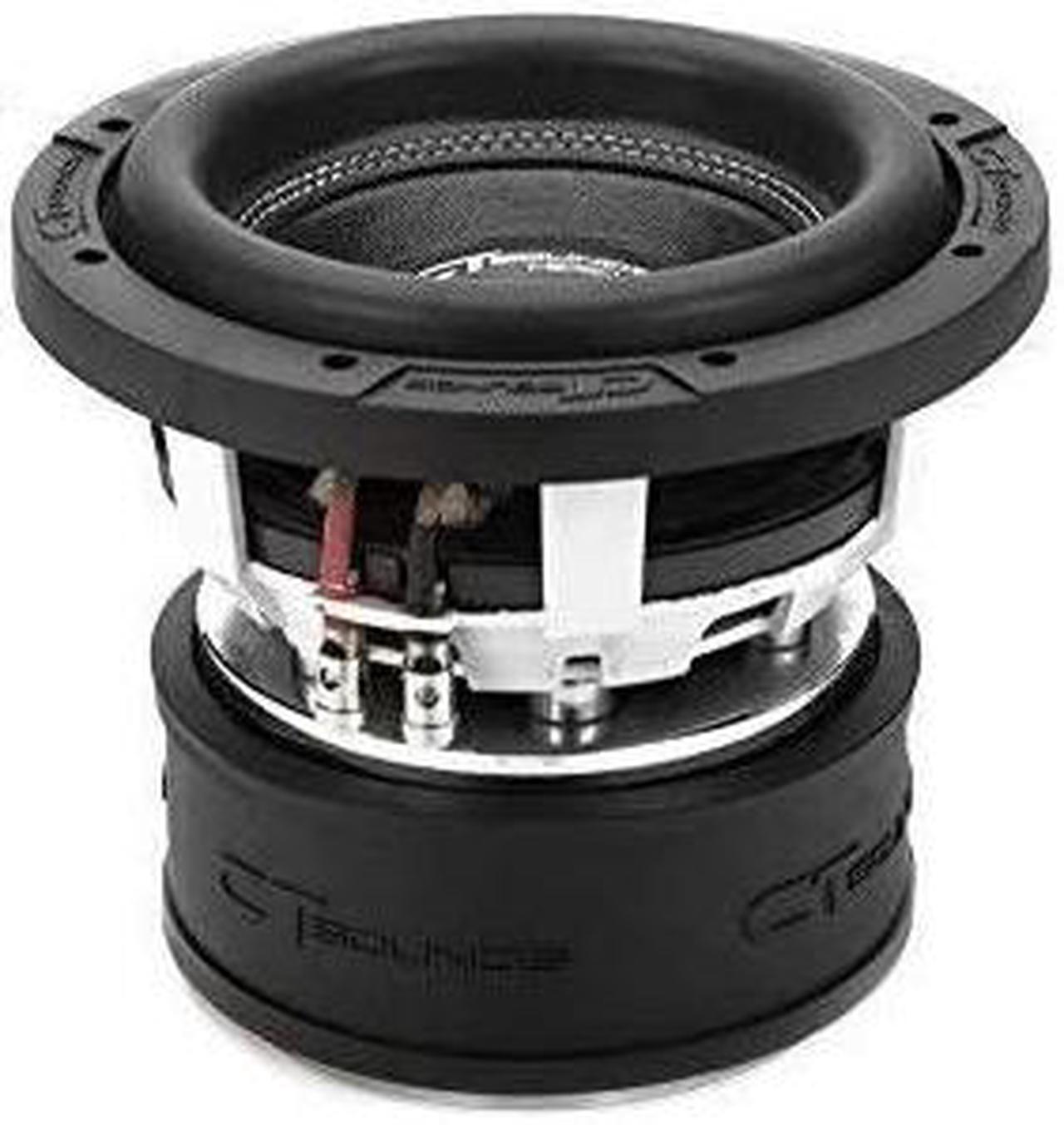

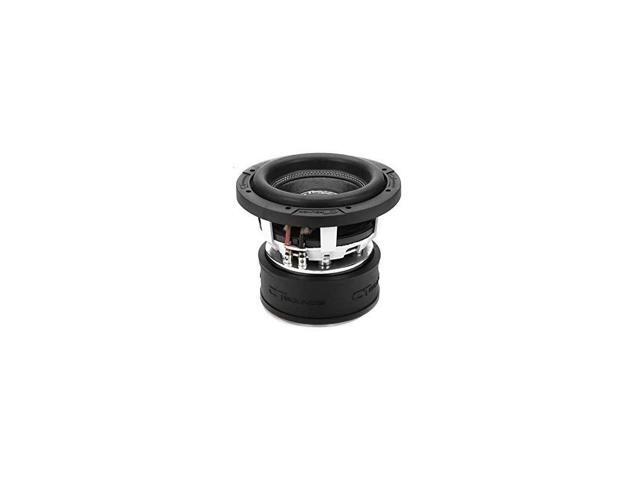

Inch D2 Ohm: With better and tougher technological approach than the previous model, has brought its next Meso series product- Meso 2.0 8” D2. This is one of the prettiest amplifier powered car subwoofers, which is well capable of taking care of your vehicle stereo low frequency bass.
Features:
1. It is a 2O (ohm) dual voice coil
2. This is an 800W (rms) subwoofer with maximum 1600W power capacity.
3. It can be mounted in depth of 6.6 ” pretty credibly. 4. 2.5 ” (diameter) voice coil make this produversatile irrespective of its size, dimensions and power consumption.
5. It incorporates Y35 graded ferrite magnet, which is one of the kings in the magnet world! The magnet is safely kept inside a firm and strong casing attached to the sub basket.
6. Strong, sturdy and stupendous arms grab the basket frame inflexibly. Therefore, the sub is well capable of handling high-powered audio frequency without any harm to the product; even at highest rated inputs from the channel amplifier!
Specifications:
1.
Size: 8”
2.
Cutout diameter: 7.28 ” / 185 mm
3.
Overall diameter: 8.7 ”
4.
Nominal impedance: 2O
5.
Power handling: 800W (rms), 1600W (max)
6.
Voice coil diameter: 2.5 ” ( 63.5 mm)
7.
Displacement: 0.08 ft3
8.
Fs: 41.099 Hz
9.
Qts: 0.388
10.
Qes: 0.418
11.
Qms: 5.356
12.
Vas: 7.390 liters 13.
SPL: 82.80 dB (@ 1w/1m)
14.
Magnet weight: 160 oz
15.

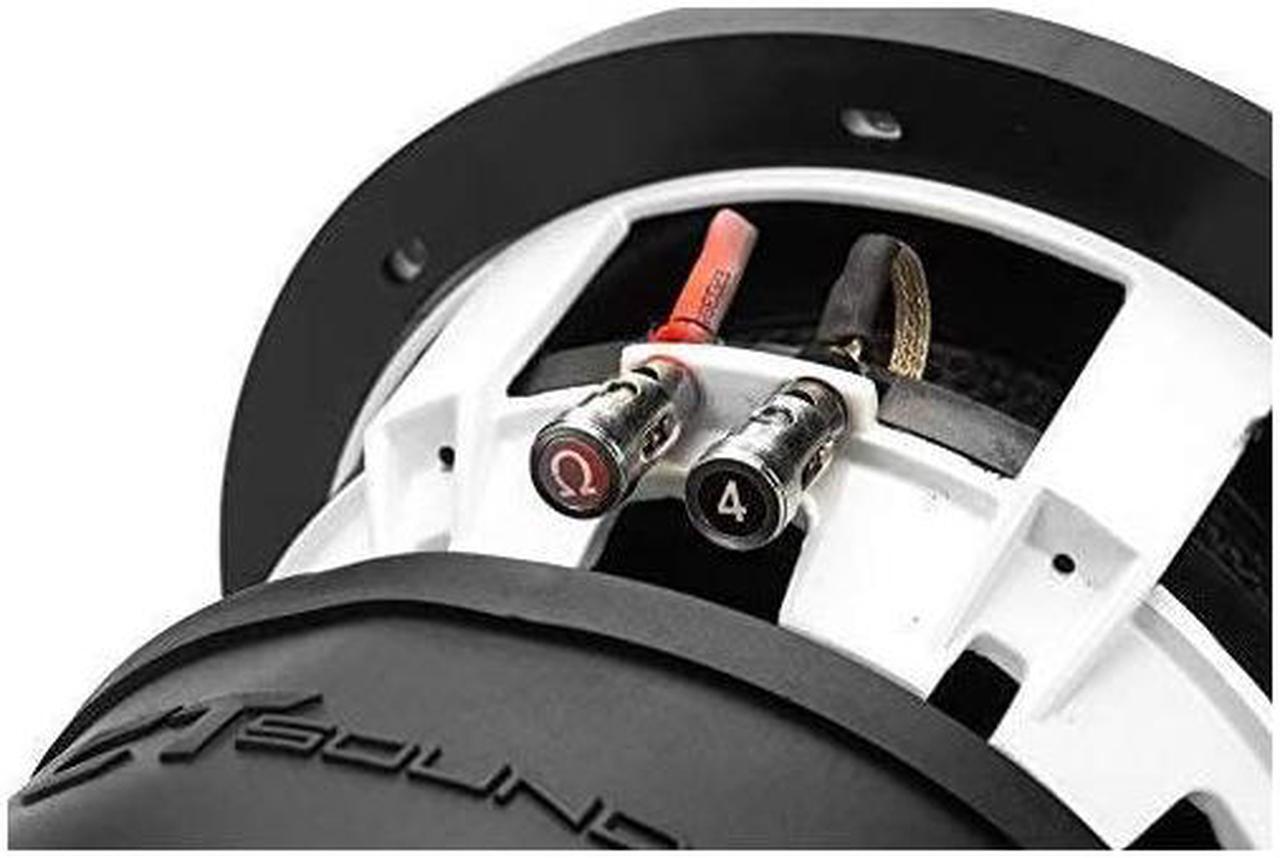

Speaker connector: 8 AWG
16.
Re: 1.8 O
17.
Sd: 201.60 cm2
18.
Xmax: 18 mm
19.
Mounting depth: 6.6 ”
20.
Shipping weight: 26.72 lbs ( 12.12 Kg)
21.
Sealed box volume: 0.3 ft3
22.
Ported box volume: 0.5 - 0.75 ft3
