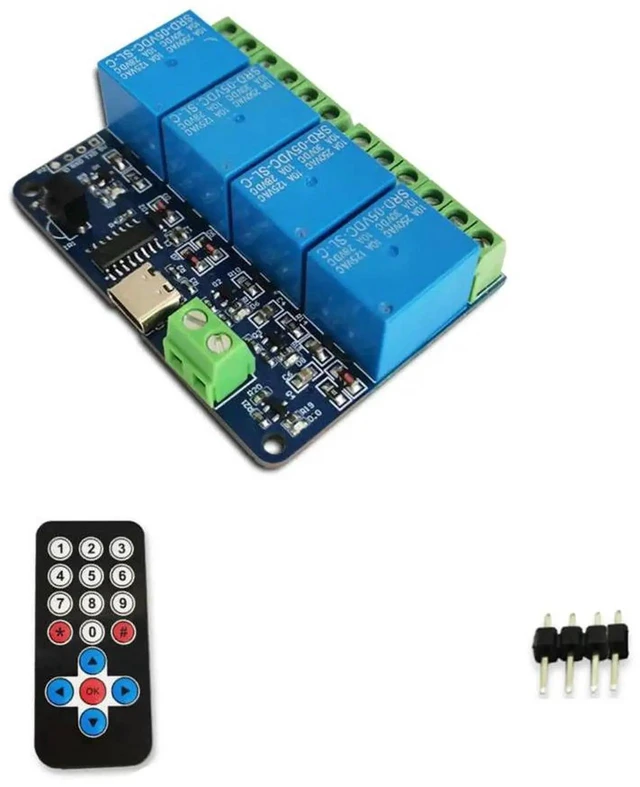

AJMRTC DC5V 4Channel IR Remote Control Relay Module with TypeC Power Port, Infrared Receiver Relay Board Supports Selflocking Jog Interlocking Modes for Smart Home Switch DIY Automation Control Pro
- 4channel infrared remotecontrol relay module powered by DC 5V with TypeC power input port for convenient powersupply connection.
- Supports three working modes: selflocking, jog and interlocking to meet different equipmentcontrol logic requirements for automation builds.
- Receives infrared remotecontrol signals to independently switch four relay output channels for household electricaldevice onoff control.

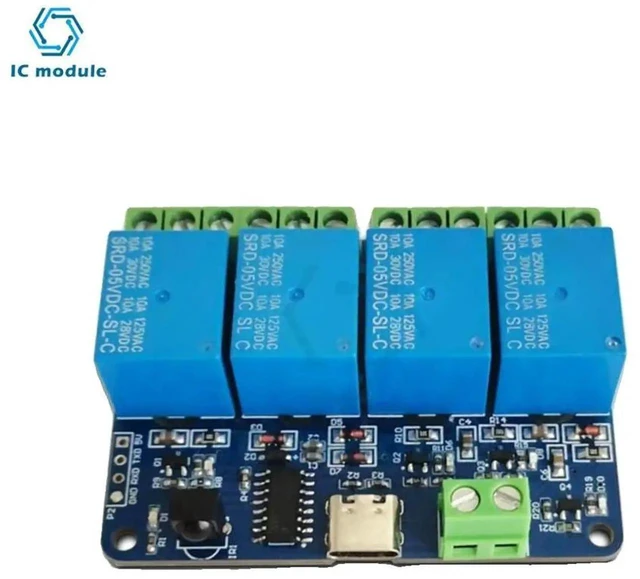

- Compact circuitboard layout, supports remote wireless operation, ideal for smarthome modification, experimental control and DIY automation systems.
- Relay contact isolation separates control side and load side, enhances system stability for lowvoltage electroniccontrol applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

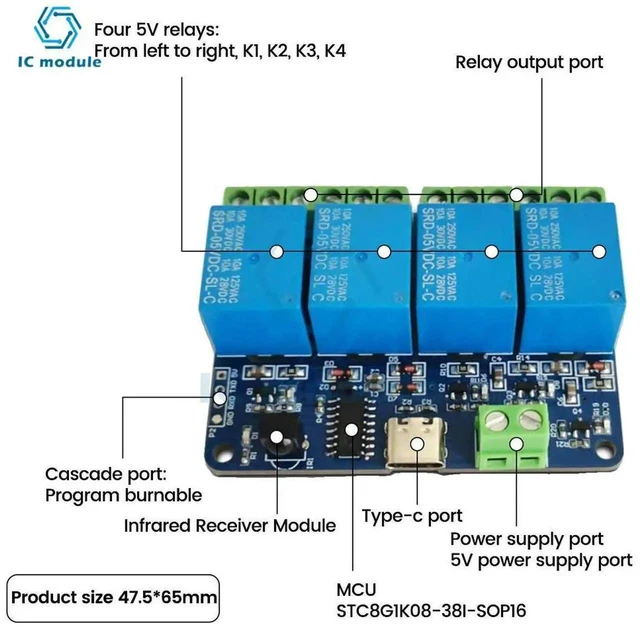

AJMRTC DC5V fourchannel IR remotecontrol relay module is a multimode wireless switch control board for DIY automation and smarthome projects. Adopting TypeC interface for 5V power supply input, users can get power conveniently from common USB adapters or power banks. This module provides four relay output channels which can be triggered by matched infrared remote controller. Three configurable working modes including selflocking, jog and interlocking are selectable to realize diverse control logics for your loads. Selflocking keeps output status after remote trigger; jog mode maintains output only while holding remote button; interlocking ensures only one channel activates at one time. Relay contact isolation isolates infrared control circuit from load circuit to reduce interference risk. It can be applied to smalllamp control, equipment poweronoff transformation, laboratory test setup and smarthome hardware modification. Please pay attention to relay contact rated current and voltage parameters; do not connect loads exceeding relay specification limits.
SpecificationsBrand: AJMRTC Module Type: 4Channel IR RemoteControl Relay Module Power Input: DC 5V, TypeC port Control Method: Infrared remote control Working Modes: Selflocking, Jog, Interlocking Output: 4Channel relay contact output Application: Smarthome modification, DIY automation, experimental equipment control Remarks: Do not exceed rated voltage and current limits of relay contacts; IR remote is not included
