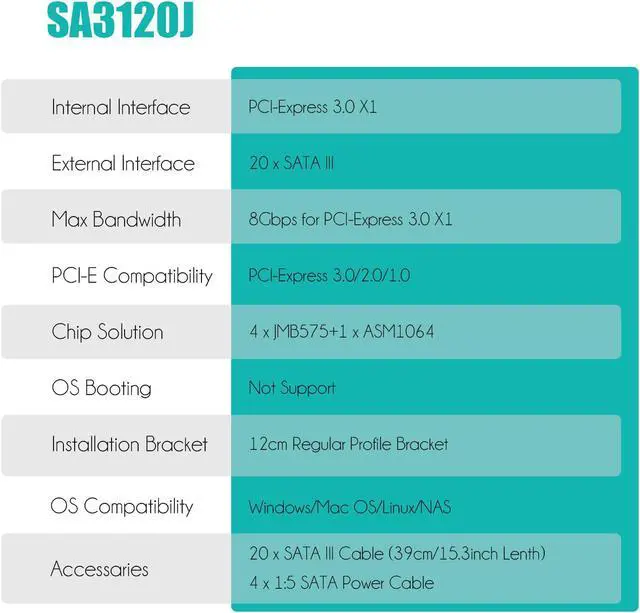

Model: SA3120J
| Internal Interface | PCI-Express 3.0 X1 |
|---|---|
| External Interface | 20 x SATA III |
| Total Bandwidth | 1GB/s |
| Chip Solution | 4 x JMB575+1 x ASM1064 |
| OS Boot | No |
| OS Compatibility | Windows/Mac OS/Linux/NAS (no support Windows XP) |
| SATA Controller Mode | AHCI |
| LED Indicator | Red color is working status, Red flashing is data reading/writing |
| Accessaries | 20 x SATA III cable; 4 x 1:5 SATA Splitter Power Cable |

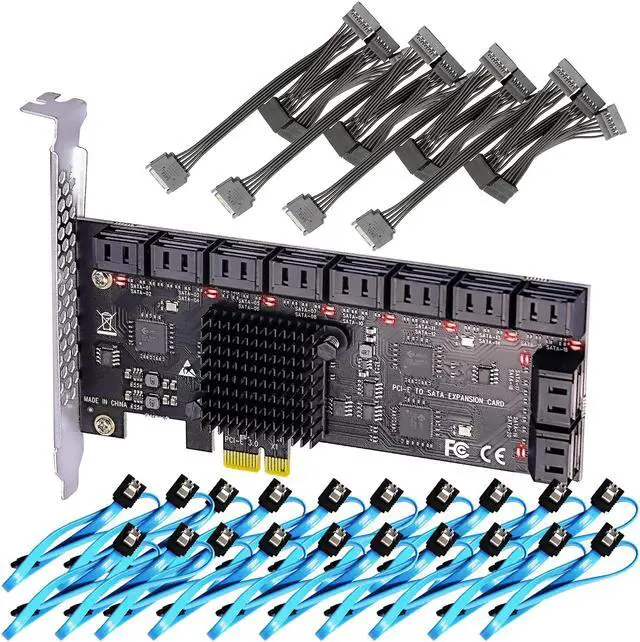

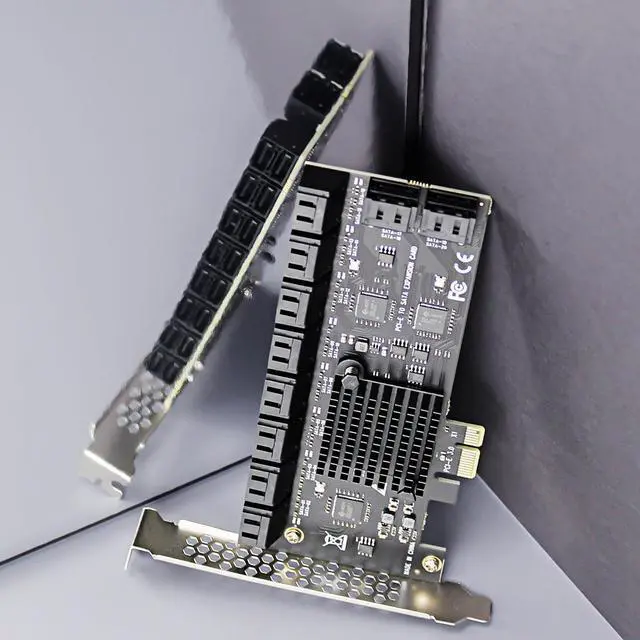

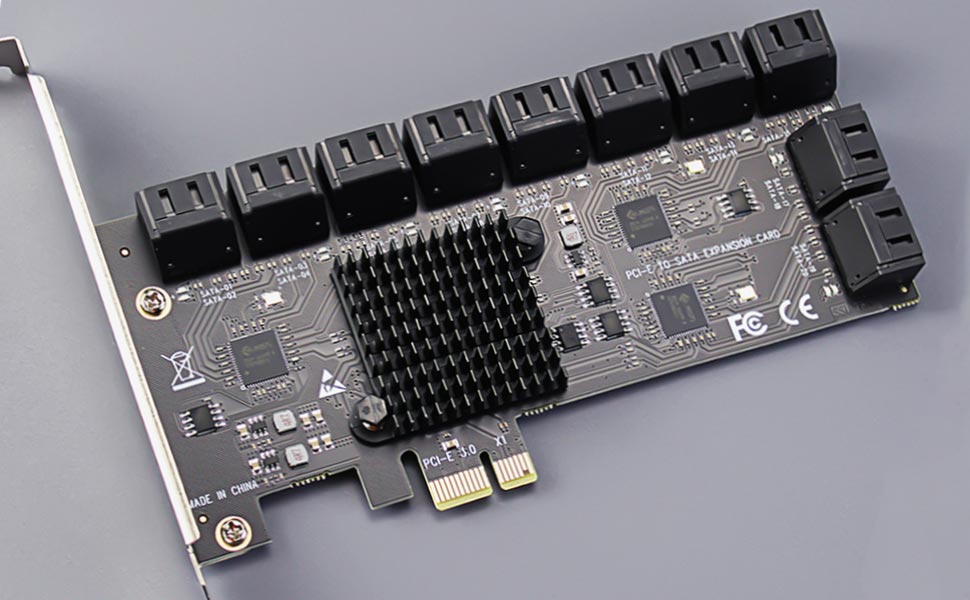

20 Port PCIe 3.0 X1 SATA Adapter
- PCI-Express X1 extends 20 x SATA III 6Gbps ports, so the Desktop PC/Server/NAS can access 20 x SATA drivers at the same time.
- Set up a storage pool with 20 x SATA disks, and configure Software RAID in windows/Mac OS/Linux. (Note: Not support Hardware RAID)
- Widely OS Compatibility: No need extra driver. Plug and play in Windows/Mac OS/Linux/NAS/UBUNTU/ESXI. (Note: Not support OS Booting)
- Includes all accessories, ready for operation: 20 x SATA III cable; 4 x 1:5 SATA Splitter Power Cable

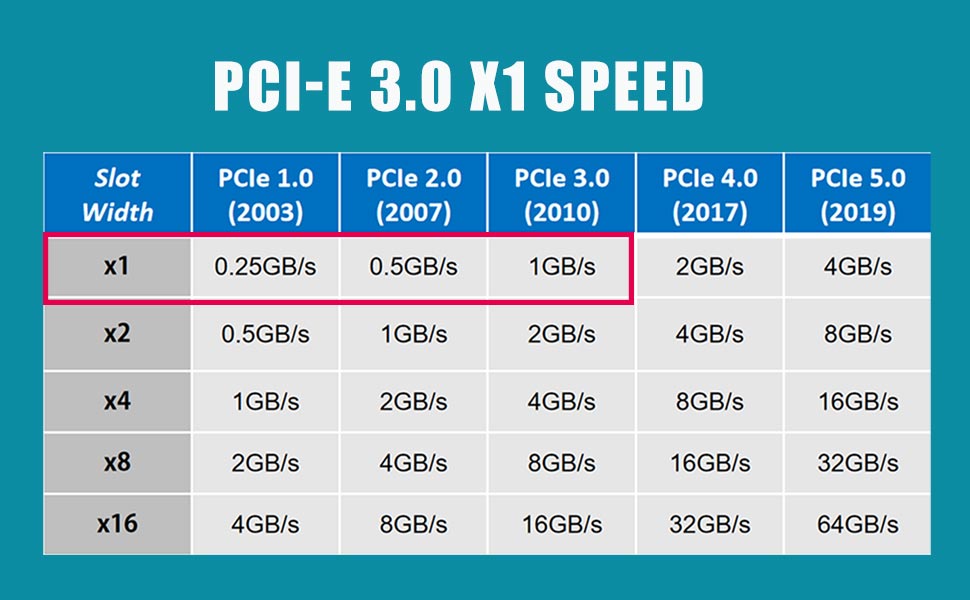

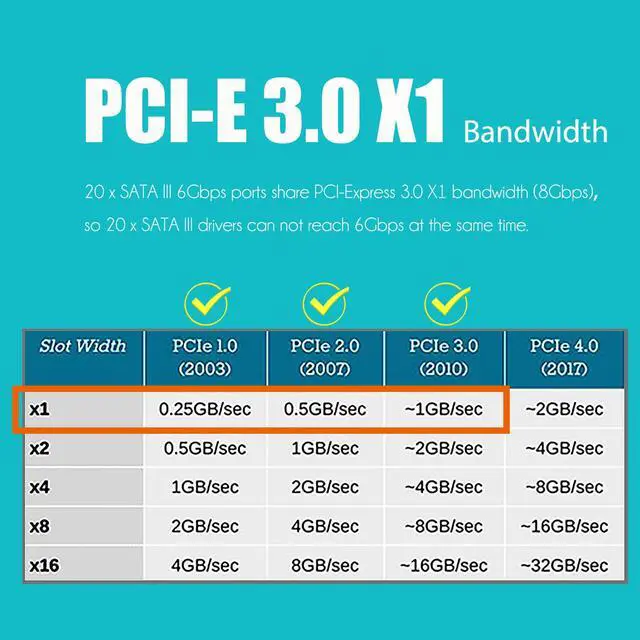

PCIE 3.0 X1 Speed
- Most motherboards have a free PCI-Express X1 interface.
- Use this PCI-Express X1 interface to connect a 20-port SATA hard drive storage pool
- This is a high-capacity storage solution with the advantage of occupying only one PCI-Express X1 interface
- PCI-Express 3.0 X1 (8Gbps) is fast enough for most needs

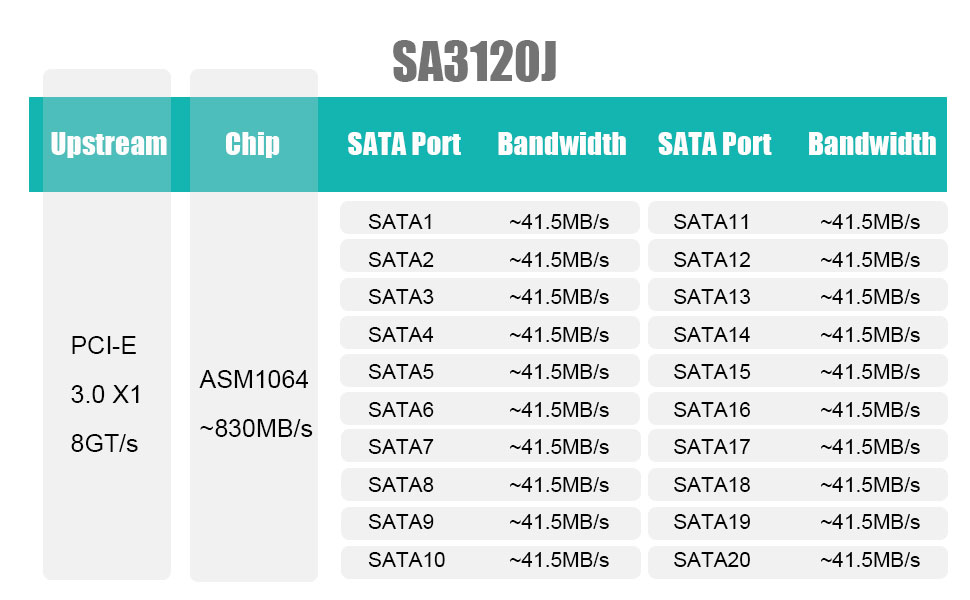

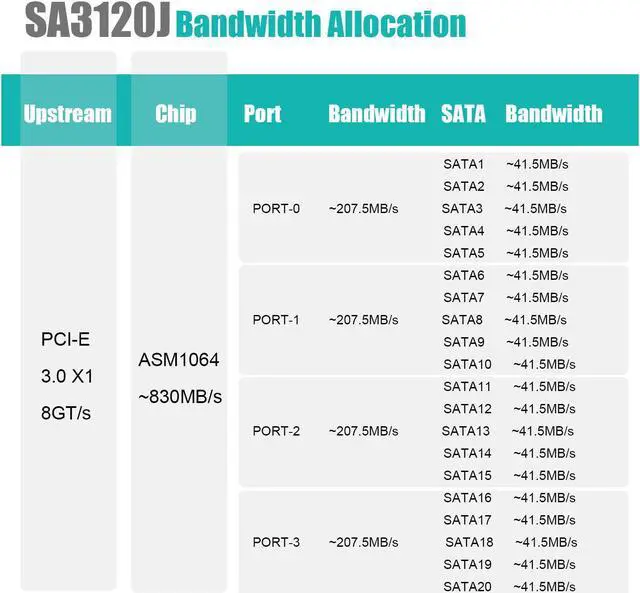

Bandwidth Allocation
- SATA1-SATA20: ~41.5MB/s

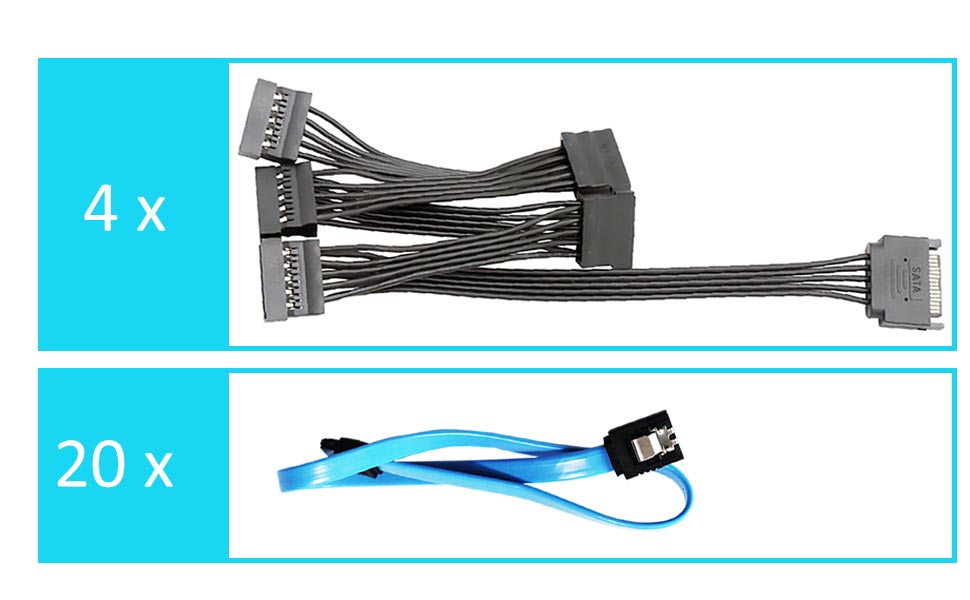

All cables are provided

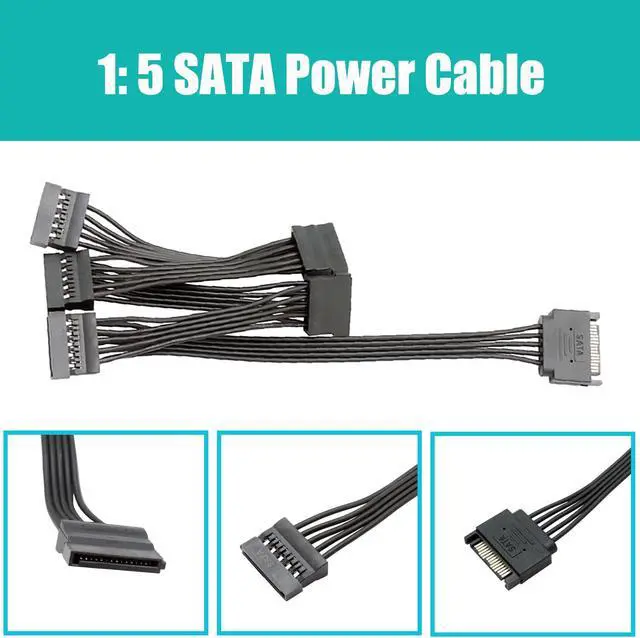

- 4 x 1:5 SATA Splitter Power Cable (170mm:800mm:800mm:800mm)
- 20 x SATA III cable (350mm)

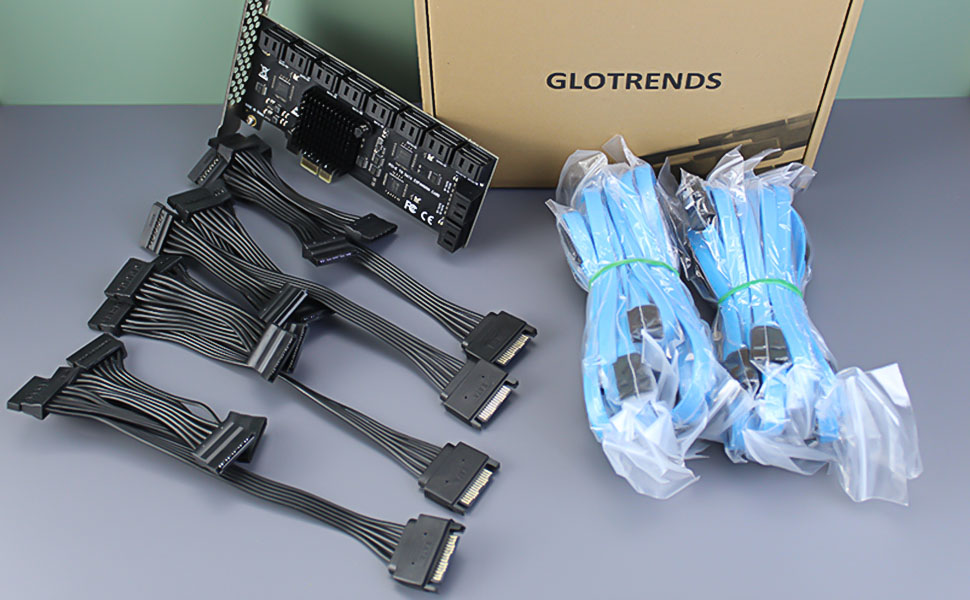

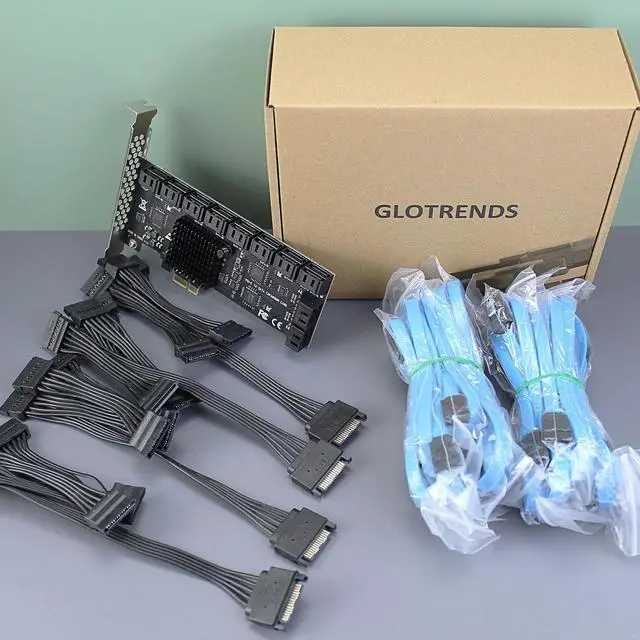

Package Including
- 20 port PCIe SATA Adapter
- 20 x SATA III cable
- 4 x 1:5 SATA Splitter Power Cable
| Products | ||||||
|---|---|---|---|---|---|---|
| Internal Interface | PCI-Express 3.0 X1 | PCI-Express 3.0 X2 | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 | PCI-Express 3.0 X8 |
| External Interface | 4 x SATA III | 6 x SATA III | 12 x SATA III | 16 x SATA III | 20 x SATA III | 24 x SATA III |
| Total Bandwidth | 1GB/s | 2GB/s | 1GB/s | 1GB/s | 1GB/s | 8GB/s |
| OS Boot | Yes | No | No | No | No | No |
