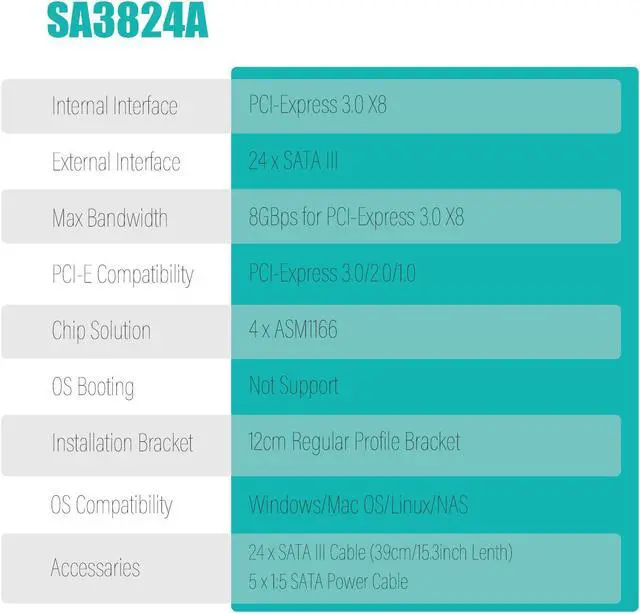

Model: SA3824A
| Internal Interface | PCI-Express 3.0 X8 |
|---|---|
| External Interface | 24 x SATA III |
| Total Bandwidth | 8GB/s |
| Chip Solution | 4 x ASM1166 |
| OS Boot | No |
| OS Compatibility | Windows/Mac OS/Linux/NAS (no support Windows XP) |
| SATA Controller Mode | AHCI |
| LED Indicator | Red color is working status, Red flashing is data reading/writing |

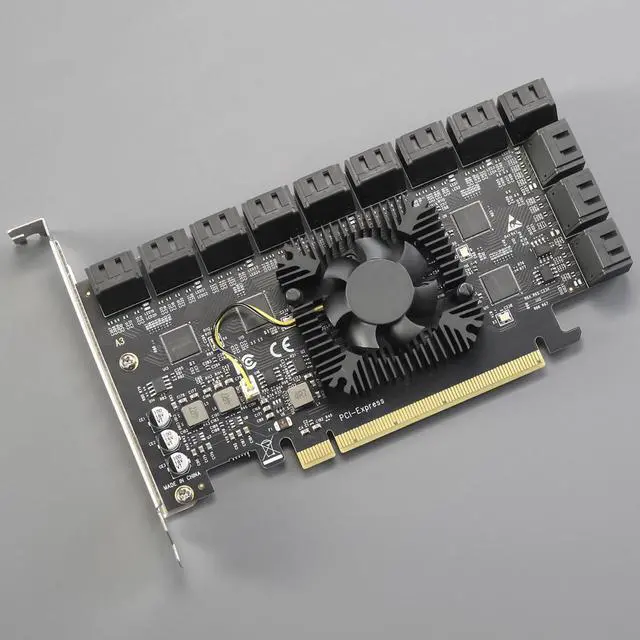

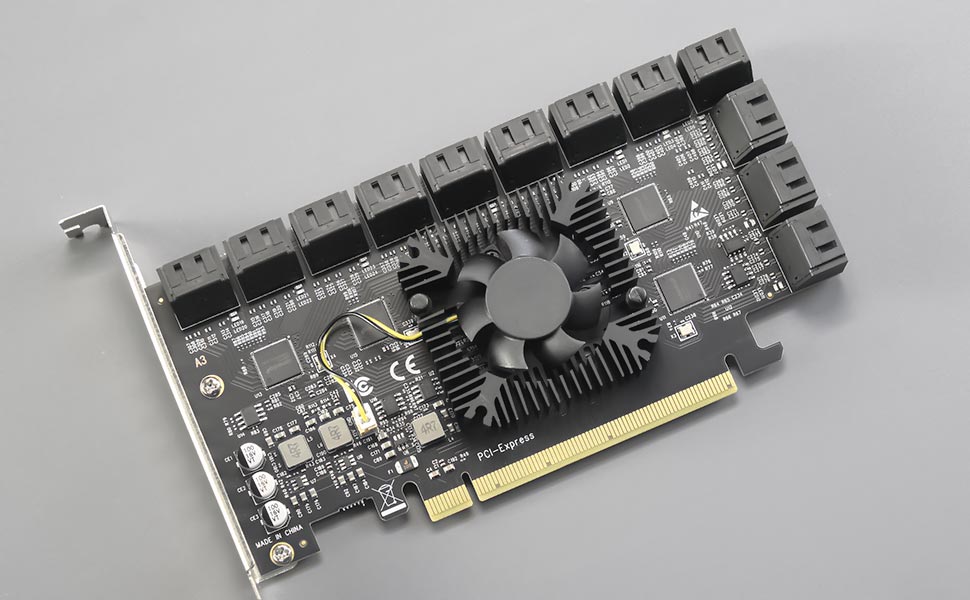

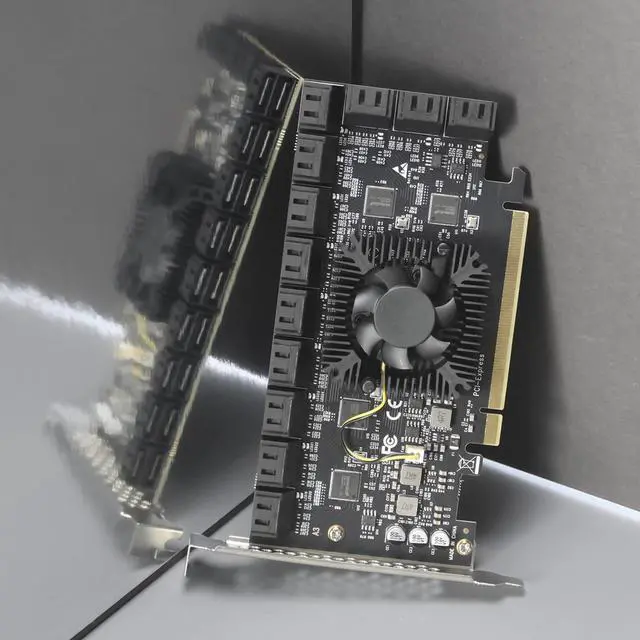

24-port PCIe 3.0 X8 SATA Adapter
- PCI-Express X16 extends 24x SATA III 6Gbps ports, so the Desktop PC/Server/NAS can access 24 x SATA drivers at the same time.
- Set up a storage pool with 24 x SATA disks, and configure Software RAID in windows/Mac OS/Linux. (Note: Not support Hardware RAID)
- Widely OS Compatibility: No need extra driver. Plug and play in Windows/Mac OS/Linux/NAS/UBUNTU/ESXI. (Note: Not support OS Booting)

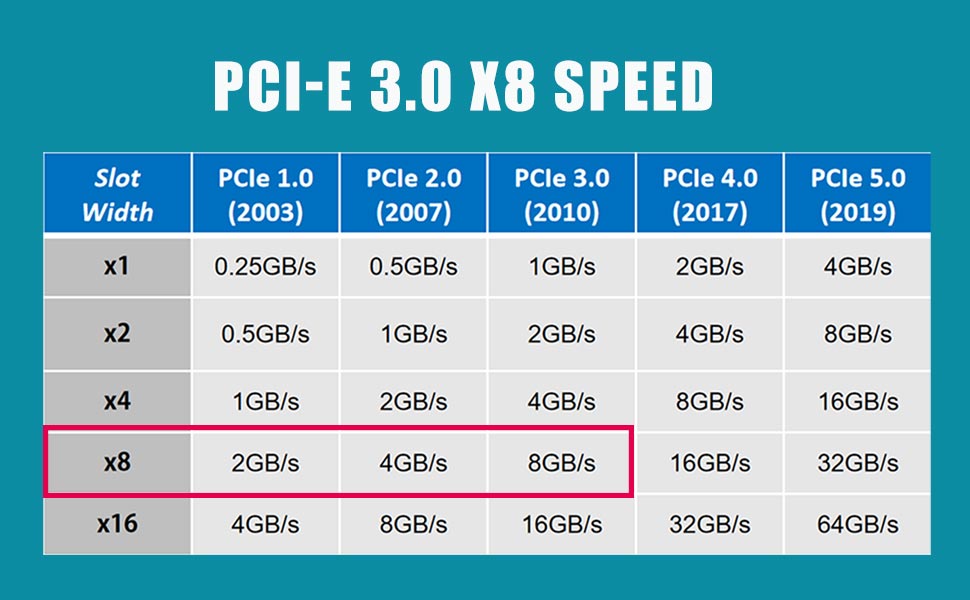

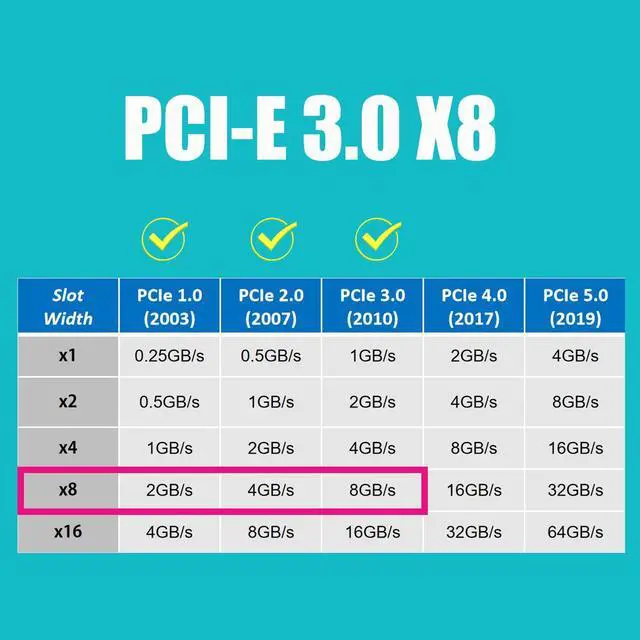

PCI-Express 3.0 X8 Bandwidth
- Use PCI-Express 16 interface to connect a 24-port SATA hard drive storage pool
- This is a high-capacity storage solution with the advantage of PCI-Express 3.0 X8 (8GB/s) speed

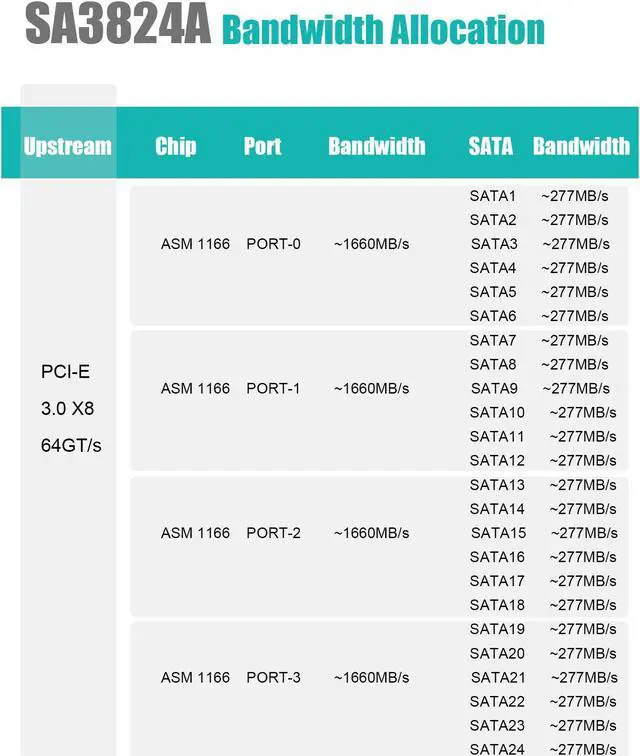

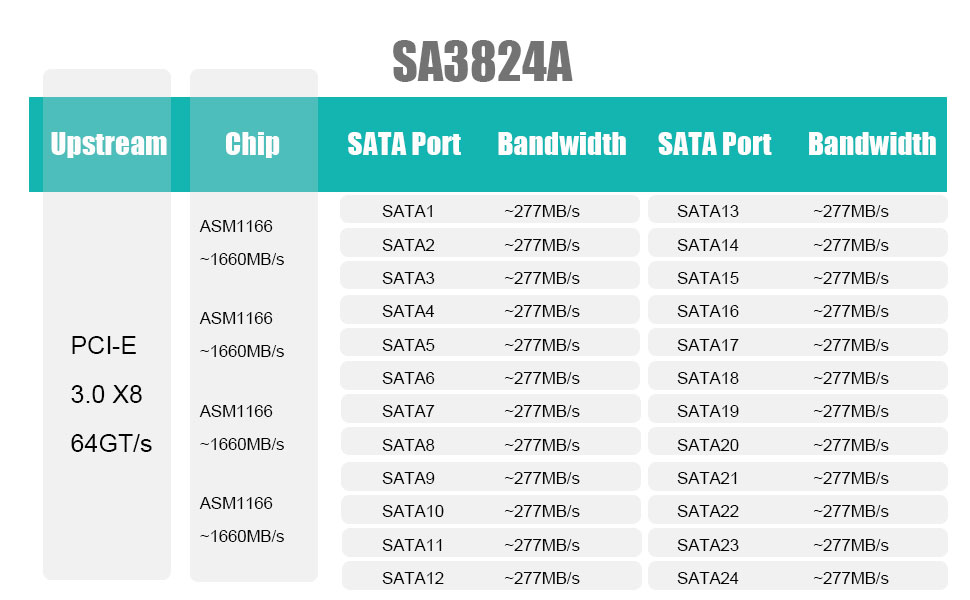

Bandwidth Allocation
- SATA1-SATA24: ~277MB/s

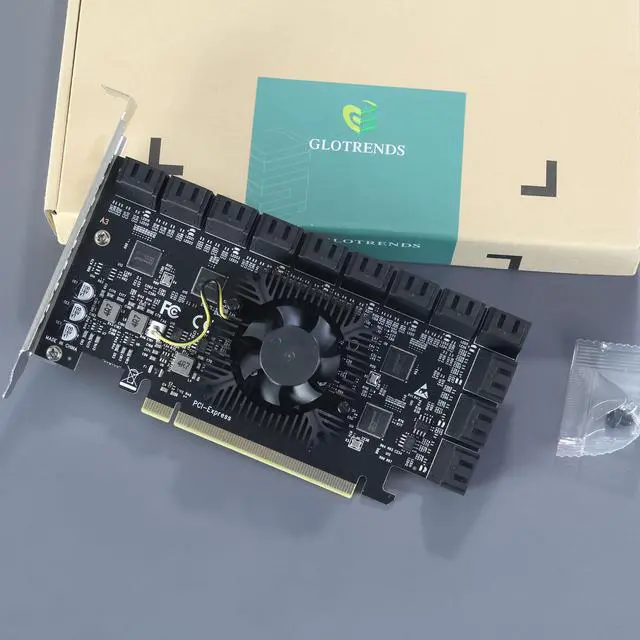

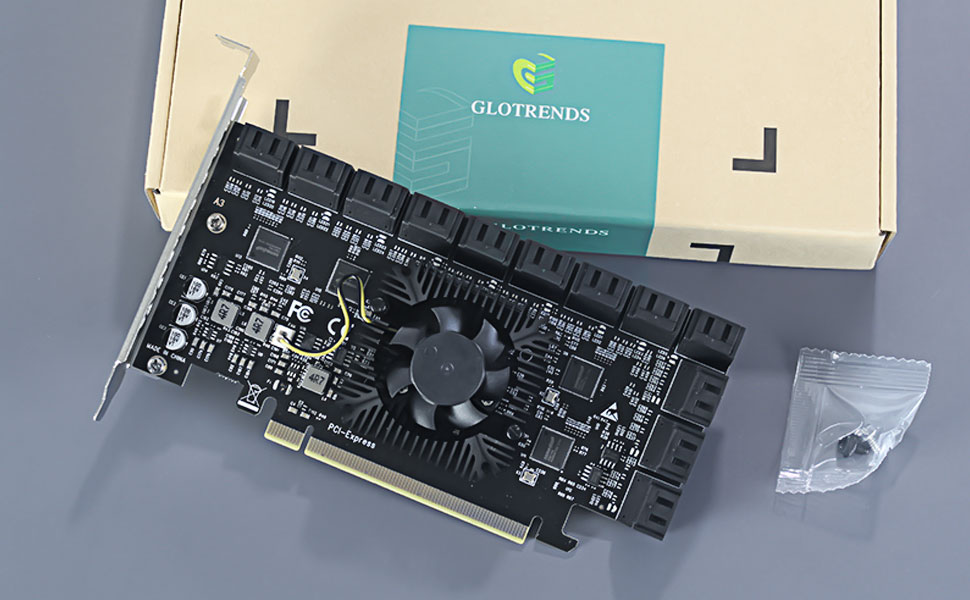

Package Including
- SA3824A
- Screw for mounting to PC chassis
| Products | ||||||
|---|---|---|---|---|---|---|
| Internal Interface | PCI-Express 3.0 X1 | PCI-Express 3.0 X2 | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 | PCI-Express 3.0 X1 | PCI-Express 3.0 X8 |
| External Interface | 4 x SATA III | 6 x SATA III | 12 x SATA III | 16 x SATA III | 20 x SATA III | 24 x SATA III |
| Total Bandwidth | 1GB/s | 2GB/s | 1GB/s | 1GB/s | 1GB/s | 8GB/s |
| OS Boot | Yes | No | No | No | No | No |
