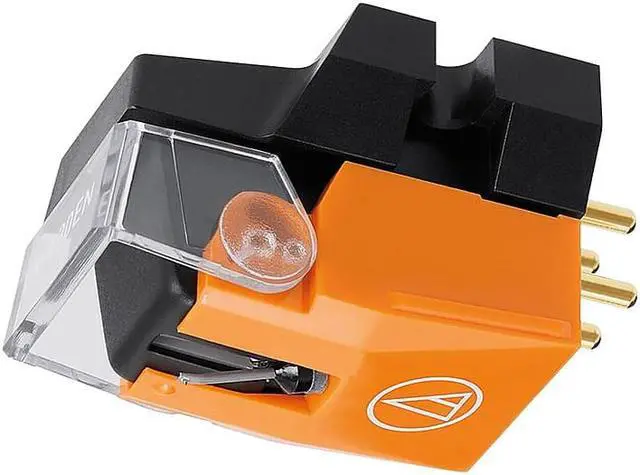

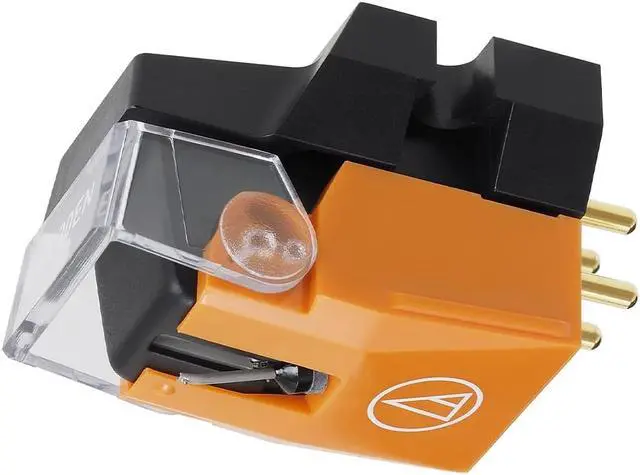

AudioTechnica VM530EN Dual Moving Magnet Cartridge

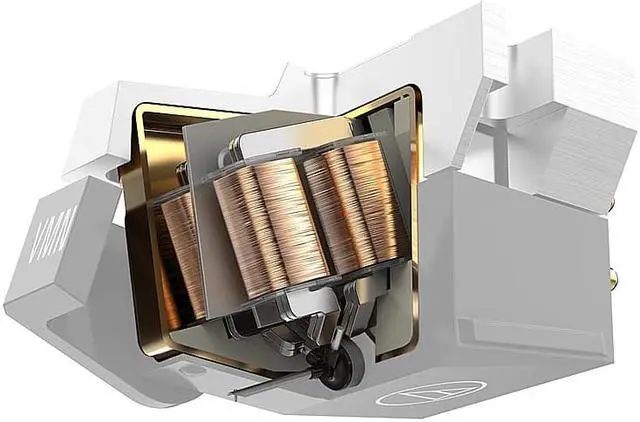

The VM530EN is a top-end elliptical stylus cartridge in Audio-Technicas new VM cartridge line a line that harks back to A-Ts early days as a manufacturer primarily of high-end phono cartridges while also incorporating todays advanced technology. Like all VM cartridges the VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridges lightweight 0.3 x 0.7 mil elliptical nude stylus reduces the execution mass of the vibration system enabling fuller frequency reproduction and less tracking distortion than a bonded stylus.

Features

• VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus


• Aluminum cantilever


• Paratoroidal coils improve generating efficiency


• Center shield plate between the left and right channels reduces crosstalk


• Durable low-resonance polymer cartridge housing

What's in the Box:

• VM530EN Dual Moving Magnet Cartridge


• Four cartridge installation screws


• Two washers


• Two hex nuts


• Non-magnetic screwdriver


• Brush

Specifications

• Frequency response: 20 - 25000Hz


• Channel separation: 27dB (1kHz)


• Vertical tracking force: 1.8 - 2.2g


• Stylus construction: Nude square shank


• Recommended load impedance: 47000 ohms


• Output: 4.5mV


• Channel balance: 1.5dB


• Stylus shape: 0.3 x 0.7 mil elliptical


• Mount: 1/2"


• Coil impedance: 2700 ohms (1kHz)


• DC resistance: 800 ohms


• Load capacitance: 100 - 200pF


• Coil inductance: 460mH (1kHz)


• Static compliance: 35 x 10-6cm/dyne


• Dynamic compliance: 8 x 10 - 6cm/dyne (100Hz)


• Vertical tracking angle: 23


• Dimensions (H x W x D): 0.7" x 0.7" x 1.1"


• Weight: 0.2 ounces
