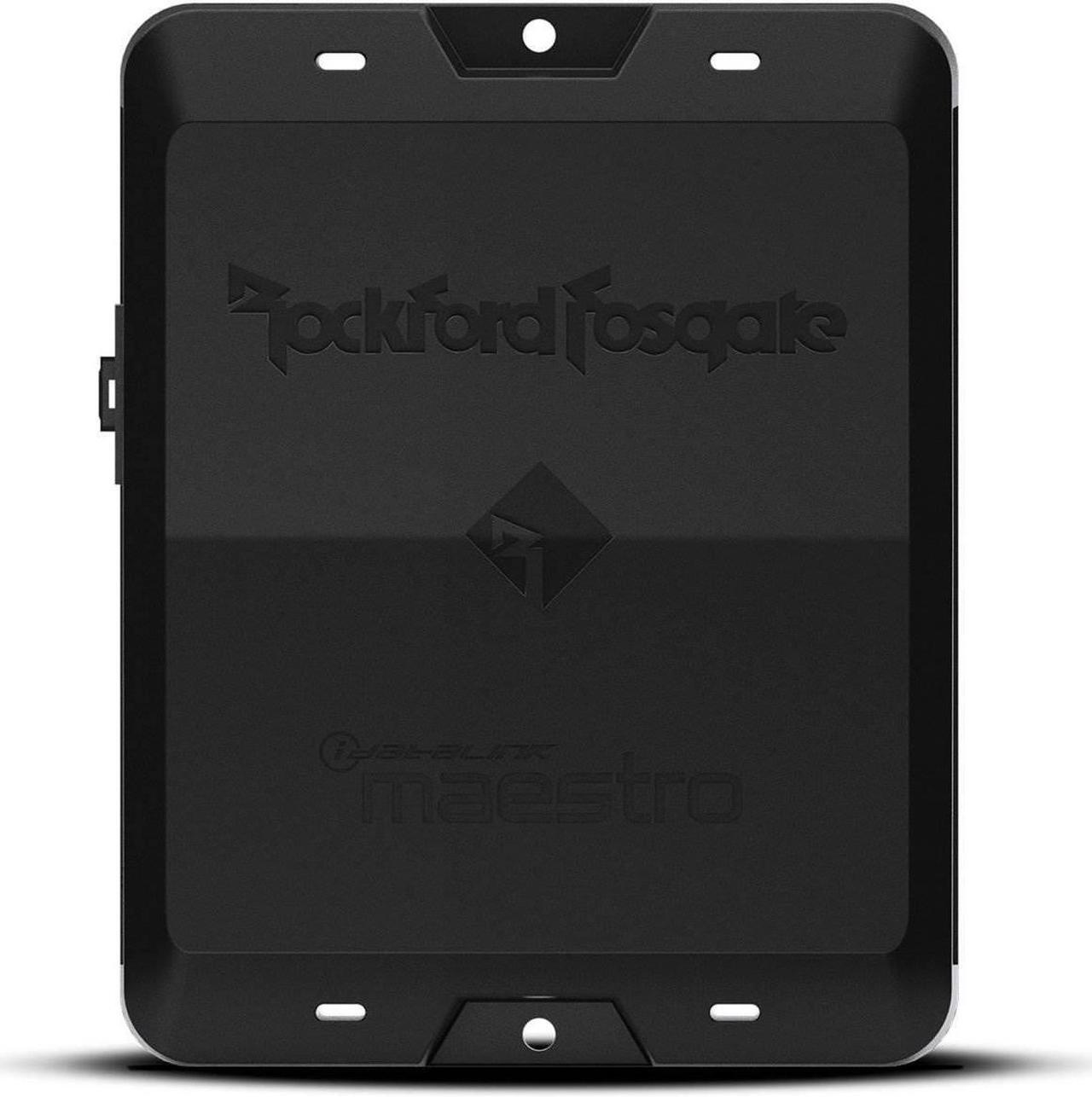

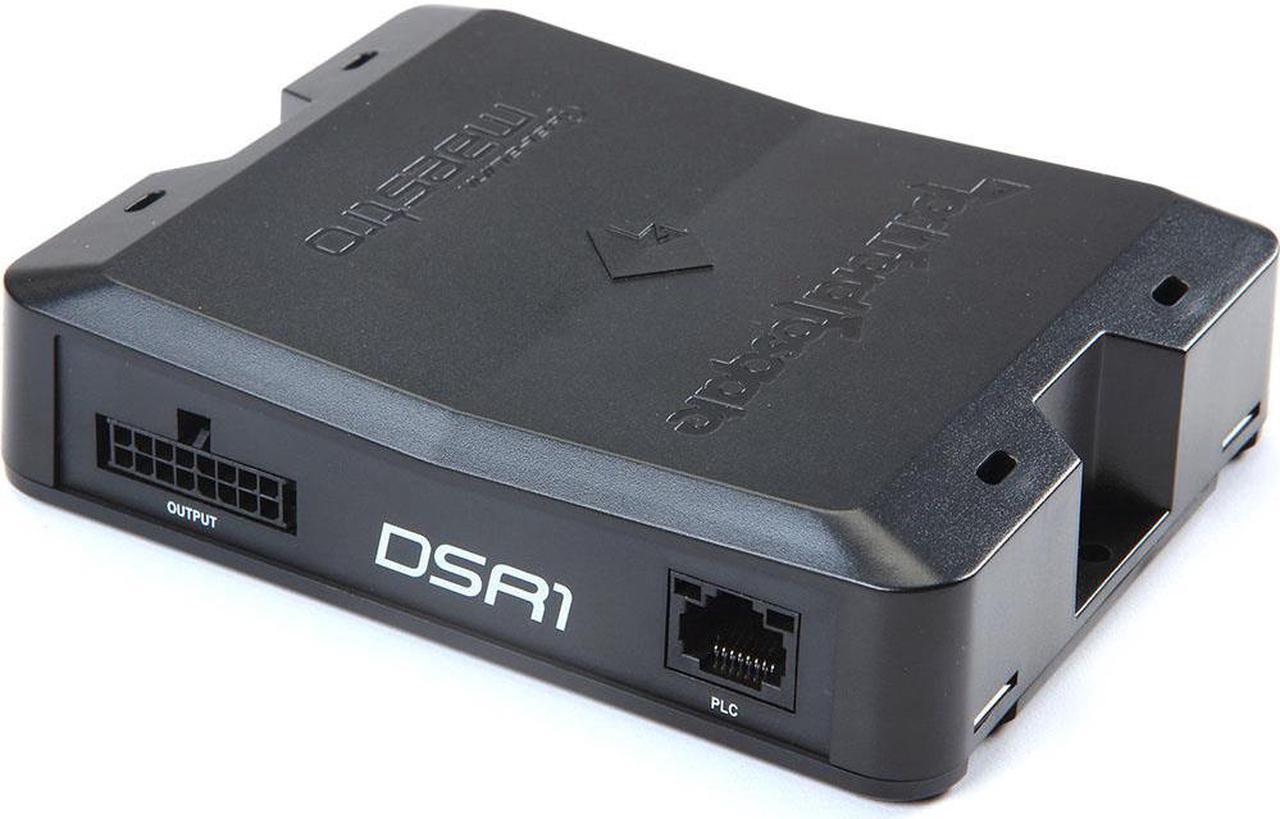

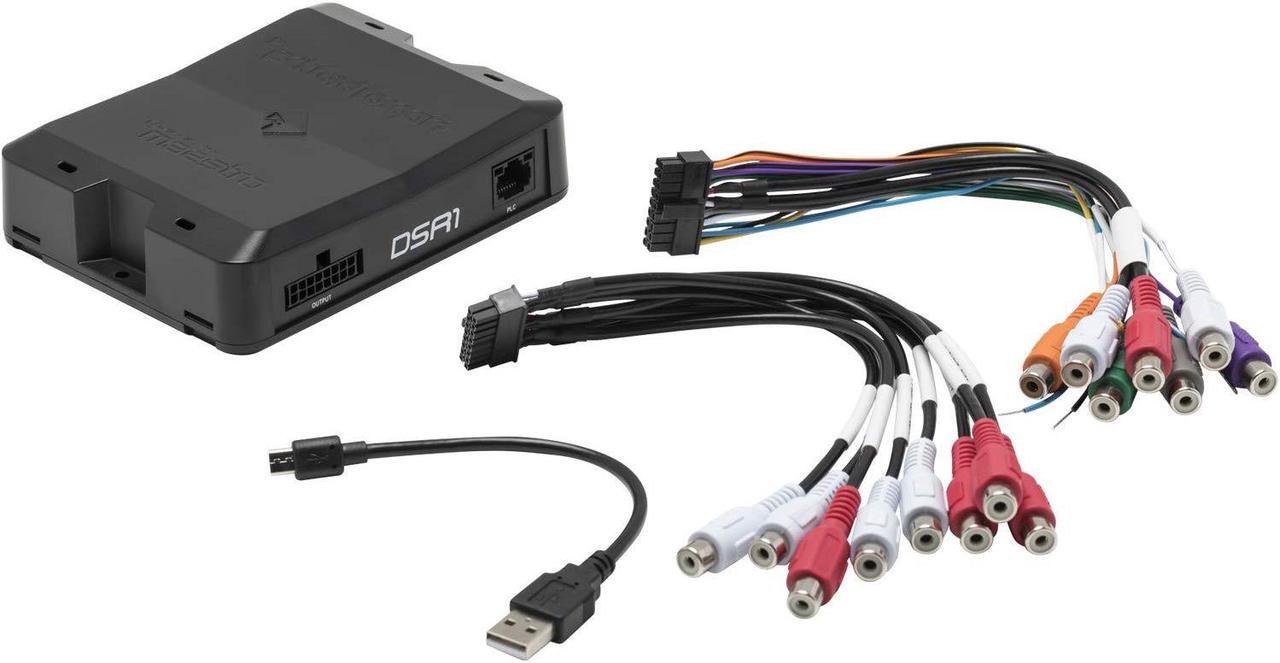

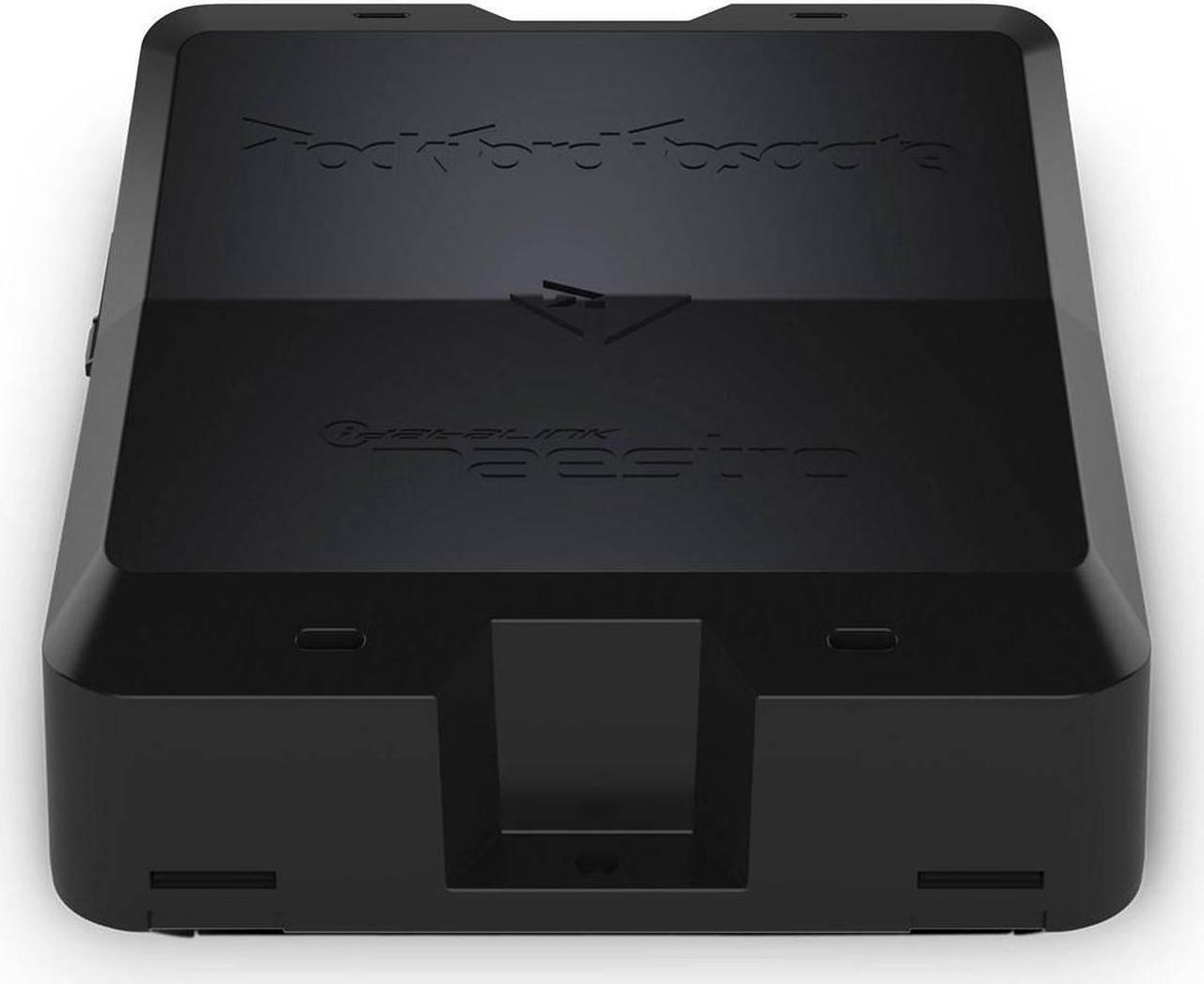

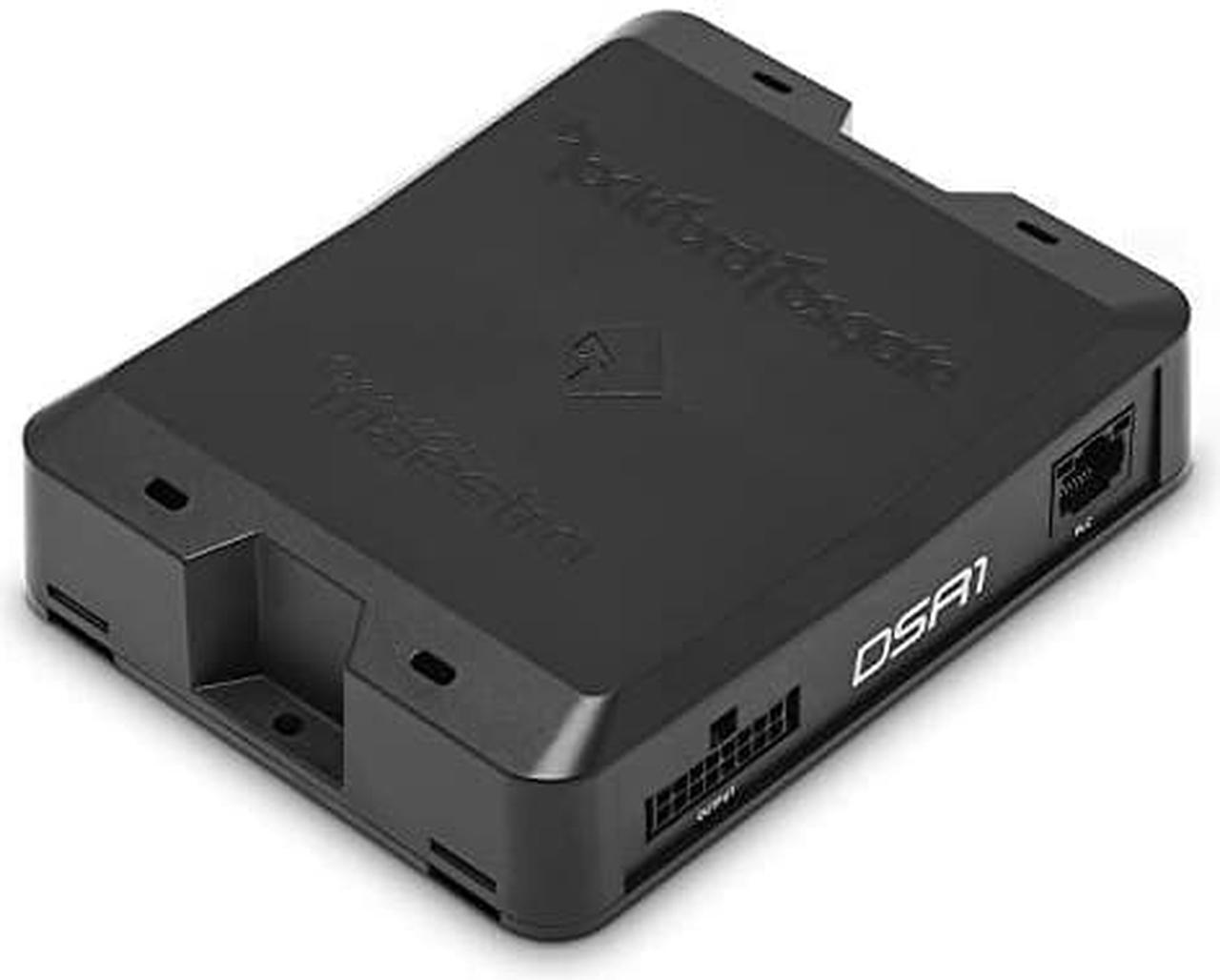

Rockford Fosgate DSR1 IDatalink Maestro ADS-DSR1 Digital Processor Amp Module
- Rockford Fosgate DSR1 Idatalink Maestro ADS-DSR1 Digital Processor Amp Module
Overview
Specs
Reviews (1)
Product highlights:
Digital Processing:
- digital signal processor with factory digital amplifier replacement module
- add an aftermarket amplifier without losing any factory controls or audio notifications
- requires Windows PC with internet connection to download vehicle-specific firmware to the module
- includes iDatalink Maestro AR interface to retain factory premium audio features
- supplies control data as well as audio

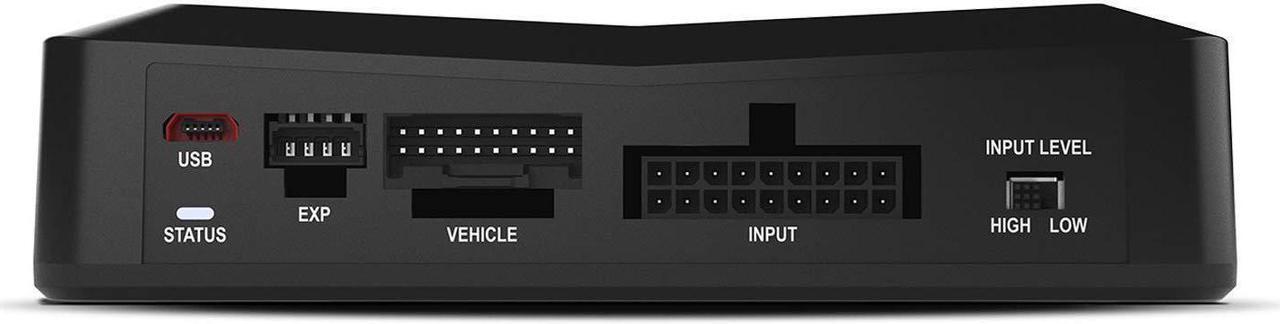

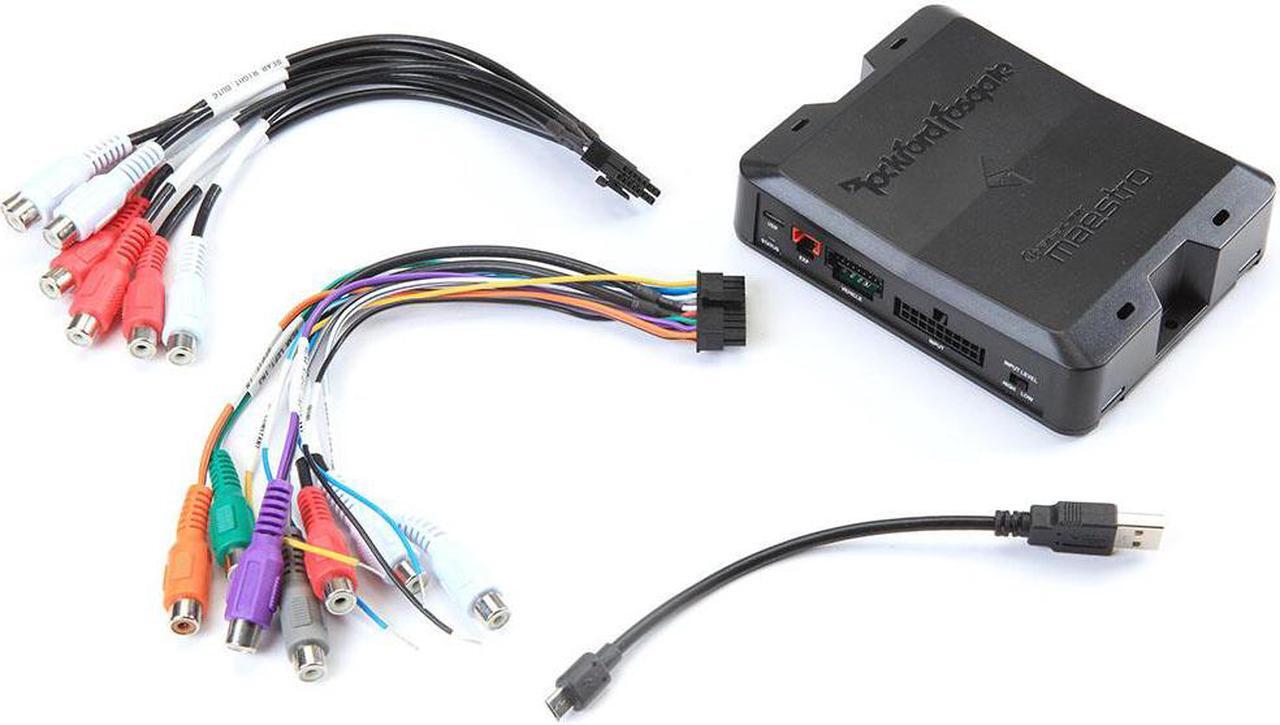

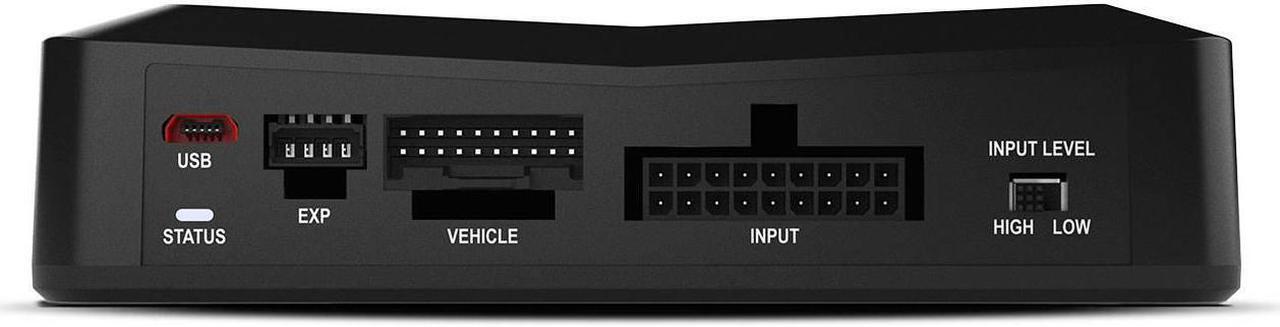

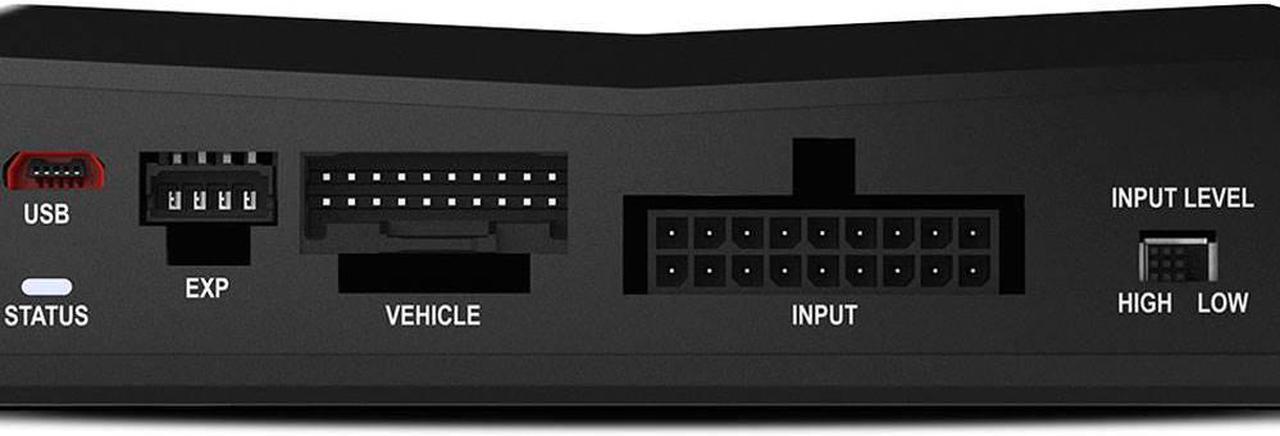

- preamp and speaker-level inputs for use with a non-premium system and no vehicle-specific harness
Digital Processing:
- digital processing technology from Rockford Fosgate's 3Sixty. 3 processor
- digital processing: 147 MIPS speed, 32-bit precision, 72-bit accumulators
- analog to digital: 24-bit precision, 105 dB dynamic range, -98 dB THD+N
- digital to analog: 24-bit precision, 108 dB dynamic range, -98 dB THD+N

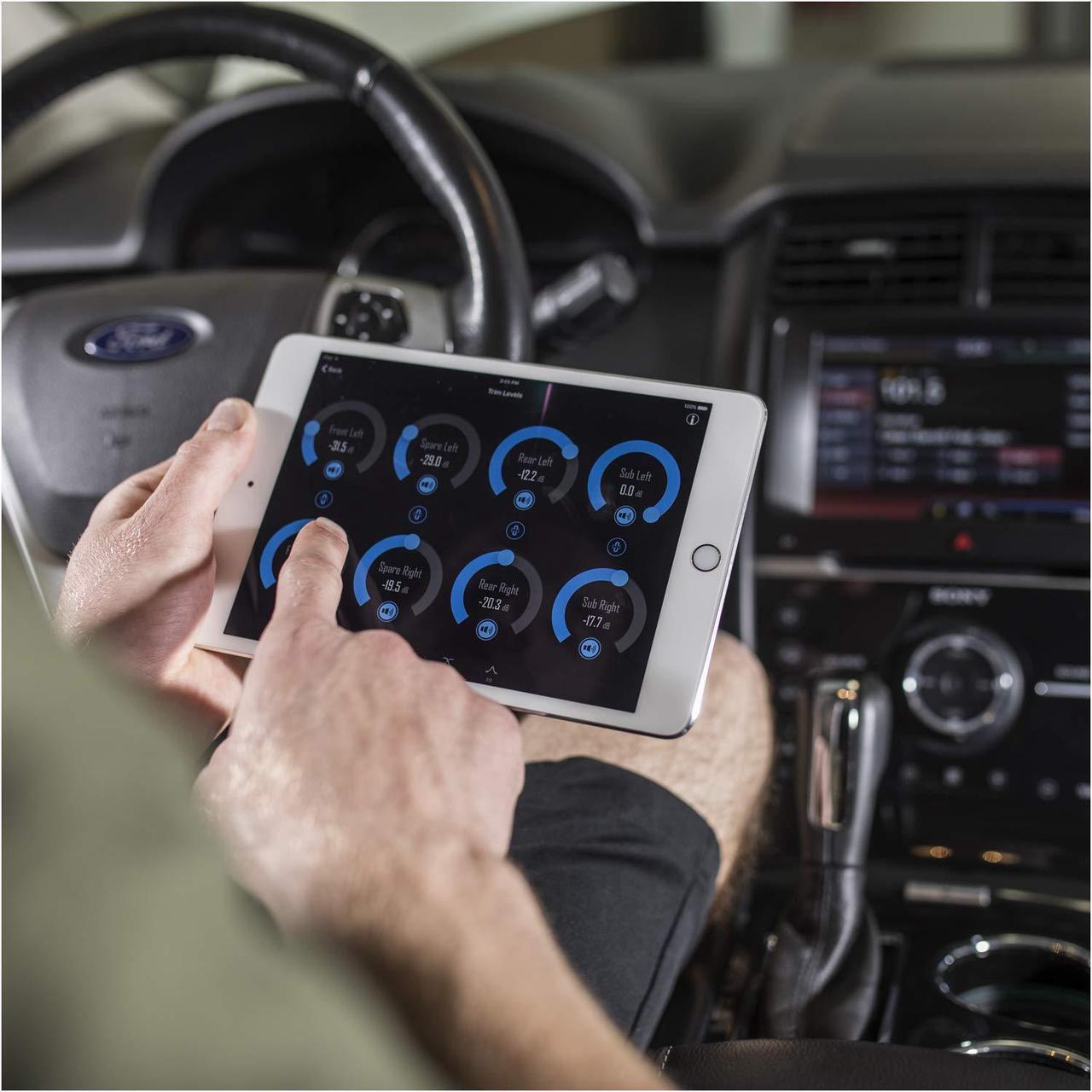

- settings and adjustments made via Bluetooth connection to a iOS or Android device running Perfect
Tune app - 8 assignable inputs

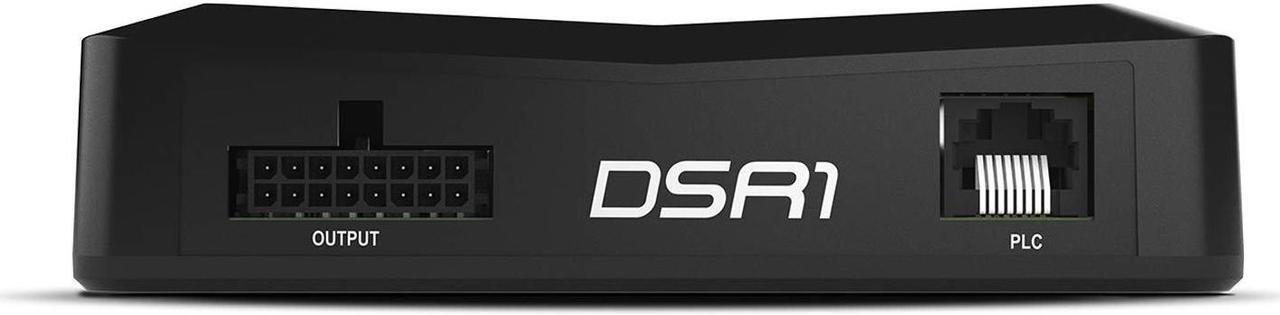

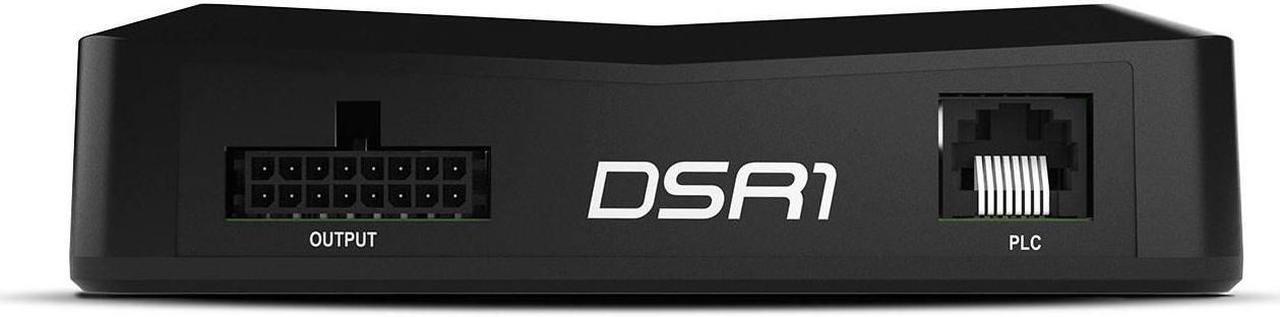

- 4 auxiliary RCA and 1 optical TOSLINK (S/PDIF) inputs
- 8 preamp outputs (up to 4 volts)
- 31-band parametric EQ on all channels
- crossover filters can be set as all-pass, high-pass, low-pass, bandpass, high-shelf, or low-shelf filters
- selectable slopes and filter characteristics
- phase switch on every channel
- settings and adjustments made via Bluetooth connection to a iOS or Android device running Perfect
- dimensions: 5-1/16"W x 1-1/4"H x 4"W
- warranty: 1 year
