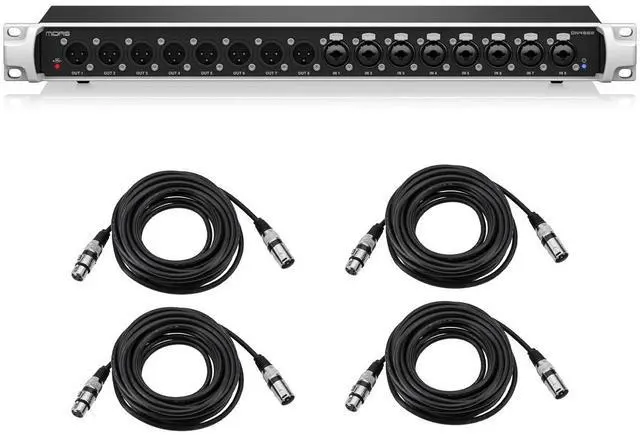

Midas DN4888 Bus-Powered StageConnect Interface with 8x8 Analogue Input/Output, Bundle with 4x H&A Value Series 25' XLR M to F Professional Microphone Cable
- INCLUDED - Midas DN4888 interface, power adapter, and 25' XLR cable. Everything you need for seamless audio integration and reliable performance right out of the box.
- SUPERIOR AUDIO QUALITY - Experience pristine sound with 24-Bit, 48/44.1 kHz conversion and a dynamic range of 110 dB DA / 106 dB AD, ensuring every nuance is captured.
- ULTRA-LOW LATENCY - Achieve near-instantaneous audio transmission with minimal I/O latency (Less Than5%), perfect for live performances and critical recording sessions where timing is key.
- VERSATILE CONNECTIVITY - Features 8x8 balanced XLR analog I/O, plus Ultranet and StageConnect, offering extensive options for integrating with various audio systems and devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DN4888The DN4888 is the perfect solution for connecting additional equipment to your monitor or FOH console. It provides 8 additional analogue in and outputs to enable for 8 analogue inserts or the connection to wireless devices, like 8 wireless microphones and 8 wireless in-ear systems. The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.
StageConnect - The Future of XLRWhat if any standard XLR or DMX cable could be used to transmit more than one channel of audio? What if that cable could transmit signals not only one way, but bi-directionally? What if that cable would allow the passage of control data or even MIDI at the same time? What if a connected StageConnect device could receive up to 18 W of power through that same cable? Well, these capabilities are exactly what StageConnect delivers - a new interface standard to be released by Music Tribe after two years of development.
The Midas DN48XX Series is one of the first available I/O-Interfaces based on the StageConnect-Standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.05 ms of latency. For optimum performance and long cable runs 110 Ohm DMX cable is required. Ecosystem and BeyondThe DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. StageConnect was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind the devices can be used with all StageConnect devices like HUB4. The StageConnect Ecosystem opens a wide field of audio devices. May it be several I/O devices spread over the Stage or equipment in the siderack - the use cases for the DN48XX Series StageConnect Interfaces are virtually endless. Cascade Interfaces to Meet Your RequirementsNo matter if you want to use StageConnect for connecting wireless systems, external effects or playback systems, the devices of the DN48XX series can easily be daisy-chained to meet the requirements of your respective I/O configurations. With a total bandwidth of 32 channels, all combinations ranging from 32 inputs over 16 in and outputs in parallel to 32 outputs can be achieved using different combinations of DN48XX interfaces connected using a simple XLR cable.
Power via DC or StageConnectThe DN48XX Series devices can be powered via DC or via StageConnect. By design, every SC Master provides 18W of power that can be used by devices in the chain. Depending on the respective power consumption multiple devices in the chain can be phantom powered by a single Master device. It should be noted that an SC device in the chain that is supplied with DC power can supply other devices connected to its Master Port as well. To check your respective setup for power consumption, use the StageConnect Calculator (SSC Tool). This tool checks a virtually configured chain for the DMX cable lengths, power supply, audio routing and other parameters. Automatic Bus ConfigurationThere are two ways to configure an SC Chain. Either you can manually configure the chain using devices like WING or let the Automatic Bus Configuration do its work. This process adapts the input and output configuration of the SC Bus depending on the connected devices. Simply connect devices and the Master device of the chain will automatically change the routing. To check and plan setups, the SSC Tool software is available, providing information about the routing and DMX cable length, power management and other parameters.
Analogue I/O for External EffectsThe DN4888 features 8 balanced line-level in and outputs that can feed external FX processors
StageConnect - The Future of XLRWhat if any standard XLR or DMX cable could be used to transmit more than one channel of audio? What if that cable could transmit signals not only one way, but bi-directionally? What if that cable would allow the passage of control data or even MIDI at the same time? What if a connected StageConnect device could receive up to 18 W of power through that same cable? Well, these capabilities are exactly what StageConnect delivers - a new interface standard to be released by Music Tribe after two years of development.
The Midas DN48XX Series is one of the first available I/O-Interfaces based on the StageConnect-Standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.05 ms of latency. For optimum performance and long cable runs 110 Ohm DMX cable is required. Ecosystem and BeyondThe DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. StageConnect was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind the devices can be used with all StageConnect devices like HUB4. The StageConnect Ecosystem opens a wide field of audio devices. May it be several I/O devices spread over the Stage or equipment in the siderack - the use cases for the DN48XX Series StageConnect Interfaces are virtually endless. Cascade Interfaces to Meet Your RequirementsNo matter if you want to use StageConnect for connecting wireless systems, external effects or playback systems, the devices of the DN48XX series can easily be daisy-chained to meet the requirements of your respective I/O configurations. With a total bandwidth of 32 channels, all combinations ranging from 32 inputs over 16 in and outputs in parallel to 32 outputs can be achieved using different combinations of DN48XX interfaces connected using a simple XLR cable.
Power via DC or StageConnectThe DN48XX Series devices can be powered via DC or via StageConnect. By design, every SC Master provides 18W of power that can be used by devices in the chain. Depending on the respective power consumption multiple devices in the chain can be phantom powered by a single Master device. It should be noted that an SC device in the chain that is supplied with DC power can supply other devices connected to its Master Port as well. To check your respective setup for power consumption, use the StageConnect Calculator (SSC Tool). This tool checks a virtually configured chain for the DMX cable lengths, power supply, audio routing and other parameters. Automatic Bus ConfigurationThere are two ways to configure an SC Chain. Either you can manually configure the chain using devices like WING or let the Automatic Bus Configuration do its work. This process adapts the input and output configuration of the SC Bus depending on the connected devices. Simply connect devices and the Master device of the chain will automatically change the routing. To check and plan setups, the SSC Tool software is available, providing information about the routing and DMX cable length, power management and other parameters.
Analogue I/O for External EffectsThe DN4888 features 8 balanced line-level in and outputs that can feed external FX processors
