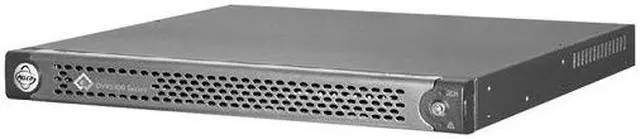

Pelco ENC5316 USB Multi-Channel Video Encoder (NOB)
- Brand: Pelco
- Model Number: ENC5316
- Product Type: Video Encoder
- Condition: New Open Box
- Note: No Warranty from Manufacture, 90-Days Warranty from Seller Only
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Pelco ENC5316 USB Multi-Channel Video Encoder (NOB)
Brand: Pelco
Model: ENC5316
Product Type: Video Encoder
Video Inputs: 16, BNC, looping, 0.5-1 Vp-p
PTZ Control: Coaxitron
Alarm I/O: Alarm Inputs: 8 or 16, programmable, 5.0 VDC, 10 kohms, triggered, CM9760-ALM compatible
Relay Outputs: 2 or 4, form-C relay, 30 VDC 2 A or 125 VAC 0.5 A, CM9760-REL compatible
Motion Detection: 3 plus background zone, Zone Types: Any shape, user-definable in 16 x 16 pixel blocks
Sensitivity: Adjustable
Auxiliary Connectors: USB 2.0, 1 high-speed USB 2.0 port on rear panel, Alarms - 2 or 4, 8-pin terminal block, Relays - 1 or 2, 6-pin terminal block
LED Indicators: Power-Blue, USB Video Status-Red, USB Video Operation-Green, Unit Status-Green, amber, red
Power Input: 100-240 VAC, 50/60 Hz, 0.7 A, autoranging
Power Consumption: 100 VAC 40 W, 137 BTU/H, 115 VAC 40 W, 137 BTU/H, 200 VAC 40 W, 137 BTU/H
Construction: Steel cabinet
Finish Bezel: Gray metallic with black end caps
Finish Chassis: Black matte finish
