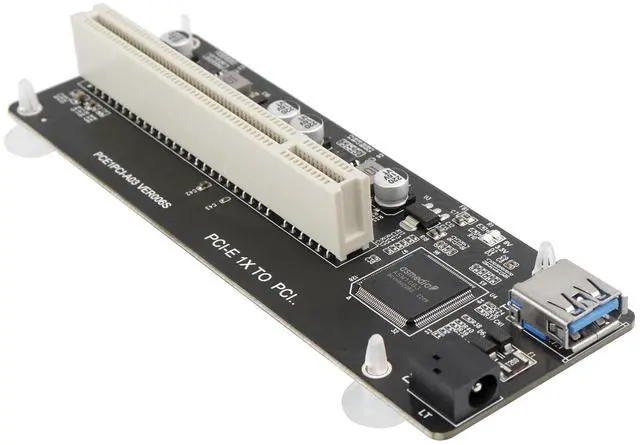

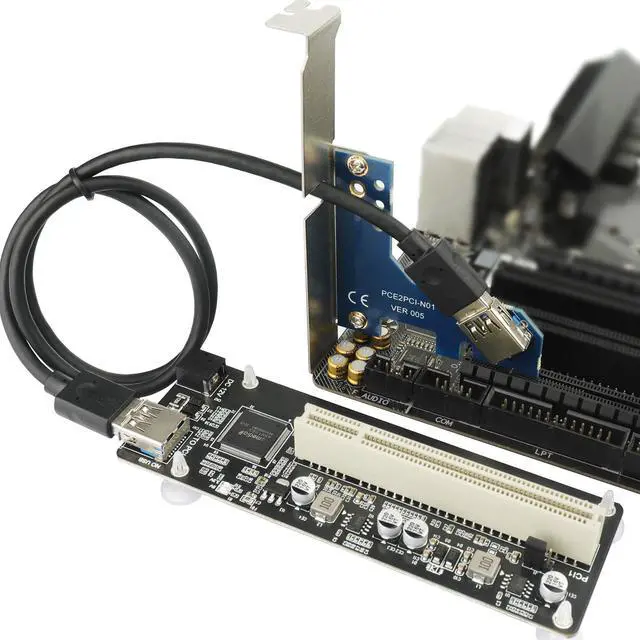

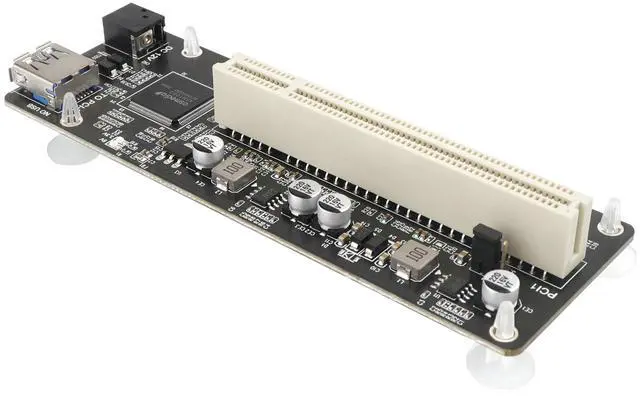

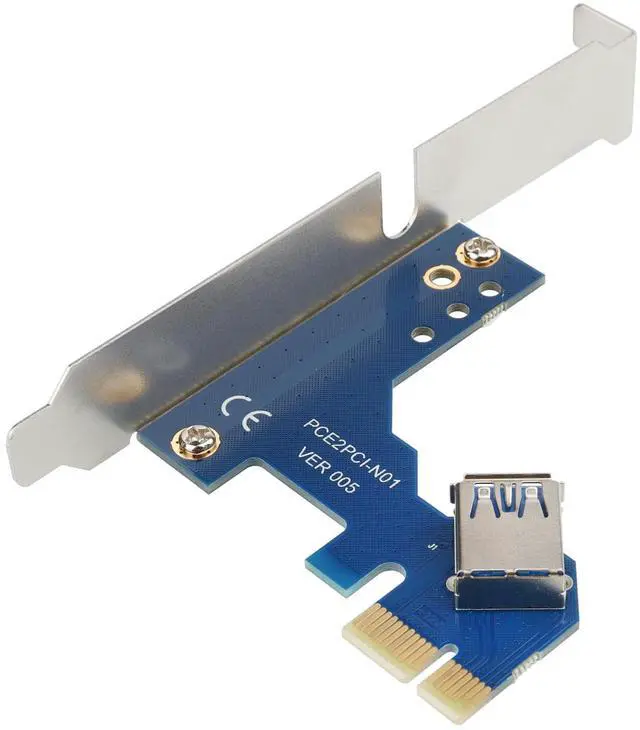

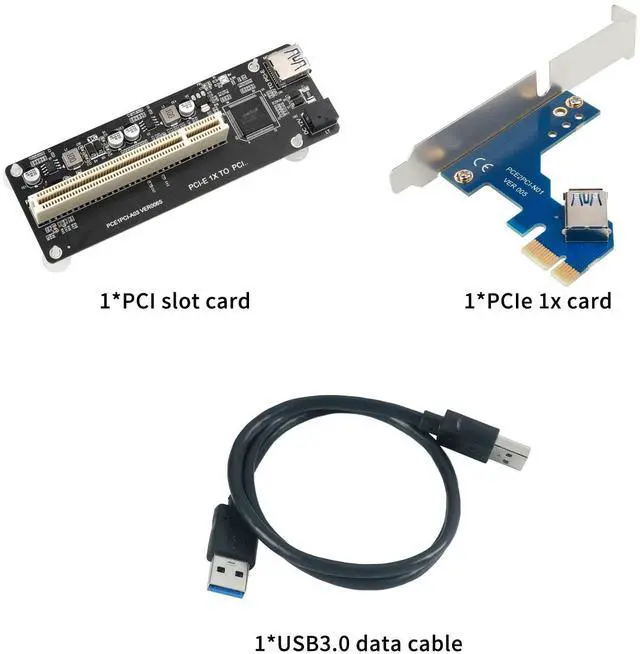

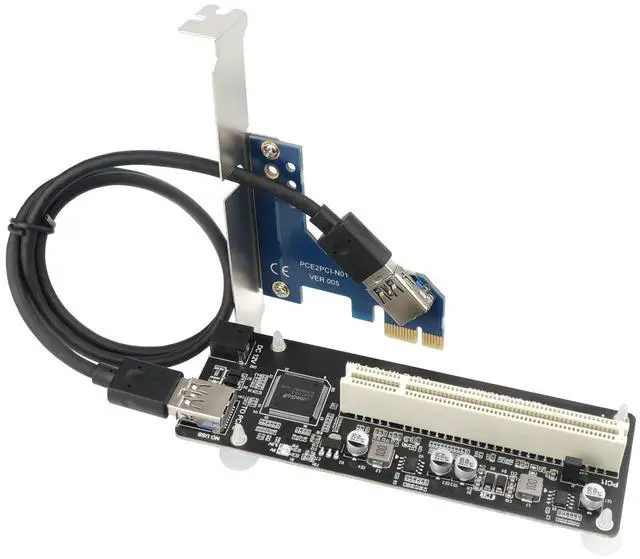

    PCIe to PCI Adapter, PCI Express x1 Converter, Extender for Desktop External Capture Sound Card Expansion, LTD18

    Be the first to review this product...
    • Precision Compatibility: Enables PCI Legacy Cards (32-bit 5V) on Modern Motherboards with PCIe x1/x4/x8/x16 Slots (Intel H61/B85/Z97 & AMD A320/B550 Chipsets Verified
    • True Plug & Play: No Drivers Required for Windows 10/8/7/XP. For Customized PCI Cards (e.g., RAID Controllers), Download ASM1083 Toolkit via QR Code on Package.
    • Industrial-Grade Stability: 72-Hour Continuous Stress Test Certified | 2oz Copper PCB & Over-Current Protection for 24/7 Capture Card Operation
    • Multi-Device Studio Solution: Connect Legacy Audio Interfaces (Focusrite Saffire/M-Audio Delta) & Capture Cards (Blackmagic DeckLink) Simultaneously via PCIe Hub Expansion
    • Low-Profile Ready: 120mm×65mm Mini PCB with Dual-Slot Bracket | Fits SFF/Micro-ATX Cases (Max GPU Clearance 180mm)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

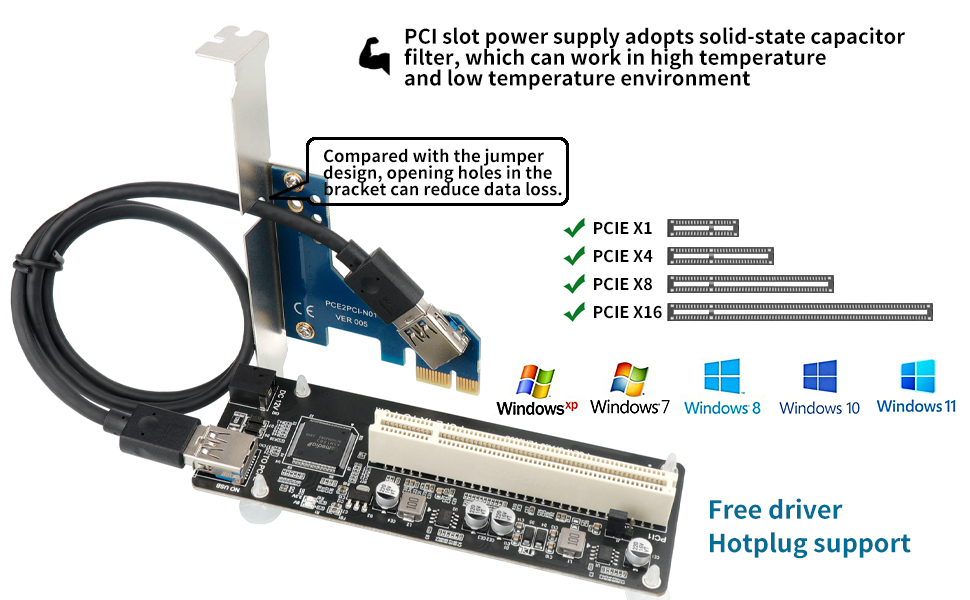

    PCI-E to PCI Slot Adapter Card

    pcie to pci adapter card

    Technical Specifications

    • Host Interface: PCIe 1.1 x1 (Backward Compatible with x4/x8/x16 Slots)
    • PCI Slot Type: 32-bit 5V PCI 2.3 (Not Compatible with 3.3V/64-bit Cards)
    • Power Supply: 4-Pin Molex Auxiliary Power Required for Cards >10W
    • ASM1083 Chipset: PCIe to PCI Bridge with 250MB/s Max Theoretical Bandwidth
    • OS Support: Windows 10/8/7/XP 32/64-bit (Linux Kernel 4.4+ via Community Drivers)

    Critical Installation GuidePower Safety: Connect ONLY the included 4-pin Molex cable to PSU. The USB port on the card is for factory programming - Do NOT plug into PC USB!BIOS Requirement: Ensure "Above 4G Decoding" & "Legacy PCI Support" are Enabled in UEFI BIOS

    PCI-E to PCI Slot Adapter Card

    pcie to pci adapter card

    Technical Specifications

    • Host Interface: PCIe 1.1 x1 (Backward Compatible with x4/x8/x16 Slots)
    • PCI Slot Type: 32-bit 5V PCI 2.3 (Not Compatible with 3.3V/64-bit Cards)
    • Power Supply: 4-Pin Molex Auxiliary Power Required for Cards >10W
    • ASM1083 Chipset: PCIe to PCI Bridge with 250MB/s Max Theoretical Bandwidth
    • OS Support: Windows 10/8/7/XP 32/64-bit (Linux Kernel 4.4+ via Community Drivers)

    Critical Installation GuidePower Safety: Connect ONLY the included 4-pin Molex cable to PSU. The USB port on the card is for factory programming - Do NOT plug into PC USB!BIOS Requirement: Ensure "Above 4G Decoding" & "Legacy PCI Support" are Enabled in UEFI BIOS

    PCIe to PCI Adapter, PCI Express x1 Converter, Extender for Desktop External Capture Sound Card Expansion, LTD18
