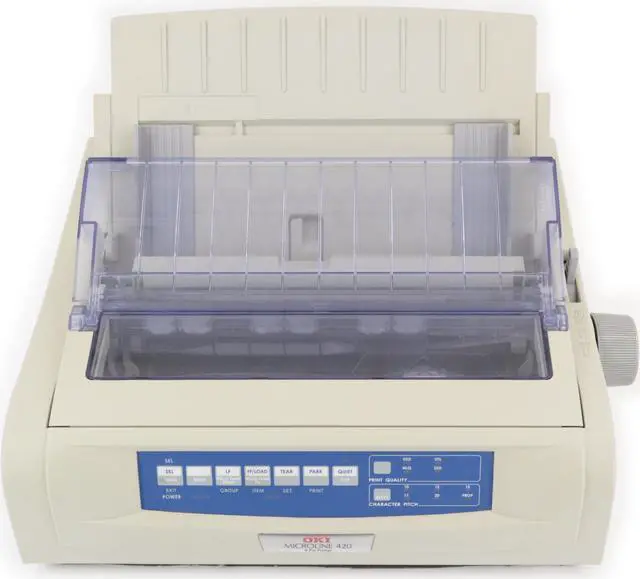

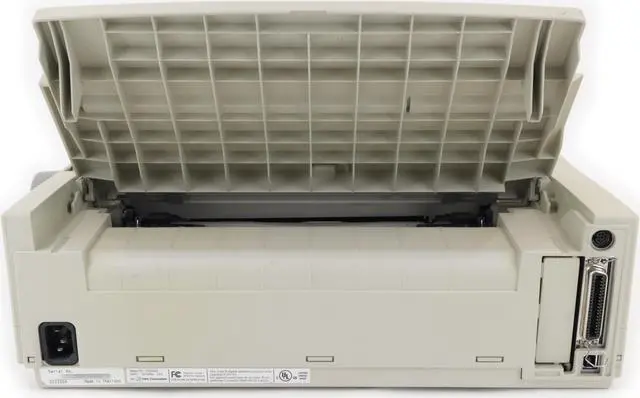

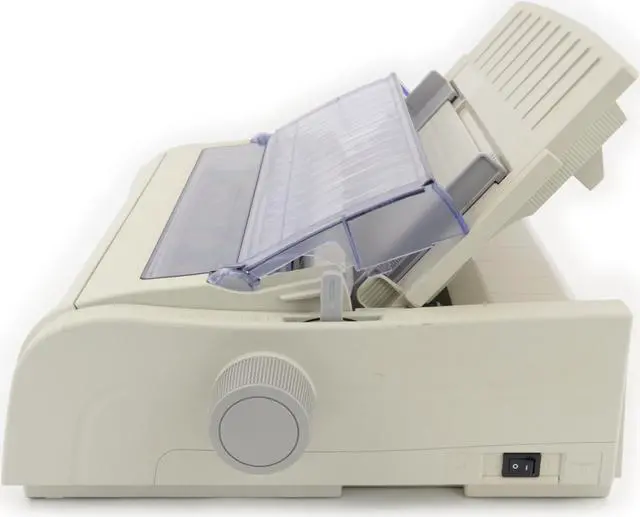

OKI Data Microline 420 9-pin Dot Matrix Printer D22200A

OKI Data Microline 420 9-pin Dot Matrix Printer D22200A

Condition: Refurbished

Compeve SKU: 336000101213

Specification:

Print Method
Impact dot matrixPrinthead
9 pins, 0.30 mm (0.0118") diameter, with thermal protection
Interfaces
Standard: Centronics, parallel, IEEE-1284 compliant USB 1.1

Optional: RS-232C
Optional: Ethernet Print Servers:
6120i 10/100 Base-T, Internal
6020e 10/100 Base-T, External
6010e 10 Base-T, ExternalReceive Buffer Size
Maximum 128K
Reliability

Ribbon Life
4 million characters, on average, 10 cpi utility
Printhead Life

400 million characters average in 10 cpi utility mode at 25% duty and 35% page density
Mean Time Between Failures (MTBF)

20,000 hours at 25% duty cycle and 35% page density
Mean Time to Repair (MTTR)

15 minutes Emulations (co-resident)
IBM Proprinter III
Epson FX
Oki MICROLINE Standard

Print Speed

Mode
Speed
(Characters per Second)
Super Speed Draft (SSD)
570 cps
High Speed Draft (HSD)
507 cps
Utility
380 cps
Near Letter Quality (NLQ)
95 cps

Characters Per Line

Setting
ML420

10 cpi
80 cpl

12 cpi
96 cpl

15 cpi
120 cpl

17.1 cpi
137 cpl

20 cpi
160 cpl

Graphics Resolution

Emulation
Density
Max. Resolution (Dots per inch)
IBM, Epson
Single
Double
Quadruple
60 x 216 dpi
120 x 216 dpi
240 x 216 cpi
Oki MICROLINE
Single
Double
Quadruple
72 x 72 dpi
144 x 144 dpi
288 x 144 dpi

Resident Fonts

Print Quality
Available Fonts
Near Letter Quality
Courier, Gothic
Utility
Gothic
High Speed Draft
Gothic
Super Speed Draft
Gothic

Bar Codes
Code 39
UPC A, UPC E
EAN 8, EAN 13
Interleaved 2 of 5
Code 128
Postnet

Paper Thickness: Tractor Feed

Rear Feed: 0.014" (0.36 mm) maximum
Bottom Feed: 0.017" (0.44 mm) max.
Requires optional push or pull tractor.

Paper Specifications:

ML420

Single (Cut Sheets)
Feed: Top Only
Weight: 14 to 24 lb. US Bond (52.6 to 90 g/m2)
Width Range: 7.2" to 8.5" (183 to 216 mm)

Single-part, continuous forms
Feed: Rear, Bottom*
Weight: 12 to 24 lb. US Bond (45 to 90 g/m2)
Width Range: 3" to 10" (76 to 254 mm)

Carbonless continuous forms (orig. + 4 copies)
Feed: Rear, Bottom*
Weight: 9 to 11 lb.
Width Range: 3" to 10" (76 to 254 mm)

Interleaf continuous forms (orig. + 4 copies)
Feed: Rear, Bottom*
Weight: 10 to 12 lb. paper, 9 lb carbon
Width Range: 3 to 10" (76 to 254 mm)

Labels
Feed: Bottom* Only
Weight: Not applicable
Width Range: 3" to 10" (76 to 254 mm)

Envelopes, single feed
Feed: Top Only
Weight: Max. 24 lb.
Width Range: 6.5" to 9.5" (165 to 241 mm)

Envelopes, continuous feed, non-overlap type
Feed: Bottom* Only
Weight: Max. 24 lb.
Width Range: 6.5" to 9.5" (165 to 241 mm)

Card Stock
Feed: Bottom*
Weight: Max. 100 lb. Index (180 g/m2)
Width Range: Not applicable

* Bottom feed requires optional pull or push tractor

Environmental Requirements

Temperature
Operating: 41 to 95°F (5 to 36°C)
Storage: 14 to 122°F (-10 to 50°C)

Humidity
Operating: 20 to 80% RH
Storage: 5 to 95% RH

Electrical Requirements
120 volts ac, (+6%, -15%)
50 or 60 Hz (±2%)
58 W Typical, 10 W idle
230 ac, (+15%, -14 %)
50 or 60 Hz (±2%)
58 W Typical, 10 W idle

Physical Specifications

Note: Height dimensions do not include the acoustic cover.

ML420
Size (WxDxH): 17.1" x 16.1" x 6"
(434 x 409 x 153 mm)
Weight: 16.7 lbs. (7.6 kg)
