Specifications
GPUNVIDIA GeForce RTX 5090 GPU
CUDA cores21760
Video Memory32GB GDDR7
Memory Bus512-bit
Engine Clock2467 MHz
Memory Clock28 Gbps
PCI ExpressPCI Express 5.0 x16

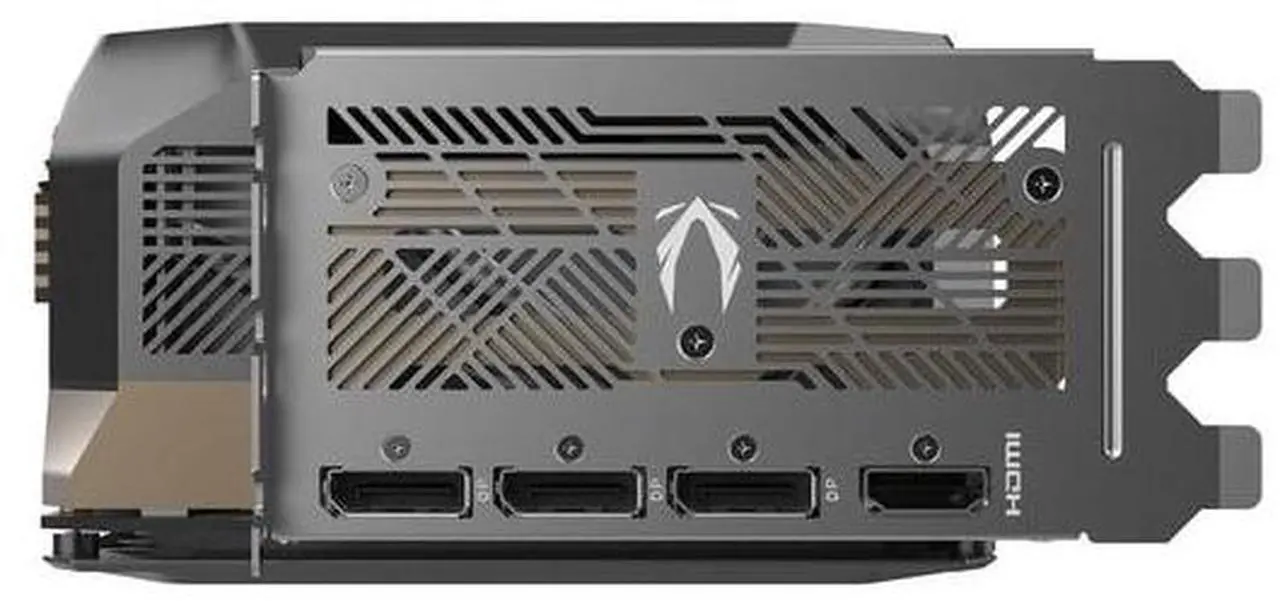

Display Outputs3 x DisplayPort 2.1 b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1 b Specification)
HDCP Support 2.3
Multi Display CapabilityQuad Display
Recommended Power Supply1000W
Power Consumption600W *High power consumption, please carefully read your PSU manual before installation.
Power Input1 x 12v-2x6 power input
DirectXMicrosoft DirectX® 12 Ultimate
OpenGL 4.6
CoolingIceStorm 3.0
Slot Size 3.5
SLINo
Supported OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Card Length 332.1 mm x 137.5 mm x 69.6 mm / 13.1" x 5.4" x 2.7"

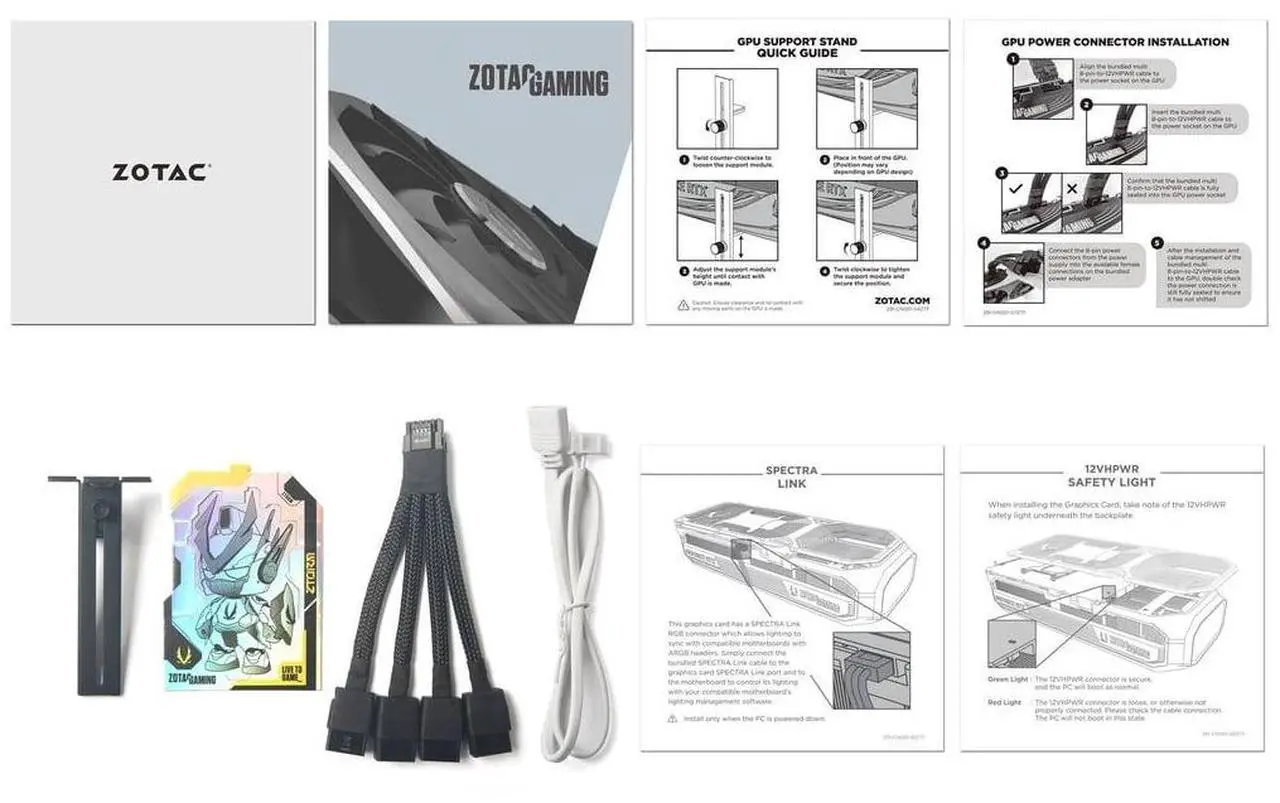

AccessoriesUser Manual
4 x 8-pin-to-16-pin cable
SPECTRA LINK cable
GPU Support Stand
