BitFenix Formula 80 Plus Gold Standard ATX PSU 750W BF-750G, BP-FM750ULAG-7R

Worlds Best Performance With 80+ Gold Efficiency And Up To 92% Efficiency At Typical Loading. Formula Gold Series boasts of extreme quality and worlds best performance with 80+ Gold efficiency and up to 92% efficiency at typical loading. The new BitFenix Formula Gold power supply line up comes with a wide range of power options starting with 450W all the way up to 750W incrementing by 100W. Therefore, BitFenix Formula Gold is perfect for everything from energy efficient gaming PCs to Dual GPU system or heavily overclocked Platforms.

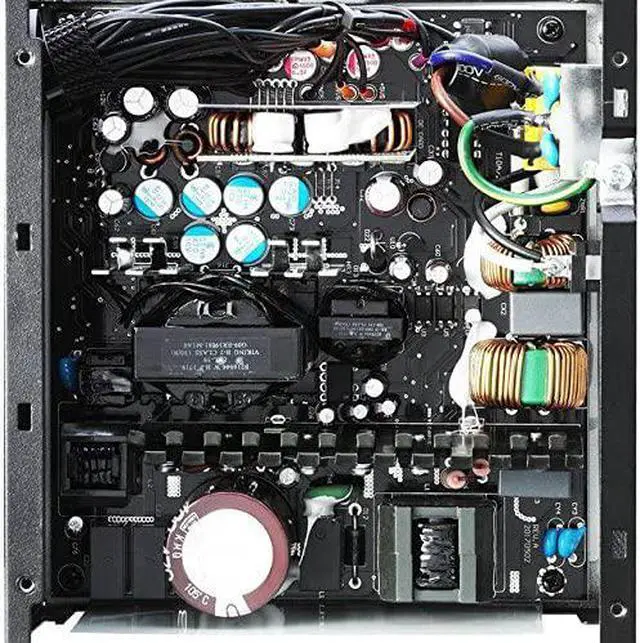

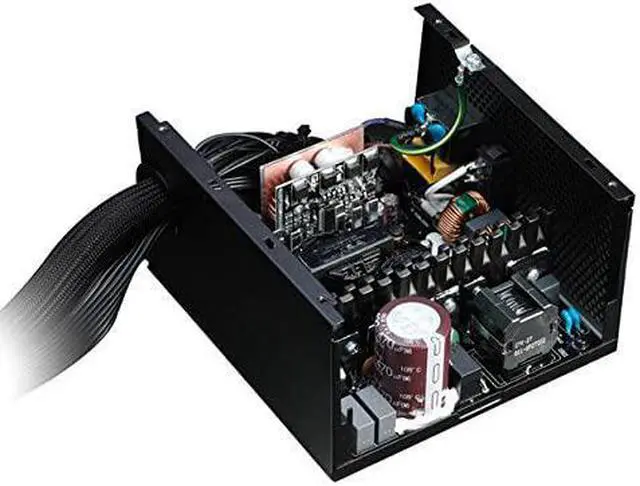

EfficientPerformance Rated At A Power Factor Of 0.99 With An Efficiency Of Up To 90+ The Formula Gold is an extremely high-efficient power supply series with a 80+ Gold Efficiency Certification. With a custom 2oz pure copper and double layer PCB paired with high quality components, the Formula gold Series is rated at a Power Factor of 0.99 with an efficiency of up to 90+ at a 40% to 60% load, so it can achieve the performance of 80Plus Gold requirements. The Formula Gold Series was designed to provide an extremely stable power output with most efficient energy usage.
100% Industrial Japanese Capacitors BitFenix Formula Gold power supplies uses 100% Japanese Industrial capacitors ensuring tightest DC voltage regulation within ± 2% and longest component life. Unlike standard Japanese Capacitors which are rated to work at a maximum temperature of 85°C, the Japanese Industrial capacitors available in Formula Gold can function at a maximum temperature of 105°C.

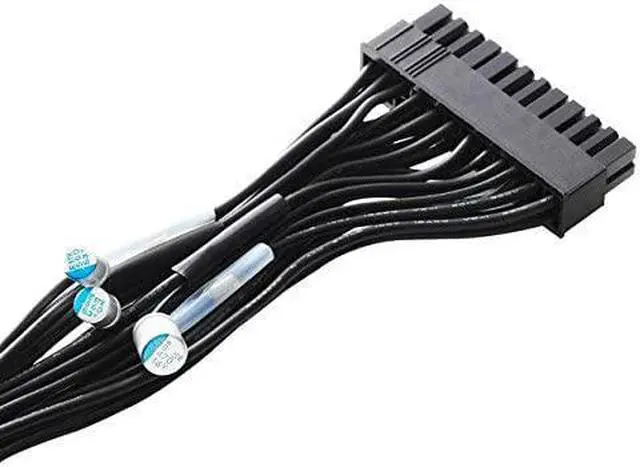

Special Designed Cable Prevents Power Drop For High Durability And Performance The special designed flat ribbon-style cable and feature electronic components to stabilize the power delivered to the components increasing the duability as well as overclocking potential of the components. This feature reduces the power drop caused by unknowing interference noise around system environment and makes sure the components get enough power to operate at optimum levels.

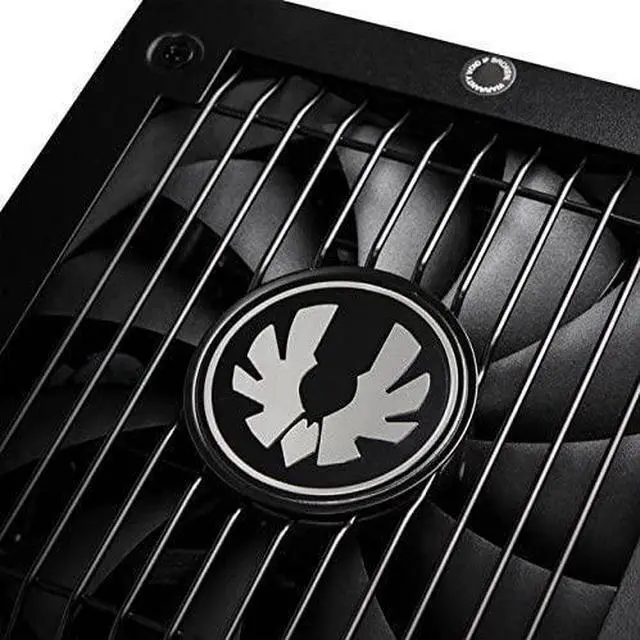

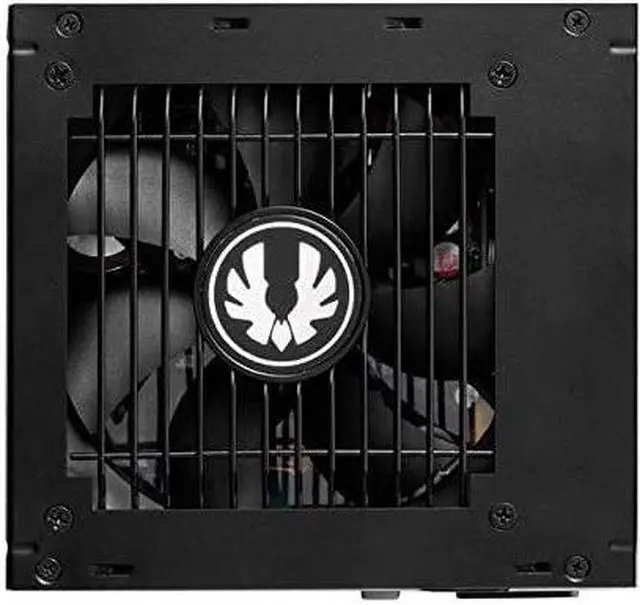

Silent Performance With FDB Industrial Quality Fan The Formula Gold power supplies provide stable currents, even at high loads, all while keeping heat levels low due to the high efficiency layout. To keep the performance even more silent, all Formula Gold power supplies are equipped with ultra-low noise level & high life expectancy fans. Optimized with an intelligent fan control curve, the 120mm FDB fans start operating at a voltage as low as 3V with 500rpm ± 10%, keeping the noise levels under 15-18dBA at a 60% load in 25°C surroundings. BitFenix silence engineering has improved when the engineer is using the low starting voltage fan and Fluid Dynamic Bearing Fan. Even the PSU is using a 120mm fan, but the performance is better than some 140mm fan in the market. Therefore, Formula Gold series PSU has got the approval of Cybenetics and had LAMBDA A++ certified.
Dedicated Multi +12V Rail As BitFenix Whisper M, a dedicated multi-rail design together with an advance voltage switching circuit from +12V to minor rail provides the best stability and output quality. The main multiple +12V rails on all BitFenix Formula Gold models are dedicated as Motherboard + Peripherals, CPU, VGA1 and VGA2 (450W and 550W models only come with GPU1). All of these rails have dedicated Over Current Protection (OCP) circuits to keep your High-End components safe all the time.
Up to 650mm And 16AWG Fixed Flat cable Performance is not the only focus of BitFenix Formula Gold, built to a simplistic yet elegant design BitFenix Formula Gold uses fixed with flat ribbon-style cables. These cables are up to 16AWG thick output DC cables to provide high efficiency and tightest voltage regulation.
Industrial Level Protection BitFenix Formula Gold power supplies come with numerous protection mechanisms to protect both the power supply as well as components from poor power delivery.
Over Current Protection (OCP)

Over Voltage Protection (OVP)

Under Voltage Protection
