Intel Specifications
ATX12V
PFC Type
Active PFC
ATX Power Supply Standard
ATX 3.1
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Multiple Protections
OPP/OVP/UVP/SCP/OCP/OTP
Eco-Friendly Certifications
ROHS
AC Input Voltage
100-240VAC
Cooling Solution
ROG Cooling Solution
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
30A 25A 100A 0.3A 3A
Combined Load
125W 125W 1200W 3.6W 15W
Total Power
1200W

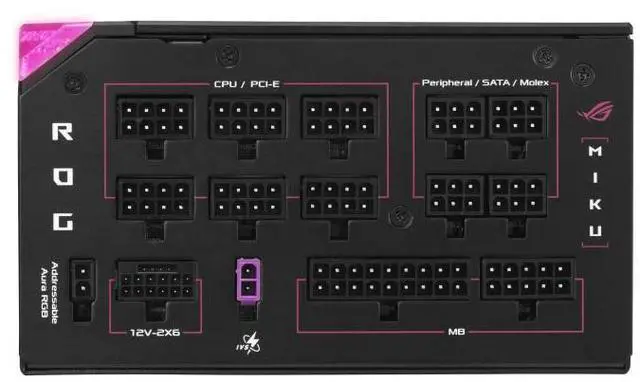

Module Output Connector
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
Aura Sync Lighting
ARGB
Cybenetics Noise Level Certification
A++
0dB Technology
Yes. When the power supply (PSU) is under a certain load, the fans will completely shut down.

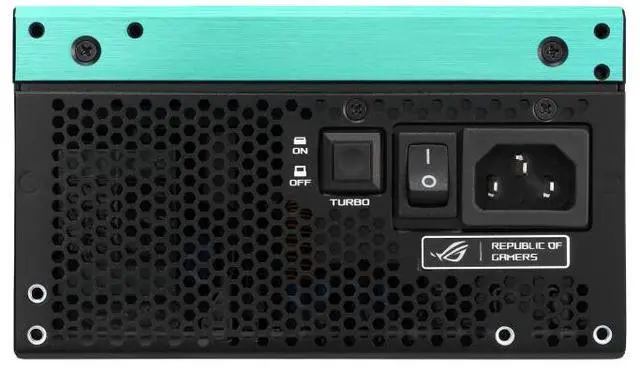

0dB Fan Button
Yes. When the button is on, the fans will only spin when the system reaches a certain load. When the button is off, the fans will spin continuously at all load levels.
