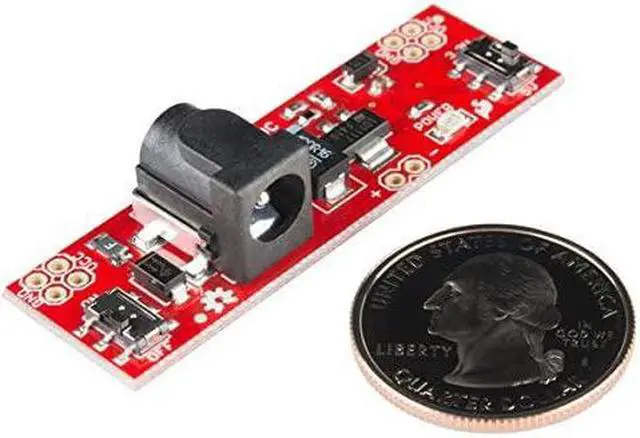

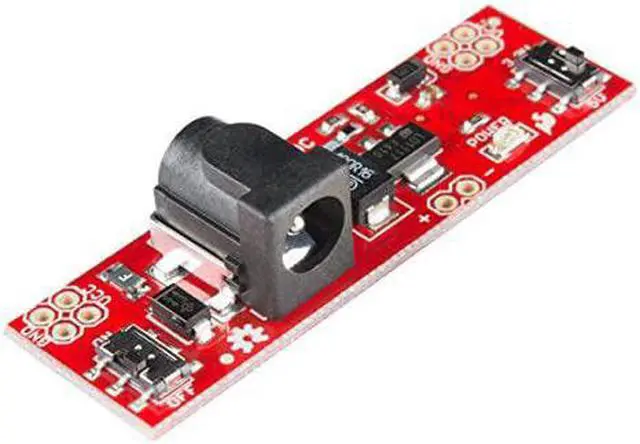

SparkFun Breadboard Power Supply Stick - 5V/3.3V
- This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage.
- All headers are 0.1" pitch for simple insertion into a breadboard.

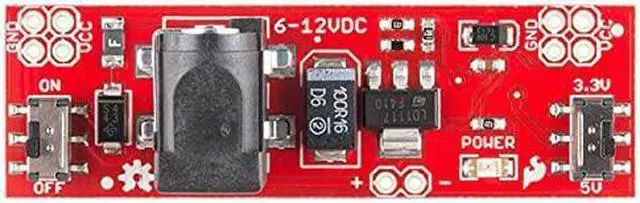

- Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -.
- Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).
- Skill Level: Assembled and Tested
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description: This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard.
Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).
The two sets of four GND and VCC holes are spaced such that when connected to our Basic Breadboard both power busses will be powered.
Note: Headers are not supplied. You will need to supply your own headers to connect this board to a breadboard. Check below for some breakaway header strips.
Features:
6-12V input voltage via barrel jack or 2-pin header
3.3V or 5V regulated output voltage
800mA Operating Current
ON/OFF switch
Output voltage select switch
Power status LED
PTC fuse protected power
5.5x2.1mm center positive barrel jack
2.15x0.65"
Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).
The two sets of four GND and VCC holes are spaced such that when connected to our Basic Breadboard both power busses will be powered.
Note: Headers are not supplied. You will need to supply your own headers to connect this board to a breadboard. Check below for some breakaway header strips.
Features:
6-12V input voltage via barrel jack or 2-pin header
3.3V or 5V regulated output voltage
800mA Operating Current
ON/OFF switch
Output voltage select switch
Power status LED
PTC fuse protected power
5.5x2.1mm center positive barrel jack
2.15x0.65"
